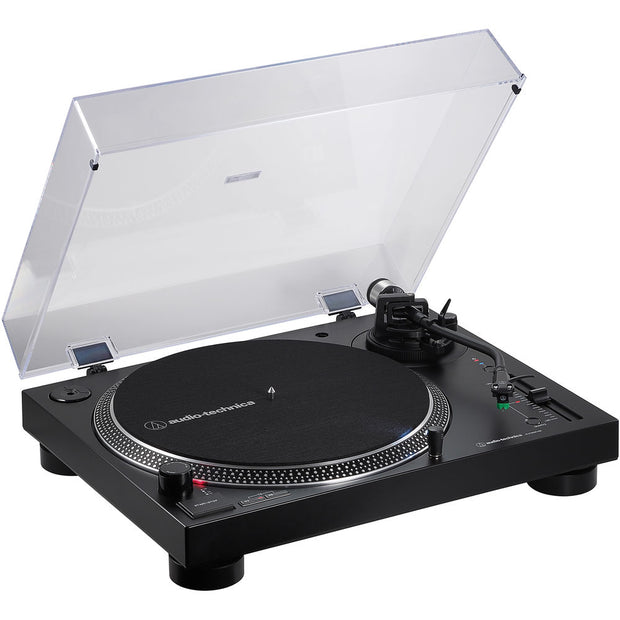

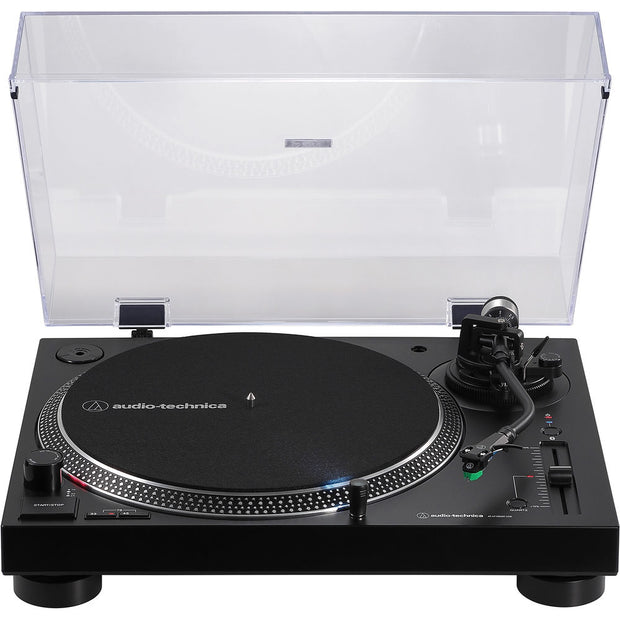

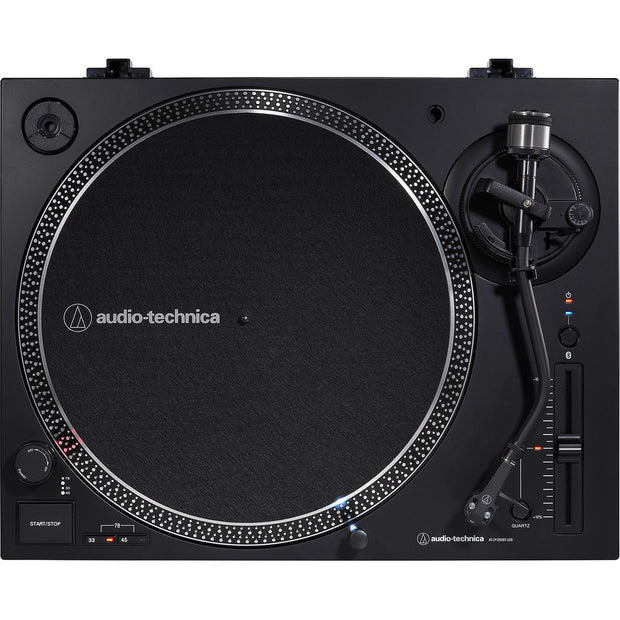

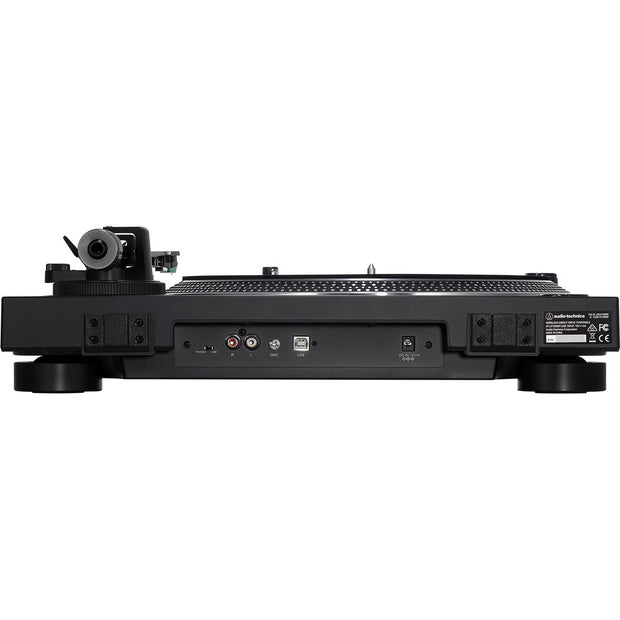

Audio-Technica Consumer AT-LP120XBT-USB Stereo Turntable with USB and Bluetooth - Black

Overview of Audio-Technica Consumer AT-LP120XBT-USB Stereo Turntable with USB and Bluetooth - Black

This fully manual turntable is modeled after the AT-LP120XUSB, but adds the convenience of Bluetooth® wireless connectivity to the existing analog and USB outputs.

Featuring a specially designed DC servo direct-drive motor and adjustable dynamic anti-skate control, the AT-LP120XBT-USB plays 33-1/3, 45, and 78 RPM records and outputs the high-fidelity audio to the device of your choice. Use the included RCA output cable along with the built-in selectable phono preamp to connect to your home stereo or powered speakers. Use the USB cable to connect to your computer and then download the free Mac- and PC-compatible Audacity recording software, or software of your choice, to start converting your records to digital audio files. Or use the Bluetooth wireless technology to pair the turntable with wireless speakers, headphones or other devices, including those that support the high-quality Qualcomm® aptX™ audio codec.

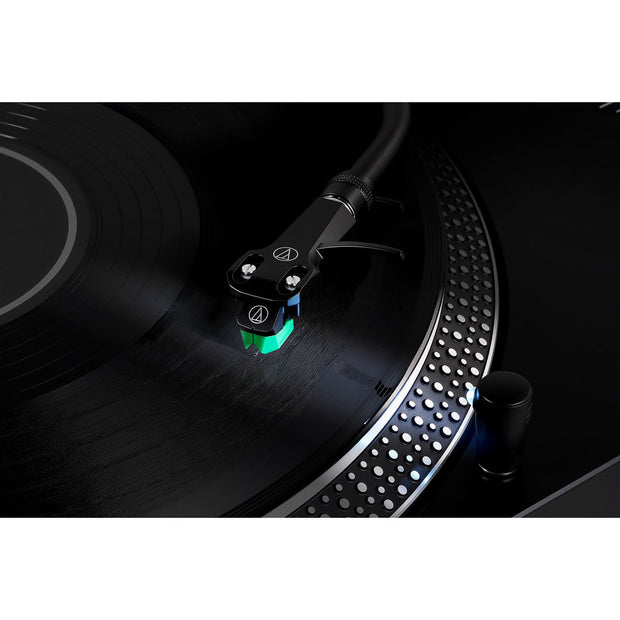

The turntable also features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"- mount headshell with an AT-VM95E Dual Moving Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E. The cartridge comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional professional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% adjustment range; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Specifications:

Type: 3-speed, fully manual operation

Motor: DC servo motor

Drive Method: Direct drive

Speeds: 33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter: Die-cast aluminum

Starting Torque: >1.0 kgf.cm

Braking System: Electronic brake

Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)

Signal-to-Noise Ratio: >50 dB

Output Level:

• Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized

USB Function:

• A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable
• Computer interface – USB 2.0 Compliant Windows 7 or above, or MAC OS X or above

Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max

Power Consumption: 2.75 W

Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H

Weight: 8 kg (17.6 lbs.), without dust cover

Accessories Included:

• AT-VM95E phono cartridge
• AT-HS6 headshell
• 1.9 m (6.2') USB cable
• dual RCA (male) to dual RCA (male) cable with ground wire
• counterweight
• felt mat
• dust cover
• 45 RPM adapter
• plug-type stylus target light

Tonearm Type: Balanced S-shaped tonearm with detachable headshell

Effective Arm Length: 230.5 mm

Overhang: 16 mm

Tracking Error Angle: Less than 3 degrees

Applicable Cartridge Weight: 3.5-8.5 g

Anti-skating Range: 0-4 g

Replacement Stylus: AT-VMN95E

Communication System: Bluetooth Version 5.0

Maximum Communication Range: Line of sight - approx. 10 m (33')

Compatible Bluetooth Profile: A2DP

Support Codec: Qualcomm® aptX™ Adaptive audio, Qualcomm® aptX™ audio, SBC
