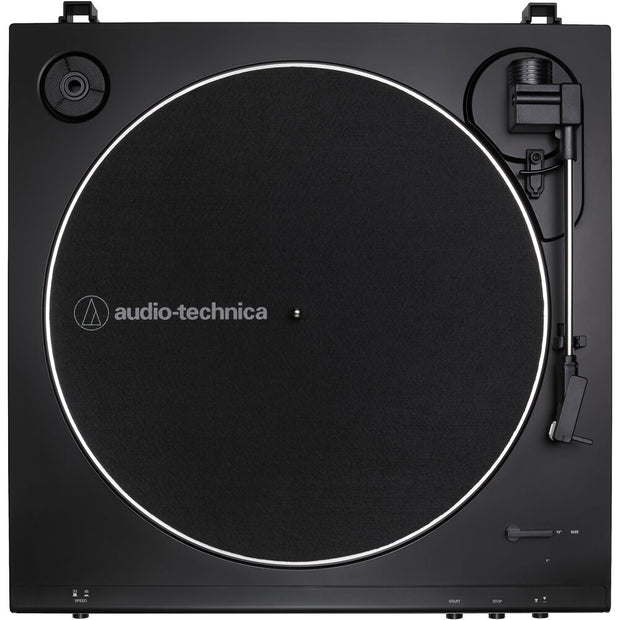

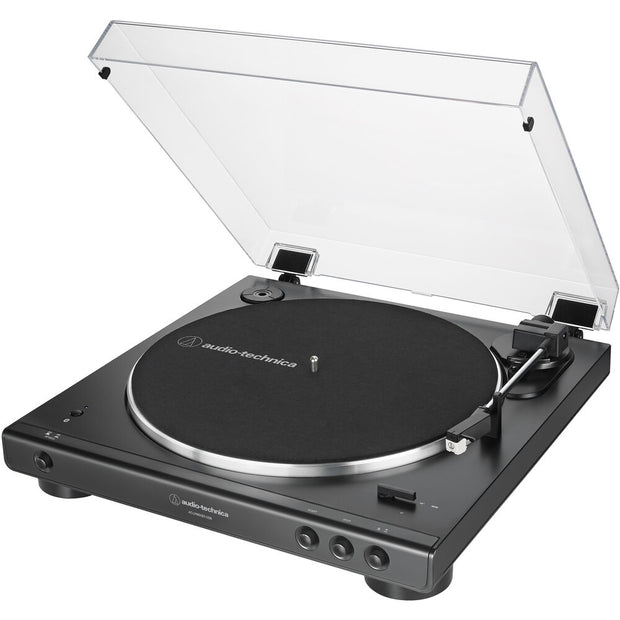

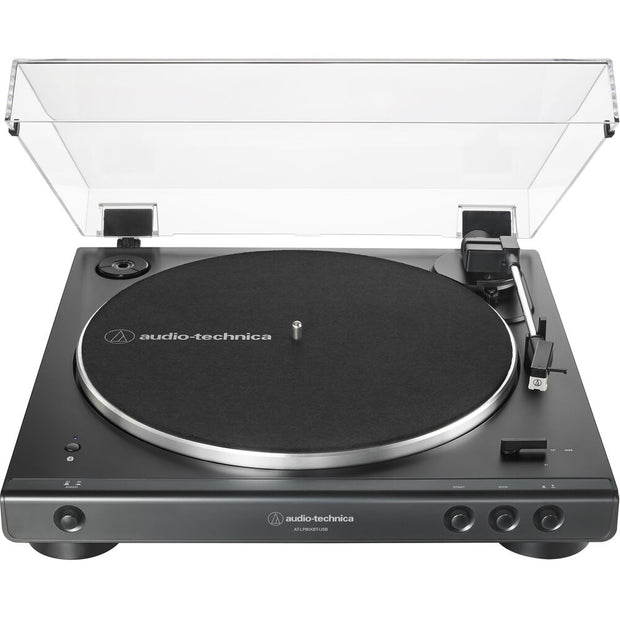

Overview of Audio-Technica AT-LP60XBT-USB-BK Fully Automatic Two-Speed Stereo Turntable with Bluetooth & USB - Black
Cut the cord, keep the vinyl. The AT-LP60XBT-USB gives you all the great features of the redesigned AT-LP60X fully automatic belt-drive stereo turntable with the added convenience of Bluetooth® wireless and USB connectivity.
The turntable pairs with speakers, headphones or other wireless devices. With its CSR BT chipset, the turntable is even able to connect to devices that support the Qualcomm® aptX™ audio codec, which offers much-improved sound quality over the standard SBC codec.
With the AT-LP60XBT-USB fully automatic belt-drive turntable, you can also experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XBT-USB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. In addition to the USB output, the turntable is also equipped with a detachable RCA output cable (3.5 mm male to dual RCA male) and a built-in switchable phono preamp so you can connect directly to your home stereo, powered speakers, computer, and other components, whether they have a dedicated phono input or not.
This updated version of the AT-LP60 family features a redesigned tonearm base and headshell to improve tracking and reduce resonance. A Dual Moving Magnet™ cartridge with replaceable stylus – a hallmark of Auido-Technica's analog heritage – is integrated into the headshell for assured performance and ease of setup.
The AT-LP60XBT-USB comes with a 45 RPM adapter, a removable hinged dust cover, and an AC adapter, which reduces noise by moving the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.
Specifications:
Type: Belt drive turntable, fully automatic
Motor: DC servo-controlled
Speeds: 33-1/3 RPM, 45 RPM
Turntable Platter: Aluminum
Wow and Flutter: < 0.25% (WTD) @ 3 kHz
Signal-to-Noise Ratio: 50 dB (DIN-B)
Output Level:
- Preamp "PHONO": 2.5 mV nominal at 1 kHz, 5 cm/sec
- Preamp "LINE": 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Function: A/D, D/A: 16 bit, 44.1 kHz or 48 kHz selectable ; USB 2.0-compliant Windows 8.1 or above, or Mac OS X or above
Power Supply Requirements: 100 to 240 V, 50/60 Hz, 0.6 A Max.
Power Consumption: 1.5 W
Dimensions: 359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D
Weight: 2.6 kg (5.73 lbs.)

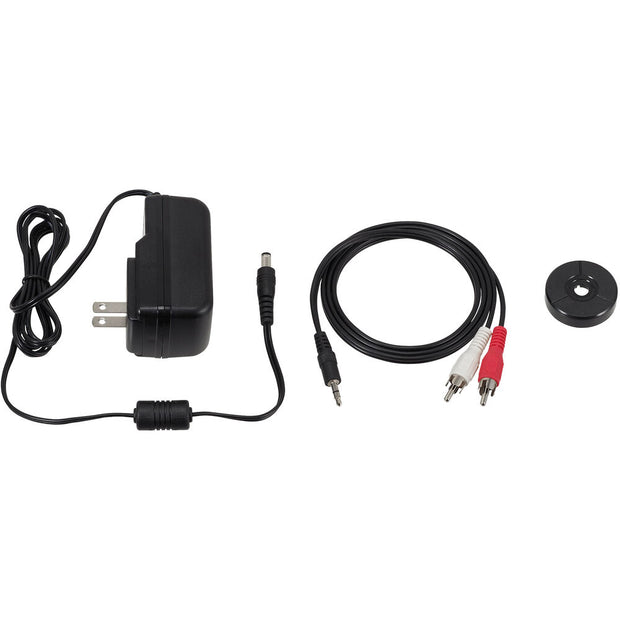

Accessories Included:
- Dust cover
- Felt mat
- Platter (with drive belt)
- 45 RPM adapter
- RCA audio cable (approx. 1.2 m (3.9’))

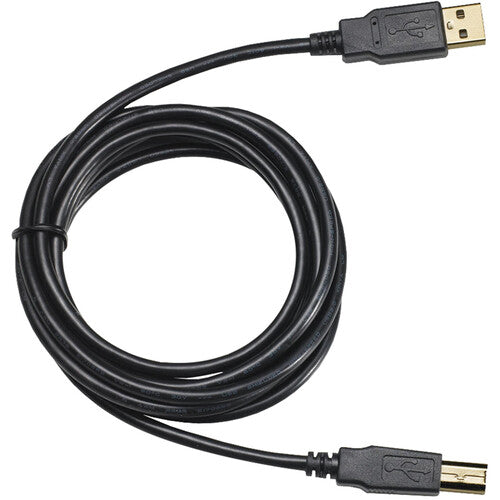

- USB cable (approx. 1.9 m (6.2'))
- AC adapter (approx. 1.5 m (4.9’))
AC Adapter: 12 V, 0.5 A
Replacement Stylus: ATN3600L
Communication System: Bluetooth Version 5.0
Maximum RF Output: 10 mW EIRP
Maximum Communication Range: Line of sight - approx. 10 m (33')
Modulation Method: FHSS
Compatible Bluetooth Profile: A2DP
Support Codec: SBC, Qualcomm® aptX™ audio
