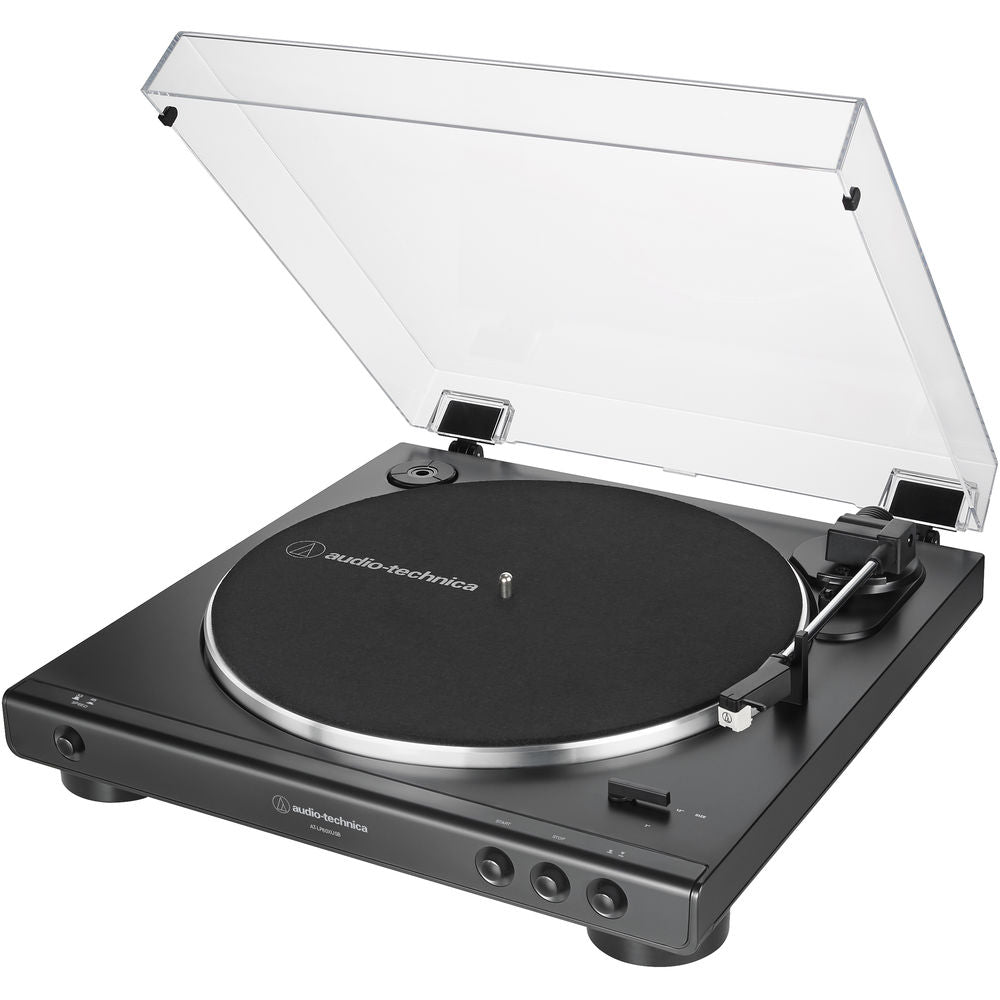

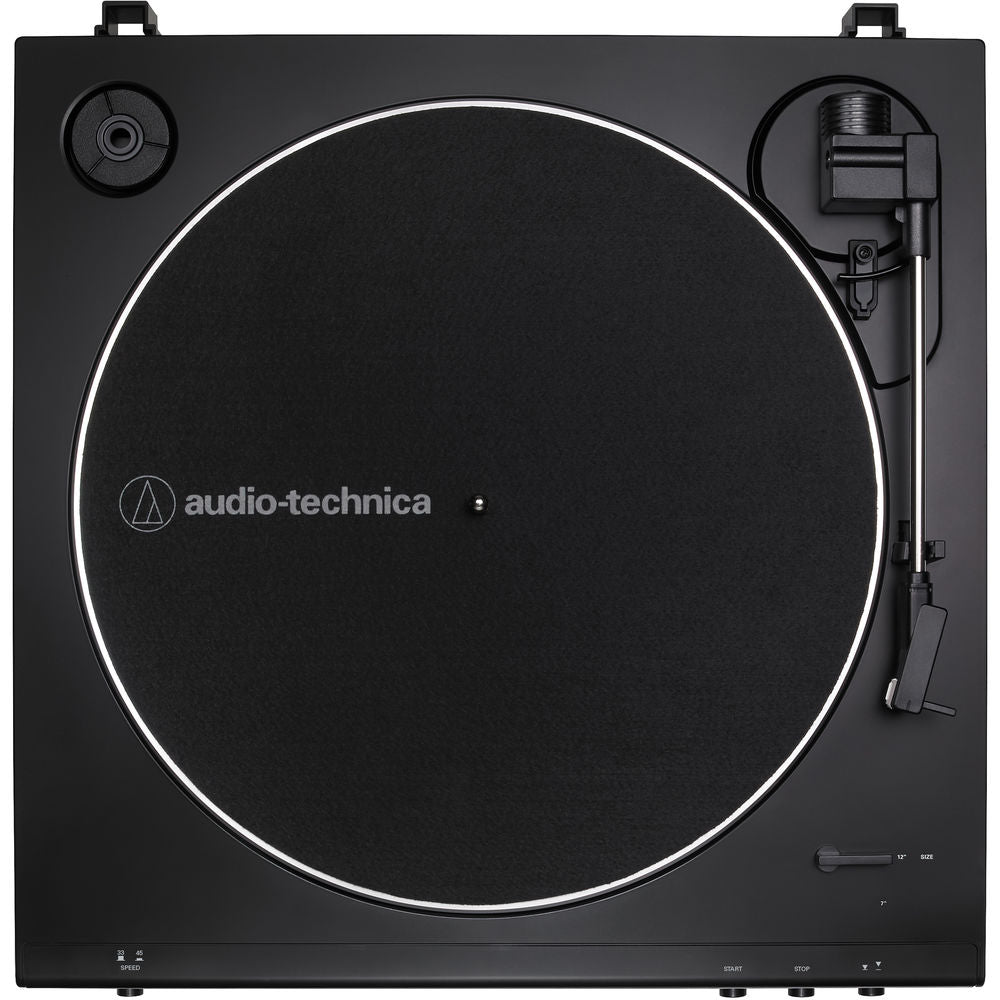

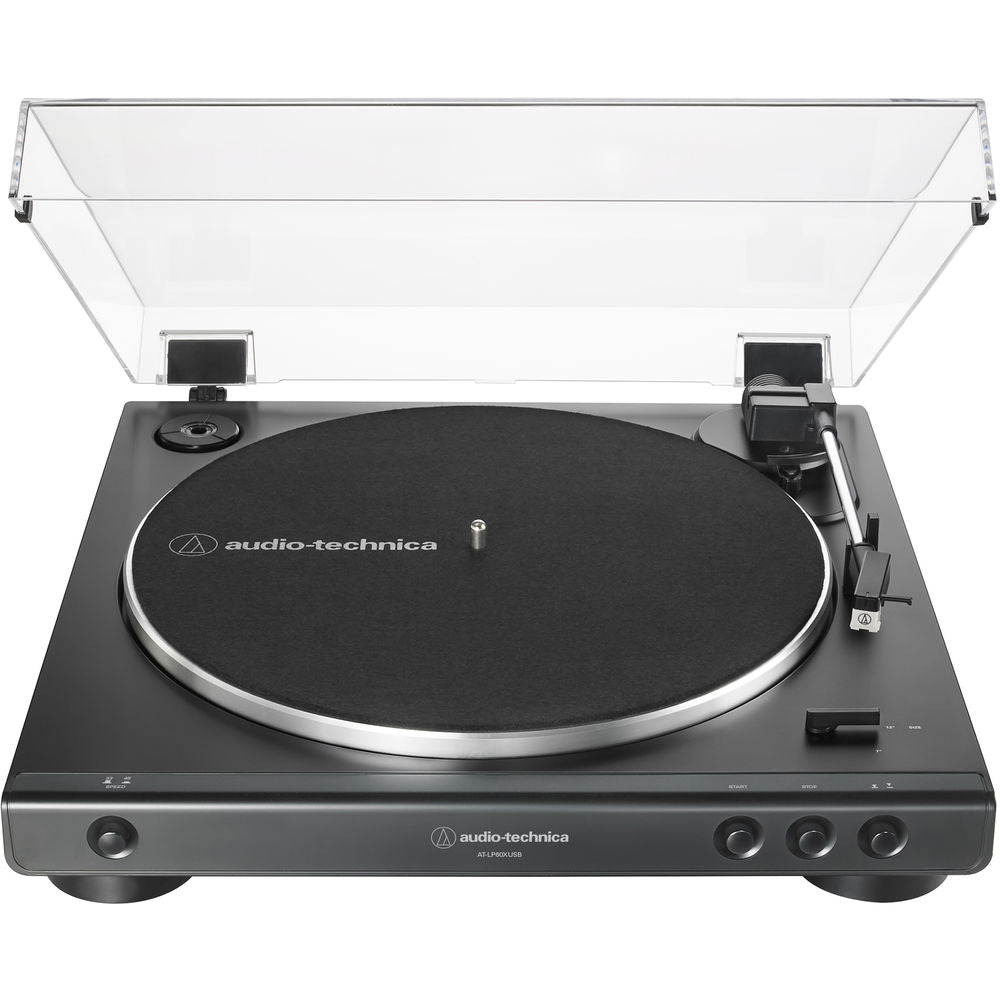

Audio-Technica Consumer AT-LP60XUSB Stereo Turntable - Black

With the AT-LP60XUSB fully automatic belt-drive turntable you can experience your vinyl’s high-fidelity audio directly or convert it to digital. The AT-LP60XUSB plays both 33-1/3 and 45 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. In addition to the USB output, the turntable is also equipped with a detachable RCA output cable (3.5 mm male to dual RCA male) and a built-in switchable phono preamp so you can connect directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.

This updated version of the AT-LP60-USB features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.

Specifications:

Type: Belt drive turntable, fully automatic

Motor: DC servo-controlled

Drive Method: Belt-drive

Speeds: 33-1/3 RPM, 45 RPM

Turntable Platter: Aluminum

Wow and Flutter: Less than 0.25% (WTD) @ 3 kHz

Signal-to-Noise Ratio: >50 dB (DIN-B)

Output Level:

• Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized

USB operation system requirements: PC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above

Power Supply Requirements: 100 to 240 V, 50/60 Hz, 0.6 A Max.

Dimensions: 359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D

Weight: 2.6 kg (5.73 lbs)

Accessories Included:

• Removable hinged dust cover
• Felt mat
• Platter (with drive belt)
• 45 RPM adapter
• RCA audio cable (approx. 1.2 m (3.9'))
• USB cable (approx. 1.9 m (6.2'))
• AC adapter (approx. 1.5 m (4.9'))

Replacement Stylus: ATN3600LC

USB Function: A/D, D/A: 16 bit 44.1 kHz or 48 kHz USB selectable

AC adapter: 12 V, 2 A
