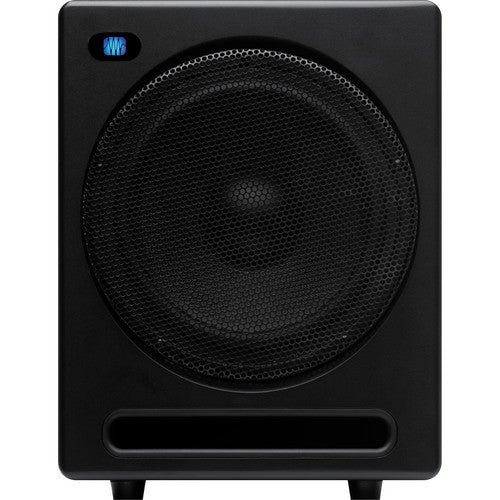

PreSonus Temblor T10 Active 10'' Studio Subwoofer

Overview of PreSonus Temblor T10 Active 10'' Studio Subwoofer

Powerful and musical, Temblor® T10 active, front-firing subwoofers are designed to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot. This ensures that Temblor-series subwoofers complement full-range monitors without overshadowing them, naturally extending the reach of your full-range system’s low end so that you can produce your best mix from top to bottom.

The Temblor T10’s glass-composite low-frequency driver delivers tight and responsive bass, thanks to its lightweight and rigid cone. This design also provides lower distortion than other materials, ensuring that the sub-bass reproduction in your monitoring system is as coherent and clear as your full-range monitors.

Temblor-series subwoofers make integrating a subwoofer into your monitoring setup easy so you can create the flattest possible response. The Temblor T10 provides a continuously variable lowpass filter (50 Hz to 130 Hz), allowing you to create a seamless crossover transition between your full-range studio monitors and subwoofer for the most accurate listening environment possible.

Features:

• Main components:
  • 10-inch, front-firing, glass-composite low-frequency transducer
  • Front-firing, bass-reflex acoustic port
• Controls and filters
  • Input gain control (-30 dB to +6 dB, continuously variable)
  • Continuously variable lowpass filter (50 Hz to 130 Hz)
  • Built-in crossover
  • Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
  • Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
  • Polarity invert
  • Ground-lift switch
• Power and safety
  • 250 watt, Class AB amplification
  • Internal damping and heat sink
  • Integrated rubber feet for stable placement
• Inputs and outputs
  • Left and right, balanced XLR and ¼” TRS and unbalanced RCA main inputs
  • Left and right balanced XLR and ¼” TRS outputs
  • XLR subwoofer output for connecting a second Temblor® T10

Specifications:

• Inputs: 2- Balanced XLR, 2- Balanced ¼” TRS, 2- Unbalanced RCA
• Outputs: 2- Balanced XLR (full range with 80 Hz HPF option), 2- Balanced ¼” TRS (full range with 80 Hz HPF option), 1- Balanced XLR (Sub Out)
• Performance:
  • Frequency Response: 20 Hz – 200 Hz
  • Low Pass Filter Frequency: 50 – 130 Hz (variable)
  • Signal-to-Noise Ratio: >98 dB (A weighted)
  • THD: 0.019% @ power <160W
  • Amplifier Power: 250W peak, 170W RMS
  • Power Consumption: 230W
  • Amplifier Type: Class AB
  • Peak SPL at 1m: 113 dB
  • Woofer: 10” glass-composite, front-firing
  • Acoustic Port: Front-firing bass reflex
• User Controls:
  • Input Gain Range: -30 to +6 dB
  • Polarity Switch: 0° or 180°
  • Low Pass Filter Control: 50 Hz to 130 Hz
  • Ground Lift Switch: On/Off
  • High Pass Filter Switch: On/Off
  • Bypass FootswitchOn/Off
• Protection:
  • RF interference
  • Output-current limiting
  • Over-temperature
  • Turn-on/off transient
  • Subsonic filter
  • External mains fuse
• Power: 100-120V ~50/60 Hz or 220-240V ~50/60 Hz
• Cabinet: Vinyl-laminated MDF
• Physical:
  • Width: 12.6” (320 mm)
  • Depth: 15.75” (400 mm)
  • Height: 15.75” (400 mm)
  • Weight: 39.46 lbs (17.9 kg)
