Rane Performer

Overview of Rane Performer

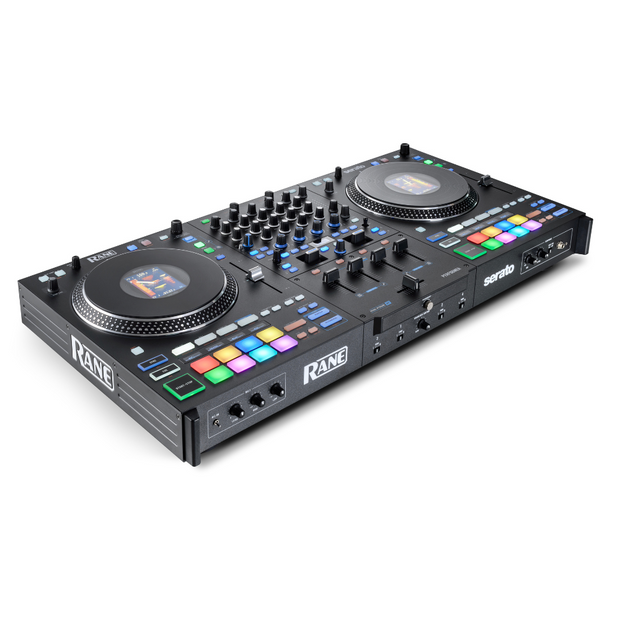

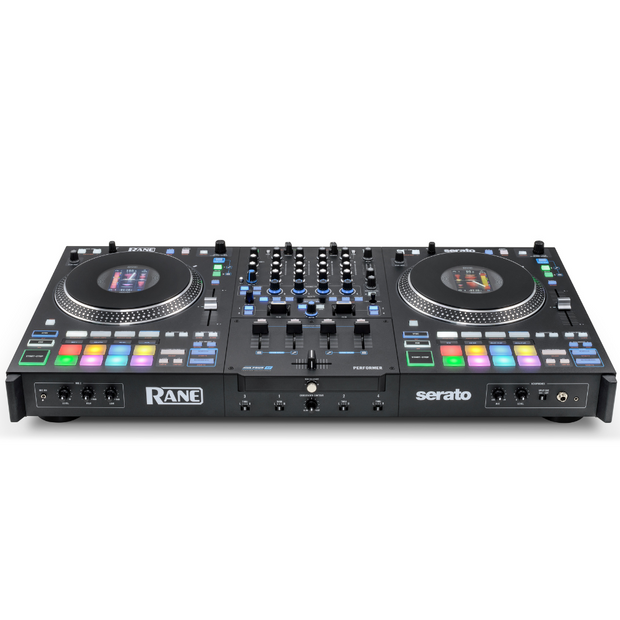

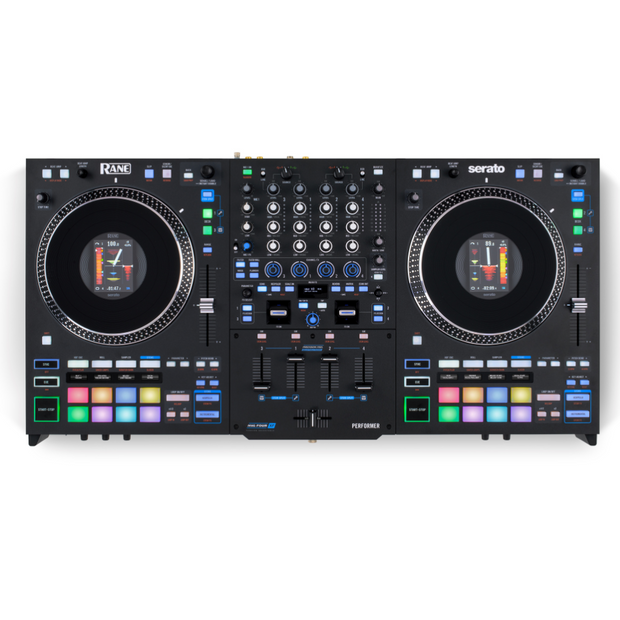

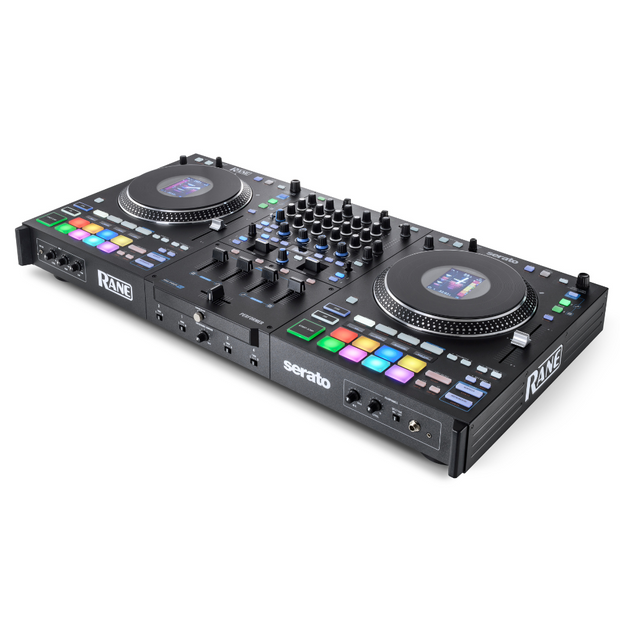

Rane Performer

• High-torque motorized aluminum platters with magnetic acrylic vinyl-feel top platters
• 4-channel mixer sections with 4 dual rail, magnetic tension adjustable
  PRECISION FEEL FADERS
• Advanced Stems control features including STEM-SPLIT, STEM LEVEL, STEM Pad Mode, and instant Acapella/Instrumental buttons
• 3.5" wheel displays with multiple waveform and library views plus Day Mode
• MAG FOUR crossfader with external tension adjustment knob
• Dynamic internal FX engine with 22 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ Software FX
• 16 Performance Pads with dedicated OLED Pad Mode displays for visual
• feedback
  Deck selection buttons for mixing with up to 4 software decks
• 2 Line/Phono inputs for turntables or external decks
• Dual-USB for seamless DJ transitions
• XLR & RCA Main out, 1/4" Booth/Zone out, (2) stereo RCA line/phono inputs,
• and (2) XLR 1/4" combo jack microphone inputs
  Trusted RANE build and no-compromise sound quality

CREATIVITY IN MOTION

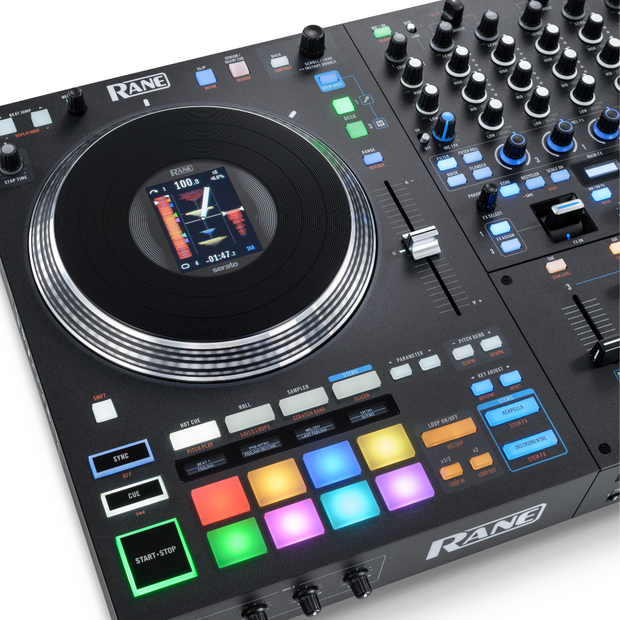

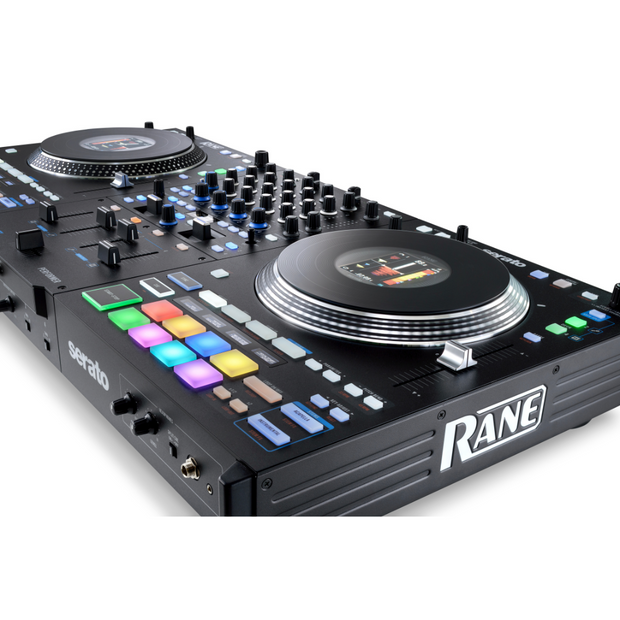

The PERFORMER boasts 7” high torque die-cast aluminum platters with acrylic discs that respond just like vinyl. Magnetically attached to the platters,
the discs provide consistently accurate feedback. In the center of each platter is a high-definition 3.5” LCD screen that displays deck info, moving
waveforms, album artwork, and library views. The Day Mode option reverses contrast for a clear view so nothing gets washed out when in sunlight.

PRECISION FEEL FADERS

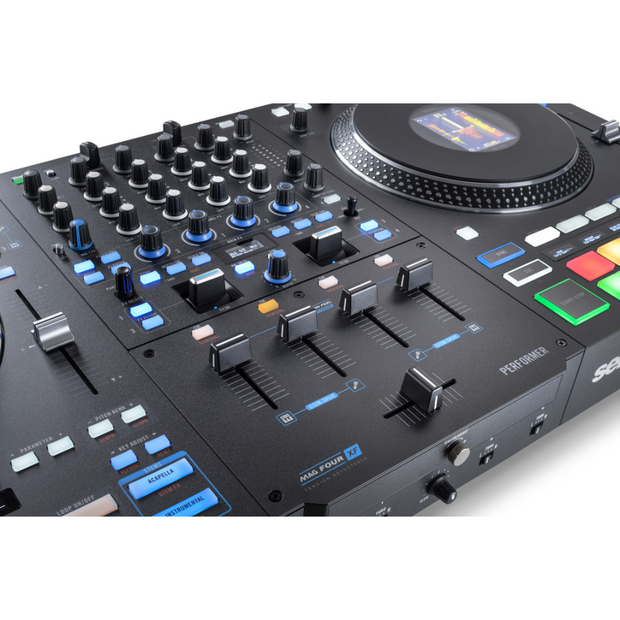

In addition to the adjustable MAG FOUR crossfader, the PERFORMER mixer section features 4 revisited PRECISION FEEL FADERS. These adjustable
tension faders utilize the same dual rail mechanical system of the MAG FOUR, but in a horizontal fader that’s mounted vertically on the circuit board. This translates into ultra-smooth, reliable, and consistent response when playing. The faders can be further customized in the onboard menu, giving you the ability to reverse them and adjust the cut-in curve from 0-100%.

STEMS CONTROL
With 4 unique options for controlling stems, the PERFORMER sets the standard for creative open-format DJing. The PERFORMER features RANE’s
exclusive STEM SPLIT feature, which automatically splits the acapella and instrumental sections across 2 mixer channels, giving you the freedom to add FX to individual elements, adding your own touch on the fly. STEM LEVEL transforms the 3-band EQ on each channel into adjustment knobs, allowing you to adjust, kill, or boost individual elements.

EXPANDED FX CAPABILITIES
Add flexibility and distinct flavor with more than 25 paddle-triggered, fully customizable MAIN FX and 4 knob-controlled CHANNEL FX. This robust FX suite boasts traditional classics like Reverb and Echo, along with some newcomers such as Scale Down, Recycler, and Riser. The entire fader FX
suite from the RANE SEVENTY A-TRAK SIGNATURE EDITION mixer has been ported over to the PERFORMER. This allows PRECISION FEEL volume faders to be used as linear controls for roll, pitch, and ring modulation. Seamlessly switch between the built-in hardware FX and Serato’s software FX, providing plenty of options for whichever style you choose.

RANE LEGACY
The RANE PERFORMER is the only 4-channel motorized DJ controller built to RANE’s rigorous standards. The PERFORMER earns the namesake from the talented professional artists that put this controller to work, making good use of the PRECISION FEEL FADERS, MAG FOUR crossfader, and industry-leading sound quality.

In the Box

RANE PERFORMER
Power Cord
USB Cable
Product Poster
Slip Ring Assortment
Stickers and Platter Markers
Crossfader Lubricant
Microfiber Dust Cloth

Specifications

DIGITAL AUDIO

Converters: Cirrus Logic, 24-bit PCM, 48 kHz
Digital Signal Processing: 32-bit, Floating Point, Double precision
Dynamic Range (A-weighted, unity gain):
ADC: 113 dB
DAC: 113 dB
CD Input to Analog Output: 110 dB
CD Input to USB Output: 113 dB
USB Input to Analog Output: 113 dB

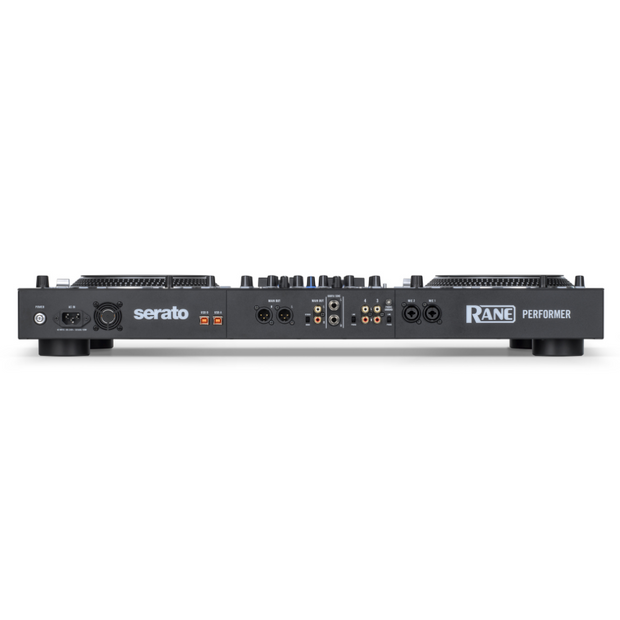

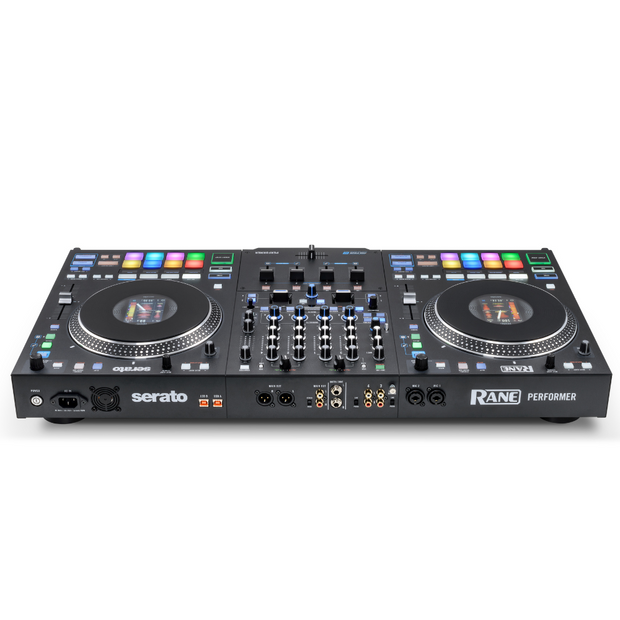

CONNECTIONS

(2) XLR outputs (Main)
(2) 1/4” outputs (Booth)
(1) RCA stereo output pair (Main)
(2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
(2) RCA stereo input pairs (Deck 3-4)
(1) 1/4” (6.35 mm) TRS output (Headphones)
(1) 1/8” (3.5 mm) TRS output (Headphones)
(2) USB Type-B ports
(1) IEC power cable input

AUDIO OUTPUTS

Main Outputs (XLR):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Main Outputs (RCA stereo pair):
Maximum Output: 4 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Booth Outputs (1/4”):
Gain Trim: Off to 0 dB
Maximum Output: 8 Vrms
THD+N (20 kHz BW @ 1 kHz): 0.004%
Frequency Response: Flat - 20-20kHz
Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS):
Maximum Output: 4 Vrms Voltage: (no load)
Output Power: 50 mW (50 ohms)
Dynamic Range (A-weighted): 108 dB
