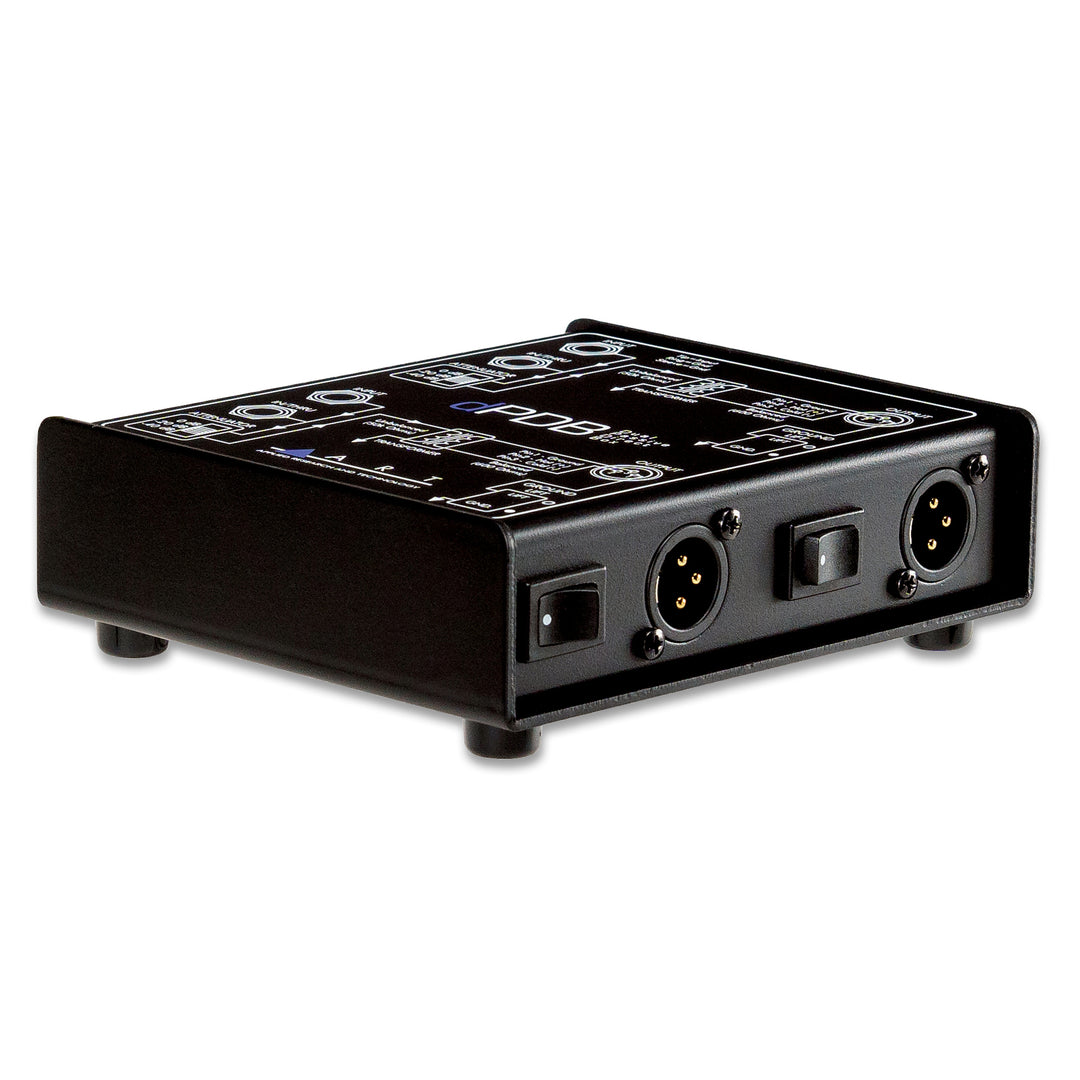

ART dPDB Dual Passive Direct Box
DPDB
Payment plans from Affirm, learn more
- ART
- Shipping Calculated at checkout, most in stock products ship same day
The dPDB is a two-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
Each input signal is sent to a balanced, transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage. Both channels feature ground lift switches to help eliminate hum, and up to 40 dB of attenuation.
As a fully passive design, the dPDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.
The dPDB provides a high-fidelity connection to a mixer, PA system, or audio interface, and offers two independent channels in a stage-proof steel enclosure.
Specifications:
Active or Passive: Passive
Outputs: 600 Ω XLR Output Jack
Input Impedance: 50 kΩ
Output Impedance: 600Ω
Frequency Response: 10 Hz – 100 kHz +/- 0.5 dB @ +0 dBu
Dimensions (HxWxD): 5.75" x 5" x 2"
14.6 cm x 12.7 cm x 5.1 cm
