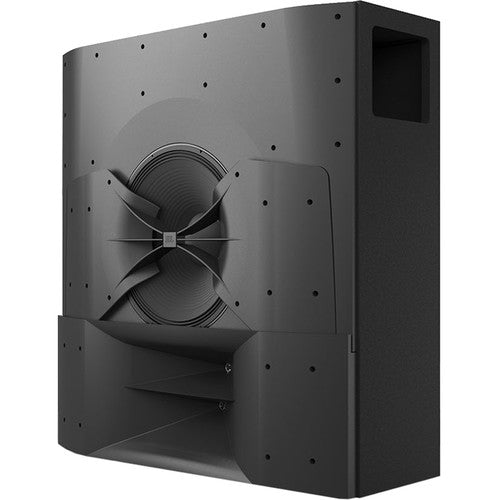

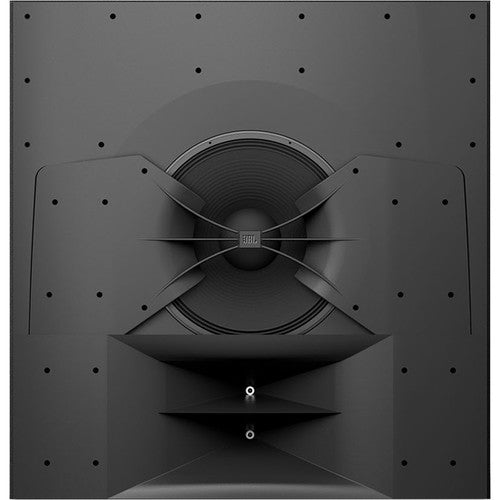

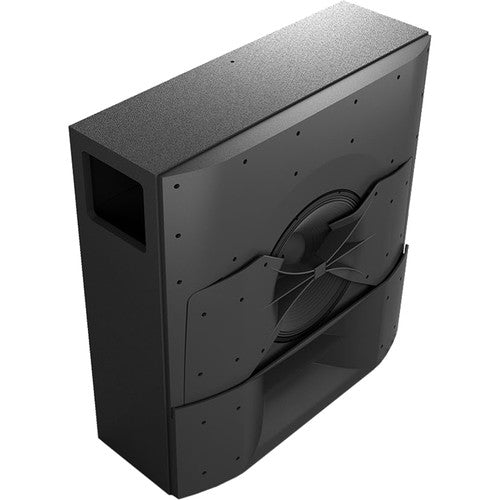

JBL Pro C221 Two-Way ScreenArray Cinema Speaker

Two-Way ScreenArray Cinema Loudspeaker

Only One Available

The C221 Two-Way ScreenArray® Cinema Loudspeaker combines JBL’s latest technological advances with a compact footprint and accessible price point, making it easy to upgrade the sonic experience in your small or mid-sized cinema. Featuring patent-pending Dual Dissimilar Arraying and Acoustic Aperture Technology, the C221 provides remarkably uniform coverage and smooth, accurate sound reproduction for every member of your audience. The C221 has a depth of 12”, making it perfect for small and medium multiplexes with space constraints. And since the C221 uses the same driver technology trusted by top movie studios around the world, your audience will enjoy a more captivating, authentic experience from every seat in the house—just like the creators intended

 Features

• Next-generation two-way ScreenArray® design for maximum output, improved coverage and minimum distortion
• Patent-pending Dual Dissimilar Arraying Technology creates coverage pattern for raked seating areas, and extends HF output power and pattern control a full octave in both spectrum extremes
• Patent-pending Acoustic Aperture Technology delivers improved drivers for lower distortion and higher sensitivity, plus enhanced mid-range performance for a smooth crossover transition
• 12" footprint saves space without sacrificing performance
• Designed for small and medium sized cinemas with a maximum throw distance of 15m (49.20ft)

Specifications
Frequency Response (±3 dB): 77Hz - 18kHz
Frequency Response (-6dB): 58kHz - 20kHz
Frequency Range (-10dB): 44Hz - 20kHz
Crossover Frequencies: 1700Hz (LF), 2000Hz (HF1), 1700Hz (HF2)
Free Field Passive Sensitivity: 100dB SPL @2.83V
Calculated Max SPL: 125 dB
Passive Rated Impedance: 8Ω
Minimum Impedance: 7Ω @ 167Hz
Power Handling (2Hr AES Rating): 300W
Power Handling (100Hr AES Rating): 150
WLF Sensitivity: 100dB SPL @ 2.83
VHF Sensitivity: 100 dB SPL @ 2.83V
Furthest Seat: 15m/49.20ft
Net Weight (each): 100 lbs (45.36 kg)
Dimensions (H x W x D) - Inches: 35" x 34" x 12"
Dimensions (H x W x D) - CM: 88.9 x 85.73 x 30.48
Sensitivity: 100dB @ 2.83V
Maximum SPL (1m): 125 dB
Nominal Impedance: 8Ω
