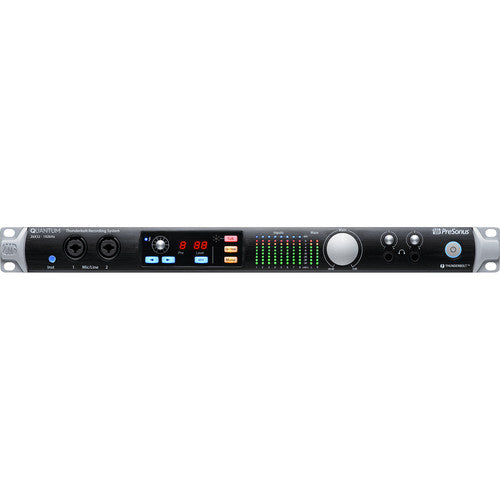

PreSonus Quantum 26x32 Thunderbolt 2 Low-latency Audio Interface

With a barely measurable round trip latency of less than 1 ms*, it's no wonder Sound on Sound magazine dubbed the Quantum Thunderbolt™ 2 audio interface the fastest audio interface on the planet. Superb high-definition digital conversion and ultra-transparent XMAX-Remote mic preamps mean that your audio will always sound its best—whether you’re recording with or without your favorite plug-ins engaged in real-time.

Every design decision during Quantum’s engineering was made with one goal in mind: blazing fast speed without any sonic compromise. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range and superior low-jitter clocking, coupled with our ultra-transparent XMAX-Remote preamps, result in superb audio quality with the lowest roundtrip latency of any audio interface available (< 1 ms*).

Features:

• 26x32 Thunderbolt ultra-low-latency audio interface
• PreSonus’ fastest interface; record direct to DAW (no DSP)
• Stack up to four Quantum interfaces via Thunderbolt for a monster system
• Talkback switch and internal Talkback microphone
• Mute/Dim and Mono switches
• Assignable output level control
• 10 8-segment LED meters (8 input, 2 output)
• Tight integration with included Studio One® Artist DAW software (Mac®/Windows®) for multitrack music production and studio command features
• Wireless control over preamp levels from free UC Surface touch-control software for iPad® and Android™ tablet and from free Studio One Remote for iPad and Android tablet
• Wired control over preamp levels from free UC Surface touch-control software for Mac and Windows computers
• Compatible with most recording software for Mac and Windows
• Studio Magic Plug-in Suite included
• Simultaneous I/O up to 26 inputs/32 outputs (at 44.1 or 48 kHz)
• 2 front-panel combo microphone/instrument/line inputs
• 6 rear-panel combo microphone/line-level inputs
• 8 XMAX remote-controllable, Class A mic preamps with individually switched 48V phantom power
• 2 balanced ¼” TRS line-level main outputs
• 8 balanced ¼” TRS line-level outputs
• Line outputs are DC coupled for sending control voltages for analog gear
• ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
• Stereo S/PDIF coaxial input and output
• 2 high-volume headphone outputs with dedicated volume controls
• Thunderbolt 2 high-speed bus (Thunderbolt 3 compatible)
• 24-bit resolution and up to 192 kHz sampling rate
• Top-quality 120 dB A/D/A converters
• BNC word clock input and output with low-jitter clocking
• MIDI I/O on 5-pin DIN connectors
• Road-rugged construction with all-metal chassis and metal knobs
• 1U rack-mountable
• 12 VDC external power supply (included)
