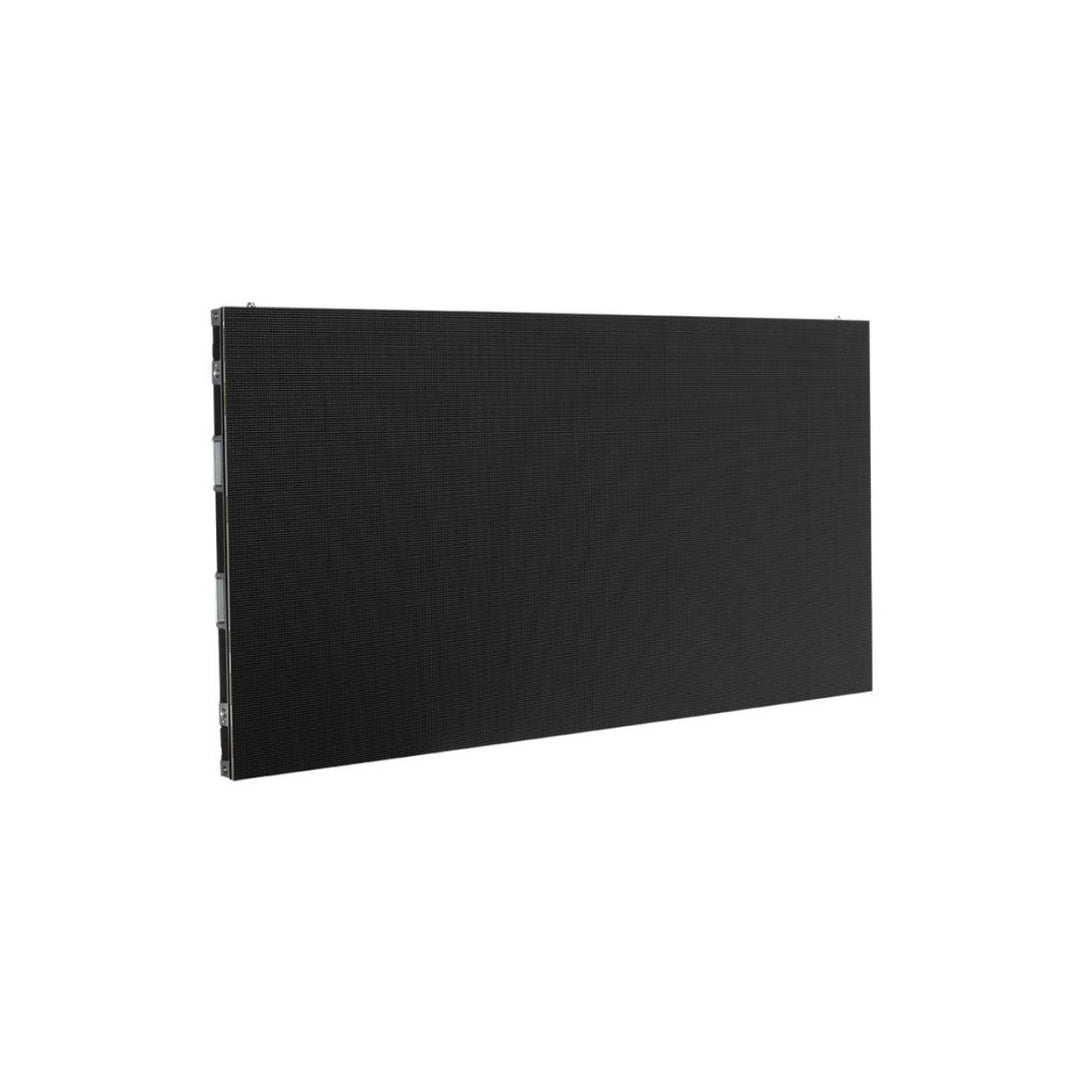

Overview of American DJ WMS2 Wall Mount Video Panel
Ideal for integration projects of all types, the WMS2 is ADJ's highest resolution video panel to date. WMS2 boasts a 2.6mm pixel pitch delivering unparalleled vibrance and clarity with a pixel density of 147,456/m2 and a brightness of 800 NITS. WMS2 is wall mountable, or temporary hangable, with a front serviceable design in a horizontal or vertical configuration.

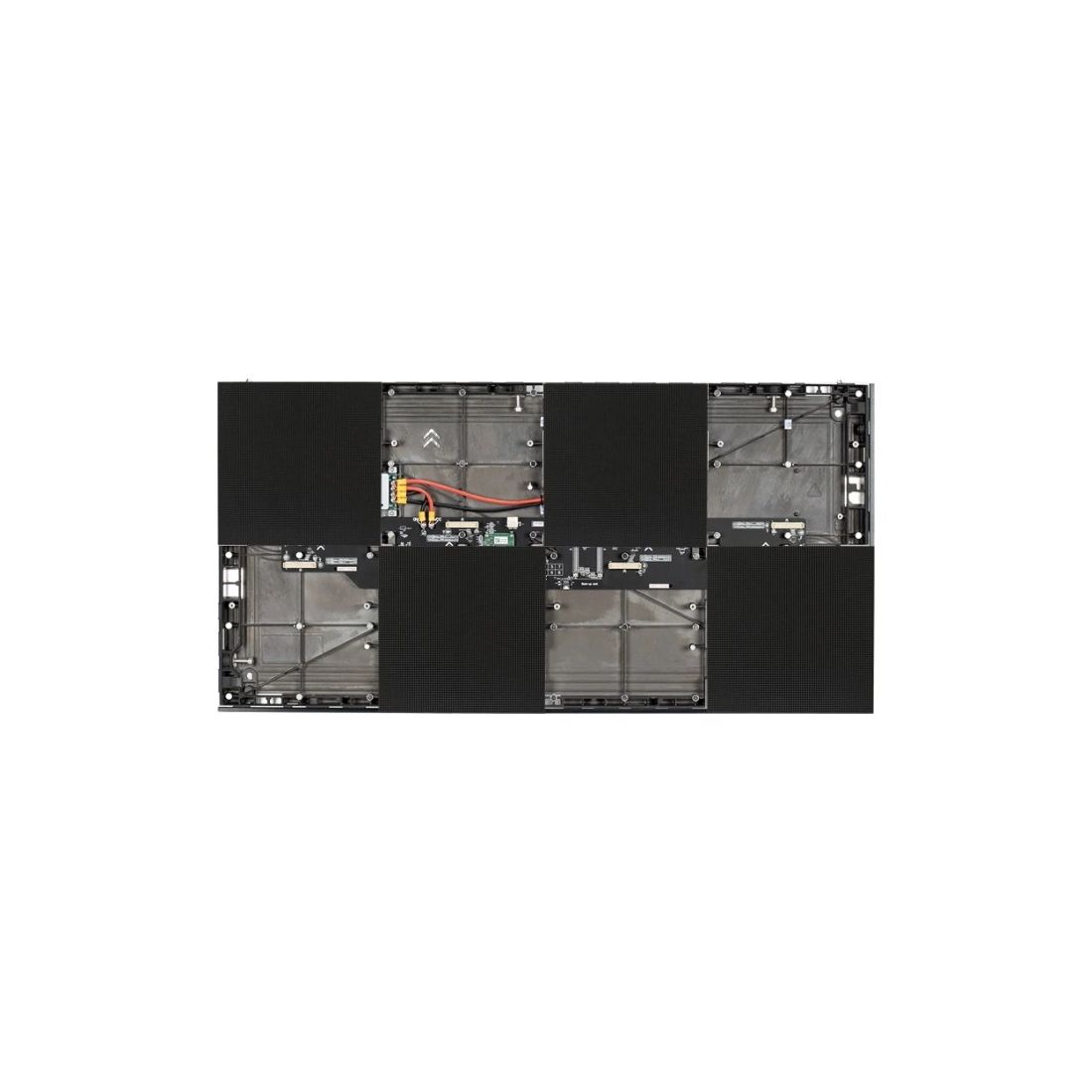

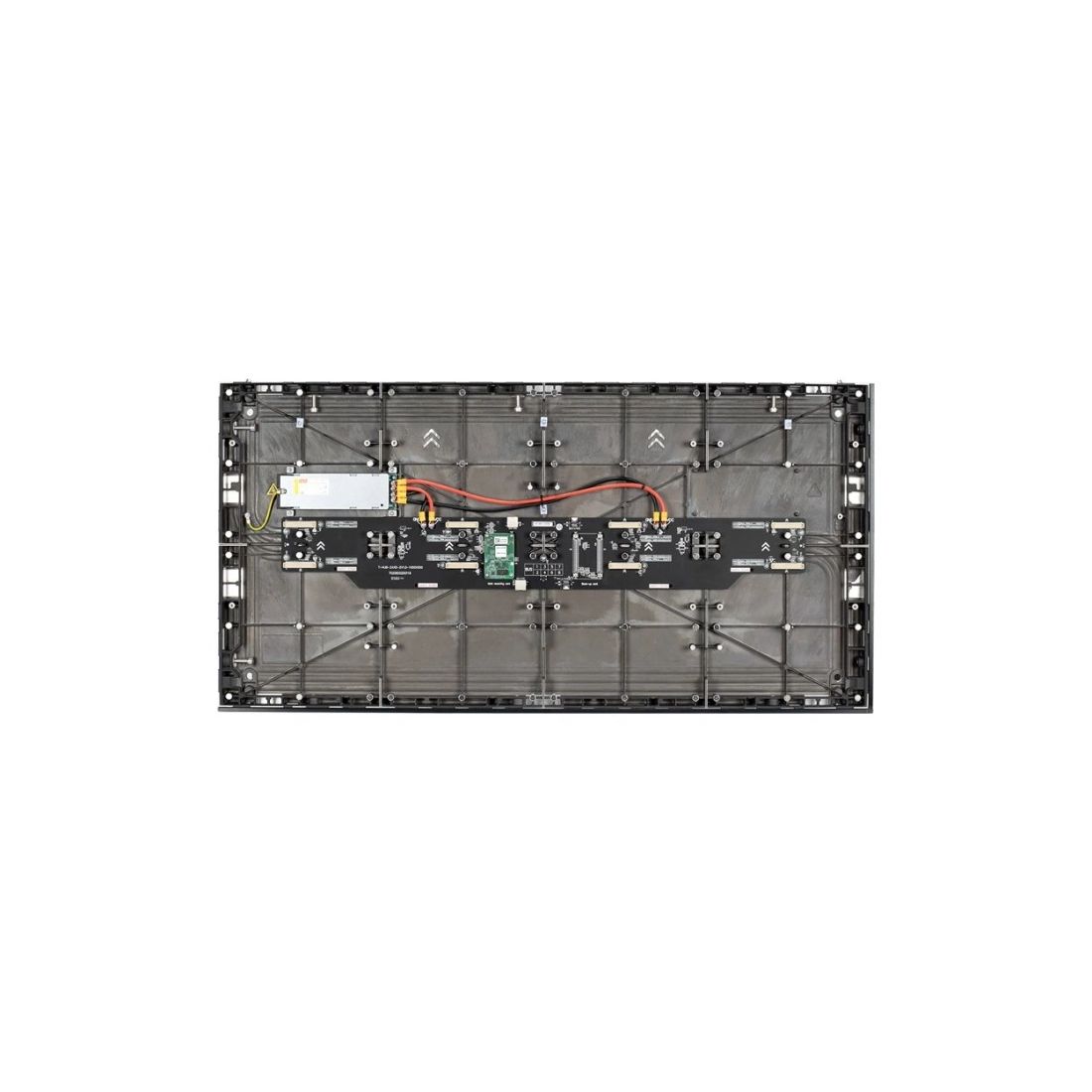

ā¢ Maintenance: Front Service
ā¢ Configuration: Horizontal (wall mount, ground stack or hang); Vertical (wall mount only)
Pixel Density (dot/m2): 147,456
LED sealing Type: SMD1515 Kinglight Cooper
Module Size (mm x mm): 250 x 250
Module Resolution (PX x PX): 96 x 96
Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically).
Average Life (Hours): 50000H
Optical Ratings
Brightness (cd/m2): 800 NITS
Horizontal Viewing Angle (Deg): 160Ā°
Vertical Viewing Angle (Deg): 140Ā°
Grey Scale (Bit): under 14, CFD435
Refresh Rate (Hz): 3840Hz
Power Supply
Input Voltage (V): 100-240VAC
Max Power Dissipation (W/m2): 350
Average Power consumption (W/m2): 140
Control System
Receiving Card: Novastar A8s-N
Environmental
Working Environment: Indoor
Waterproof Level: IP20
Working Temperature (Ā°C): -20 ~ +40, (Ā°F) -4 ~ 104
Work humidity (RH): 10%~90%
Storage temperature range: (Ā°C) -40 ~ +80, (Ā°F) -40 ~ 176
Operation humidity (RH): 10%~90%
Features
ā¢ Installation Method: Hang, Stack or Wall Mountā¢ Maintenance: Front Service
ā¢ Configuration: Horizontal (wall mount, ground stack or hang); Vertical (wall mount only)
Specifications
Pixel Pitch (mm): 2.6mmPixel Density (dot/m2): 147,456
LED sealing Type: SMD1515 Kinglight Cooper
Module Size (mm x mm): 250 x 250
Module Resolution (PX x PX): 96 x 96
Panel Resolution (PX x PX): 384 x 192 pixels (horizontally) or 192 x 384 (vertically).
Average Life (Hours): 50000H
Optical Ratings
Brightness (cd/m2): 800 NITS
Horizontal Viewing Angle (Deg): 160Ā°
Vertical Viewing Angle (Deg): 140Ā°
Grey Scale (Bit): under 14, CFD435
Refresh Rate (Hz): 3840Hz
Power Supply
Input Voltage (V): 100-240VAC
Max Power Dissipation (W/m2): 350
Average Power consumption (W/m2): 140
Control System
Receiving Card: Novastar A8s-N
Environmental
Working Environment: Indoor
Waterproof Level: IP20
Working Temperature (Ā°C): -20 ~ +40, (Ā°F) -4 ~ 104
Work humidity (RH): 10%~90%
Storage temperature range: (Ā°C) -40 ~ +80, (Ā°F) -40 ~ 176
Operation humidity (RH): 10%~90%
Music City Canada is an authorized reseller for ADJ products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
