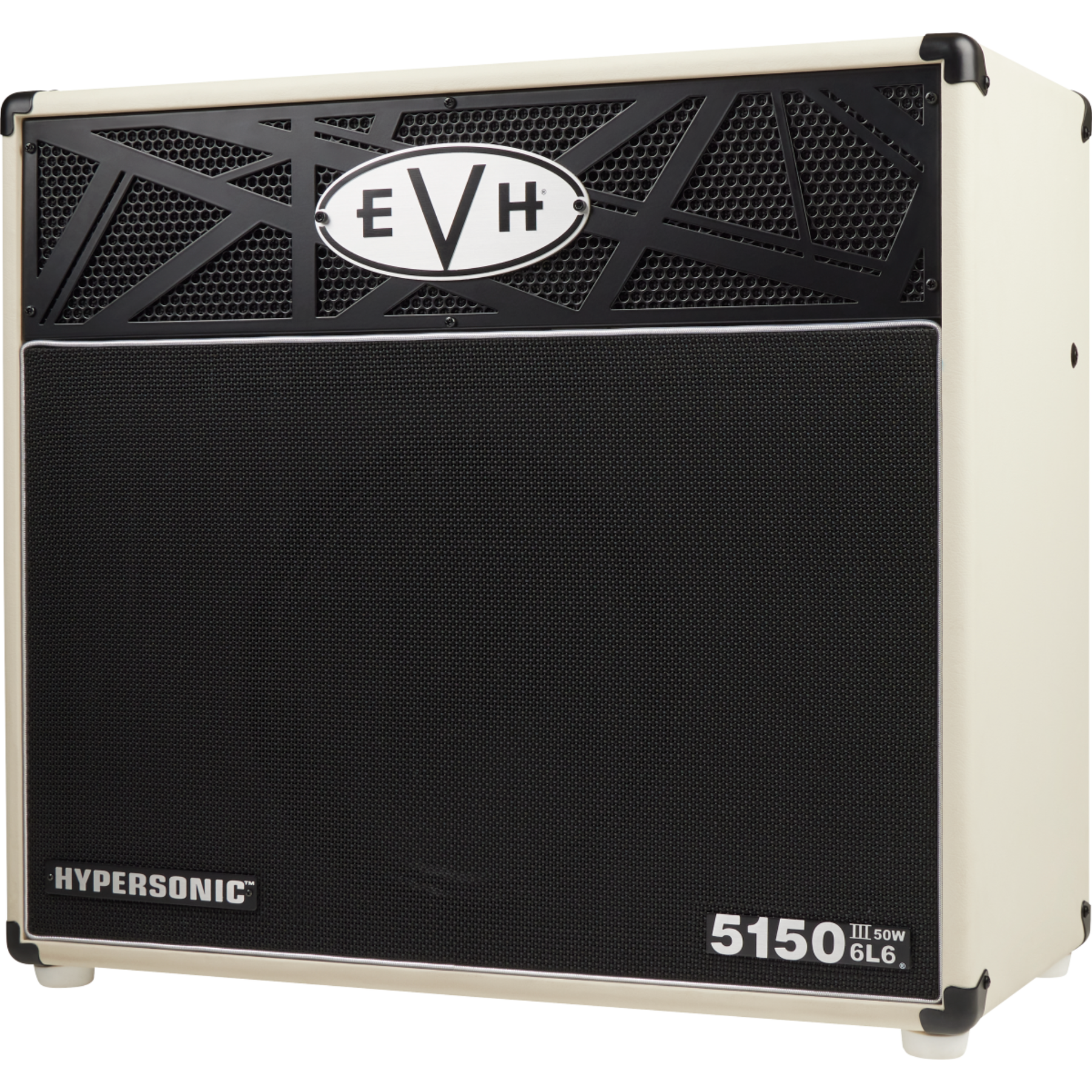

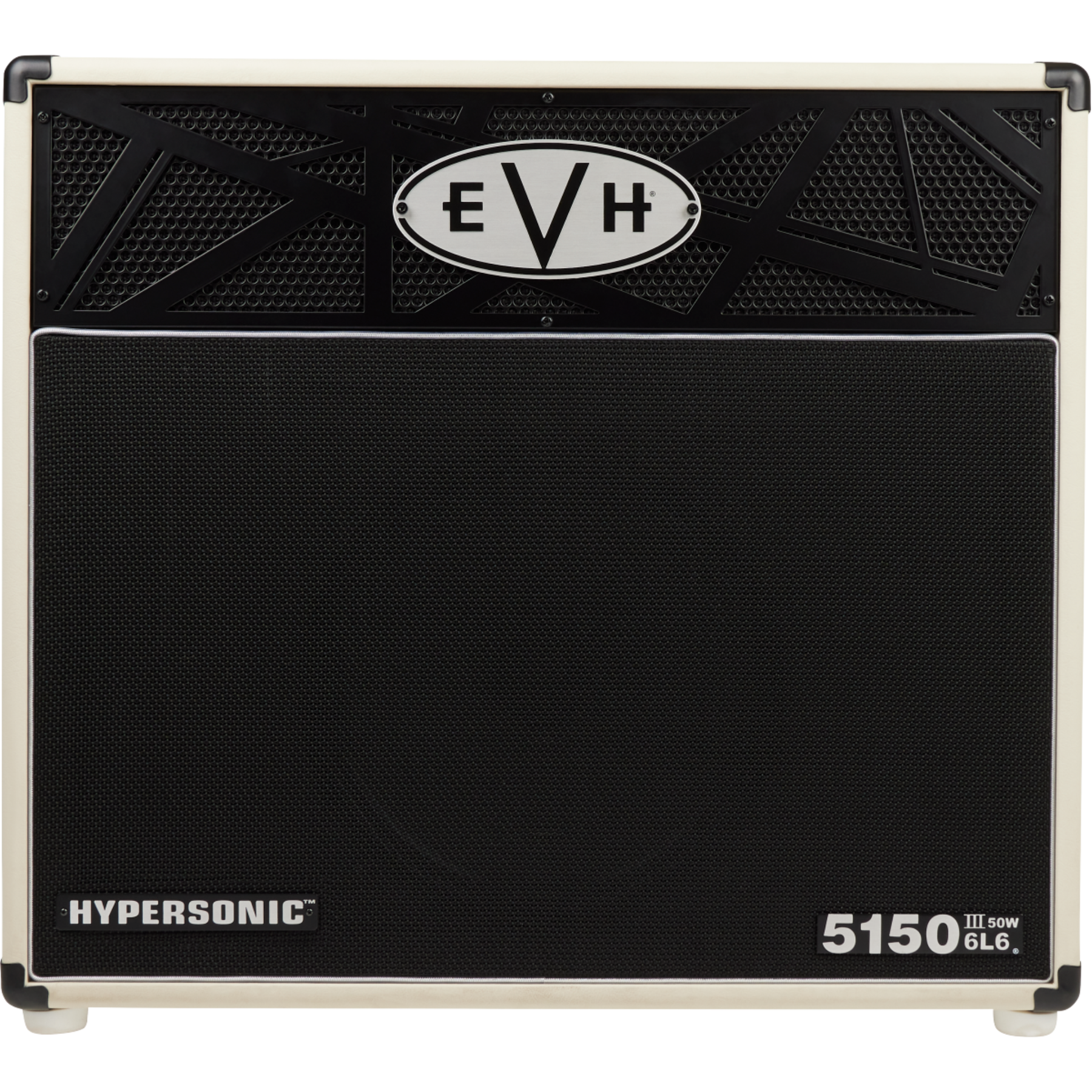

Overview of EVH 5150III® Hypersonic™ 6L6 1x12 - Ivory
The EVH 5150III® Hypersonic™ 6L6 1x12 combo amp uses massive digital processing power to create a faithful model of the EVH 5150III 6L6 tube combo.
A high-performance digital power amp achieves the headroom and dynamic range of a real tube amp, and when paired with a Celestion® speaker and plywood closed-back cabinetry, the result is EVH tone, volume and dynamics virtually indistinguishable from the all-tube original.

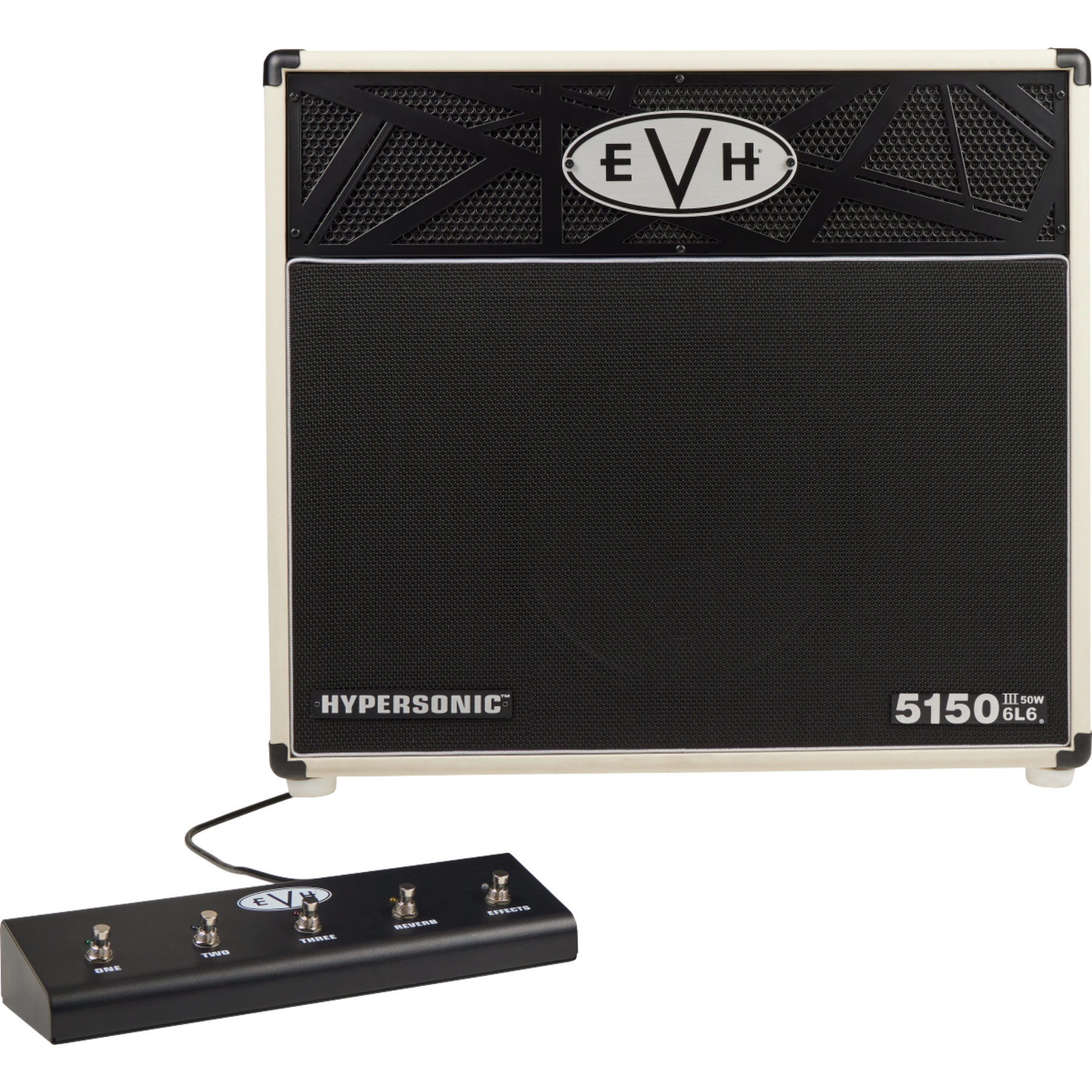

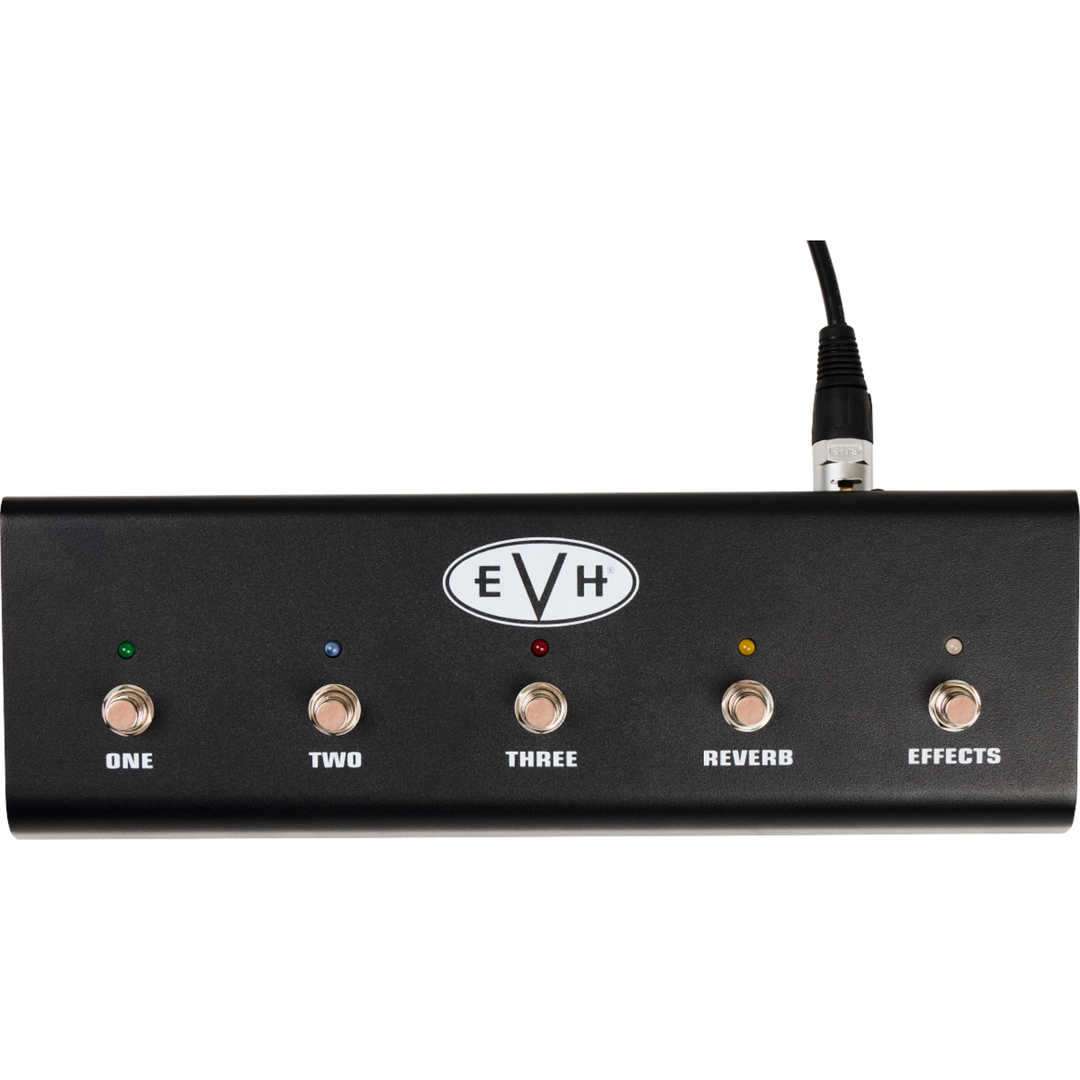

These changes make the 5150III Hypersonic combo weigh substantially less than the all-tube version. Added concentric EQ controls for channels one and two, and independent noise gate controls for each channel, enhance the user experience. The included footswitch has also been updated to allow both reverb and effects loop selection. Other features include a power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, and a mute switch for silent stage or recording use. The EVH 5150III Hypersonic amps are available in black or ivory vinyl covering.
Electronics
Control Panel: Ch. 1 – Independent Gain, Low, Mid, High, Noise Gate Trim & Volume; Ch. 2 – Independent Gain, Low, Mid, High, Noise Gate Trim & Volume; Ch. 3 – Independent Gain, Low, Mid, High, Noise Gate Trim & Volume
Inputs: One 1/4", MIDI (rear)
Headphone Jack: 1/4" Stereo
Line Out: One XLR
Channels: Three (Clean, Crunch, Lead)
Effects: Reverb
Effects Loop: 1/4" (Send/Return)
Connectivity: USB-C (Recover/Firmware Update)
Connection Type: RJ-45
Voltage: 120V (also available in 100V, 110V, 220V, 230V, 240V)
Wattage: 50 Watts
Hardware
Control Knobs: White chicken-head style pointer and black round inner on Channel 1/2
Amplifier Covering: Vinyl
Cabinet Material: 11-ply 15mm plywood
Grille Cloth: Woven front panel with large EVH logo
Handle: Molded plastic top (1)
Casters: Optional (P/N 0994000000)
Front Panel: White
Reverb Tank: N/A
Reverb Tank Type: N/A

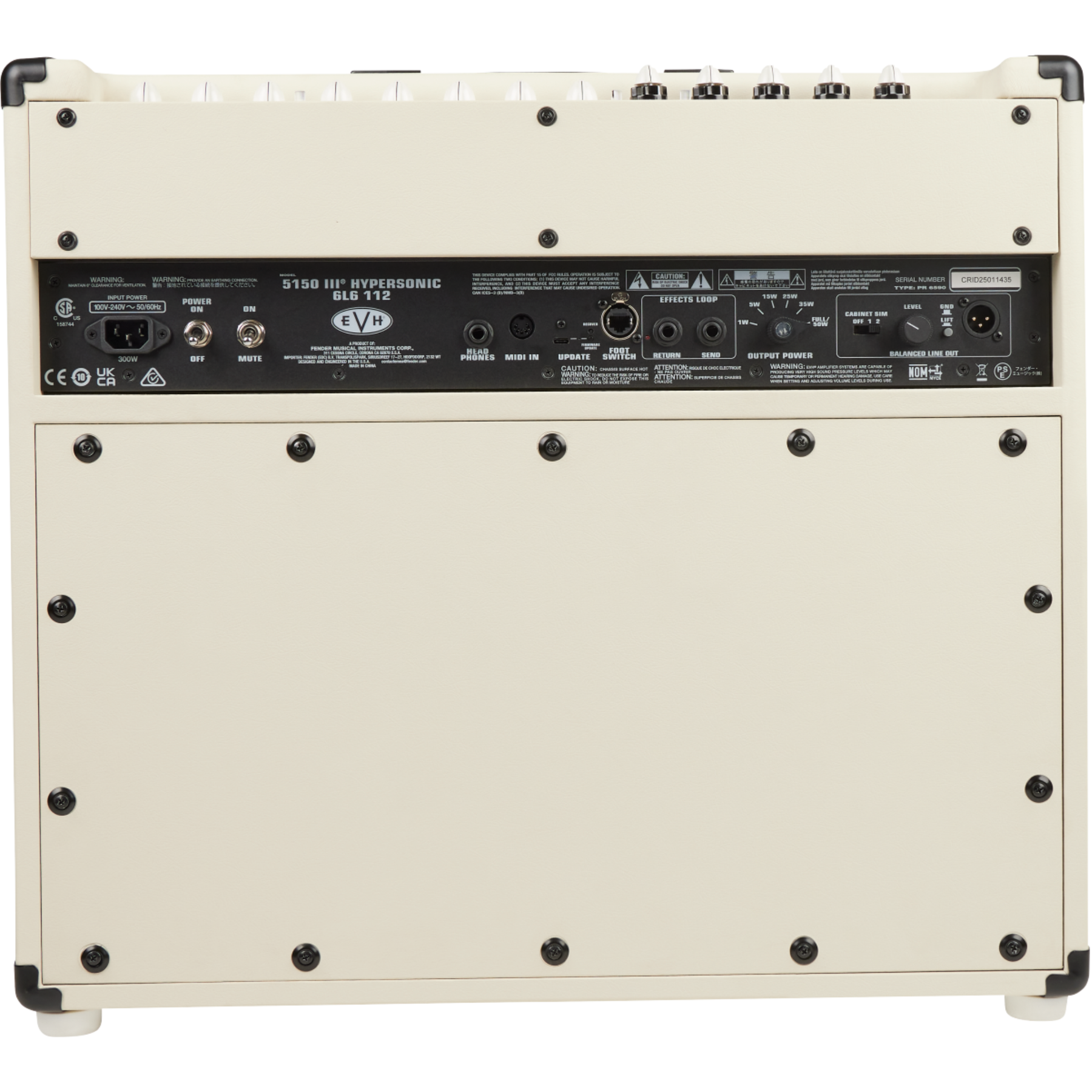

Rear Control Panel: Power Input, Power Switch, Mute Switch, Headphone, MIDI, USB-C (Firmware Update), Footswitch, Effects Loop, Output Power, Cab Sim Selector, Line Out Control, Ground Lift
Speakers
Speakers: One 12" Celestion EVH G12H 30W Anniversary Series
Speaker Wattage: 30 Watts
Total Impedance: 16 ohms
Measurements
Shipping Dimensions: 18.00 × 25.00 × 30.00 in
Shipping Weight: 60.00 lb
Shipping Length: 30.00 in
Shipping Height: 18.00 in
Shipping Width: 25.00 in
Product Depth: 12.25" (31.1 cm)
Music City Canada is an authorized reseller for EVH products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
