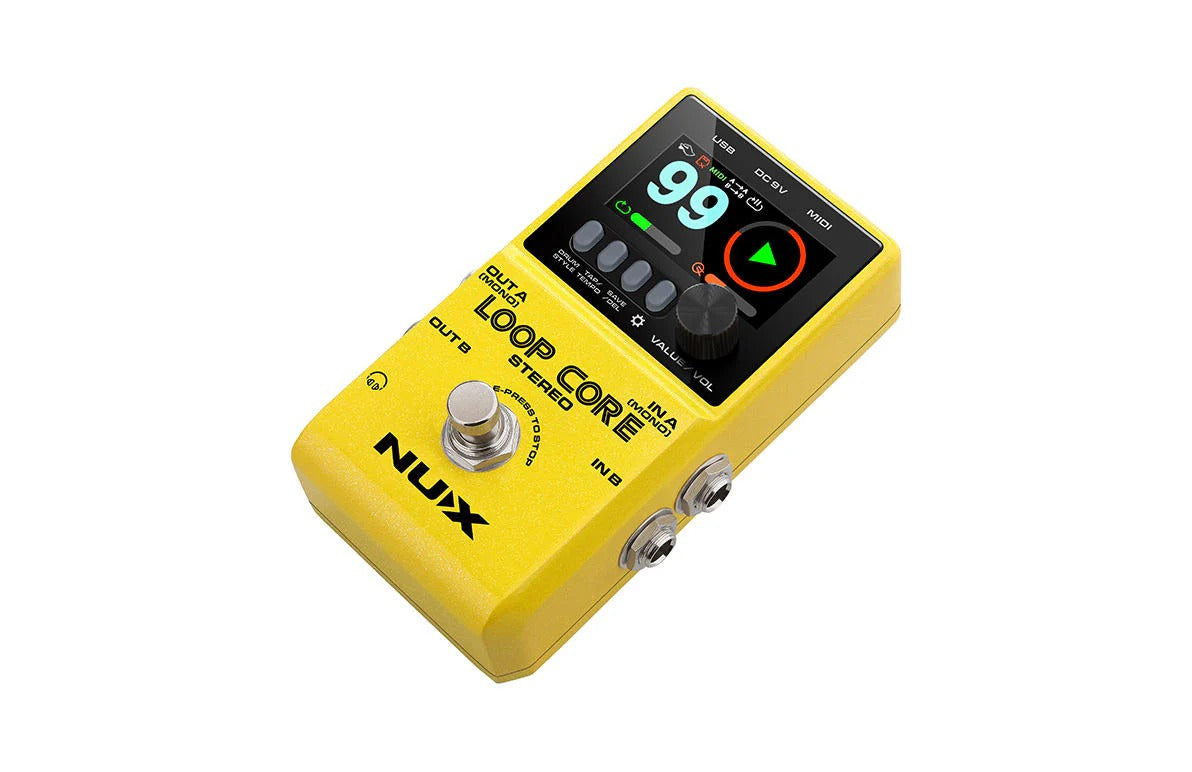

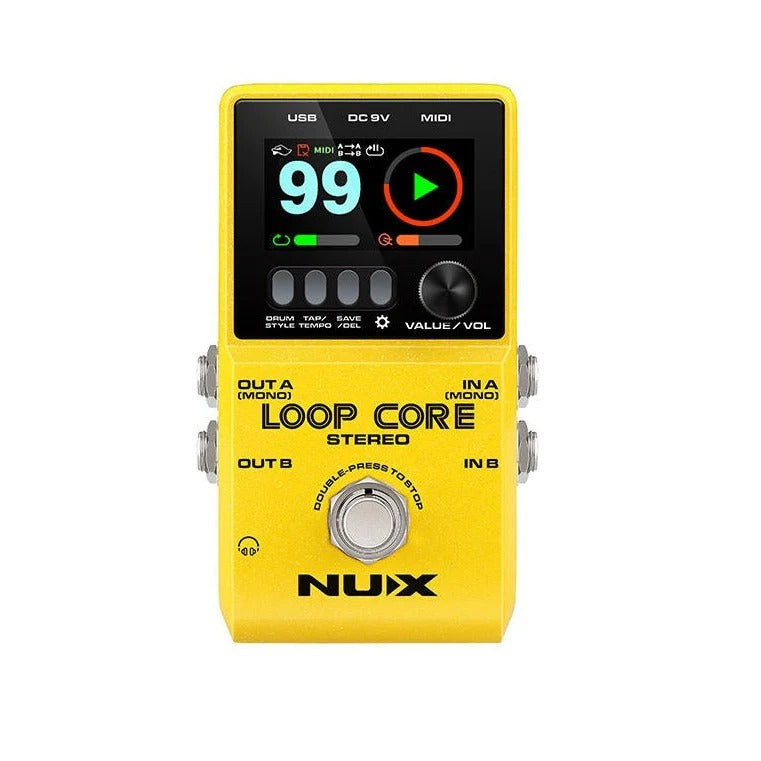

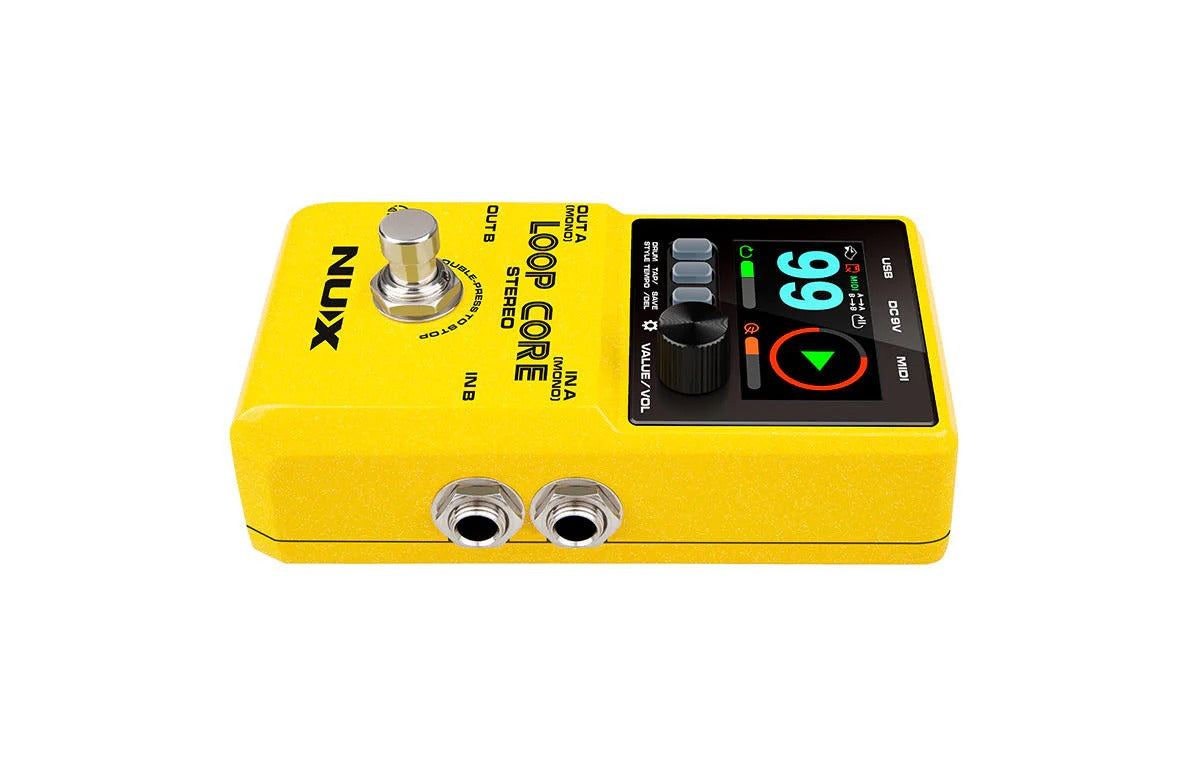

Nux Loop Core Stereo Looper Pedal

The Nux LOOPCORE-STEREO Pedal offers 50 unique drum beats to choose from to liven up your loop.

The NUX Loop Core Stereo is their next generation Looper pedal. Featuring a high-definition color LCD display, stereo inputs/outputs, and a MIDI control input; the Loop Core Stereo allows you to create up to 6 hours of music phrases, save them in one of 99 provided memory slots, and play back as stereo loops! Also included are 50 different drum patterns to complete the looping experience. Whether you practice, compose, or play live gigs, you'll be inspired from the very first loop!

Features

• All new Stereo Looper with 1.9" HD LCD display.
• 99 user memories, 6 hours of recording time.
• 50 built-in rhythm tracks, Tap Tempo function.
• 3 record modes including Instant, Detecting and Pre-beat.
• 2 Overdub modes: Rec - Play -Ovedub , Rec - Overdub - Play.
• 4 stop modes, featuring one-shot and fade out.
• Headphone out with independent volume control.
• Cab Simulation when out to mixer or PA system.
• MIDI-controlled enabled Looper.

Create and Save Your Loops!
It's easy to create loops and practice with the NUX Loop Core Stereo.
Power on the Loop Core Stereo pedal, rotate the VALUE knob to select an empty memory from 01 ~ 99, then you can press the foot switch to record/play/dub your loops. You can also hold the foot switch to UNDO/REDO/CLEAR. When you are working on loops or practising, press the VALUE knob once/twice to adjust the volume of Loop/Drum.

MIDI Control
Nearly every parameter of the Loop Core Stereo can be controlled by an external MIDI controller, such as tap tempo, stop/start/record, and so much more. The MIDI to 1/8" cable is included to get you started quickly.

Customize Your Own
The Loop Core Stereo allows users to customize their own boot-up picture with a GIF.

• Connect the Loop Core Stereo to your computer and download a GIF picture to the folder: NUX LOOPER > NUX_LOOP > GIF.
• Disconnect and reboot the Loop Core Stereo, and then enter the DISPLAY setting and set the BOOT-UP PICTURE option to USER.
• Reboot the Loop Core Stereo again. Enjoy your own customized GIF interface!

Specifications

• Sampling Frequency: 44.1KHz
• AD converter: 24bit
• Signal Processing: 32bit
• Frequency response: 20Hz-20KHz
• Noise Level: -100dBu
• Dynamic Range: 108dB
• Power Consumption: 110mA-120mA
• Input: Mono, Stereo
• Output: Mono, Stereo, Phones
• Display: TFT color LCD display
• Power: 9V negative tip power adapter
• Dimensions: 122mm(L)*72mm(W)*48mm(H)
• Weight：264g

Record up to six hours of loops with this pedal!
