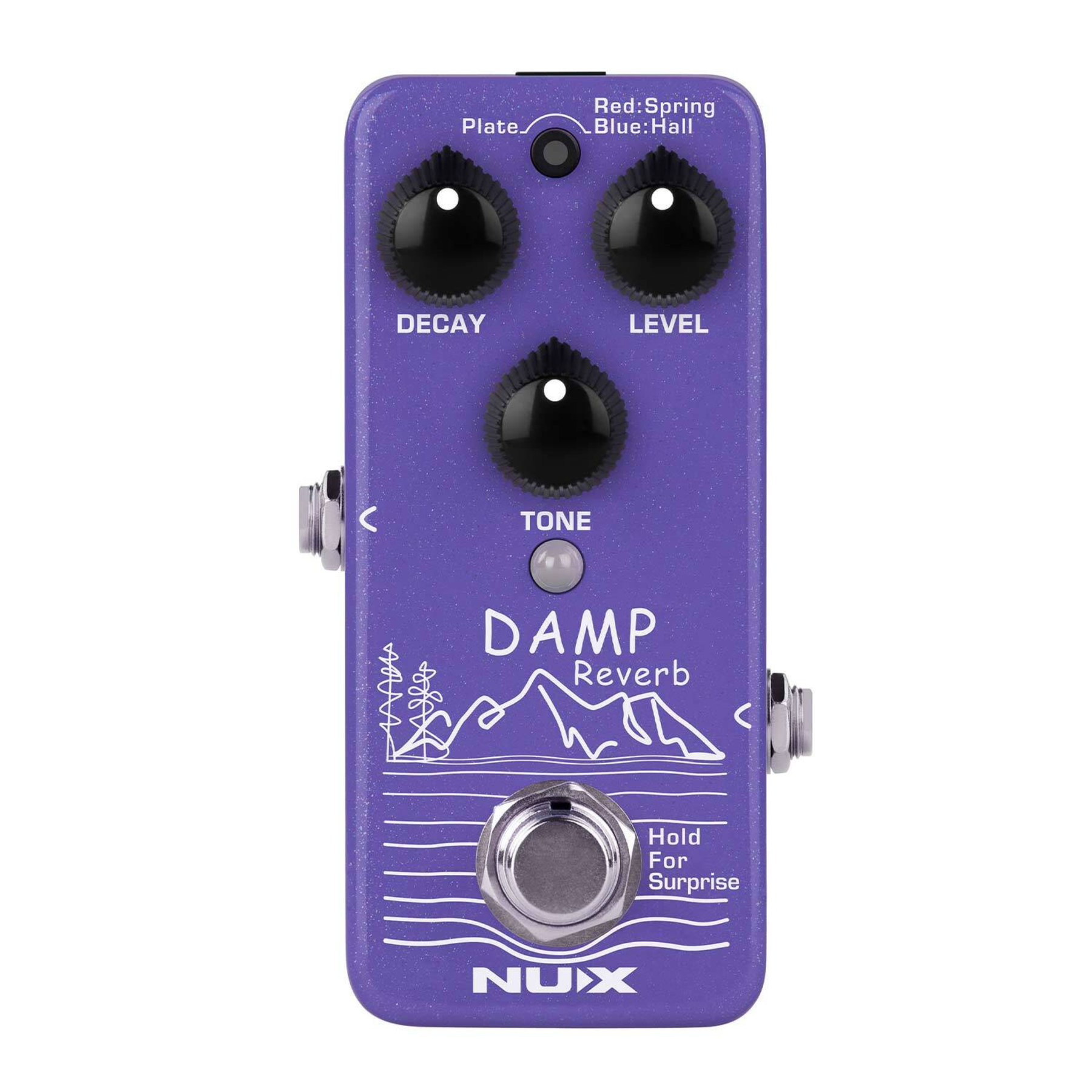

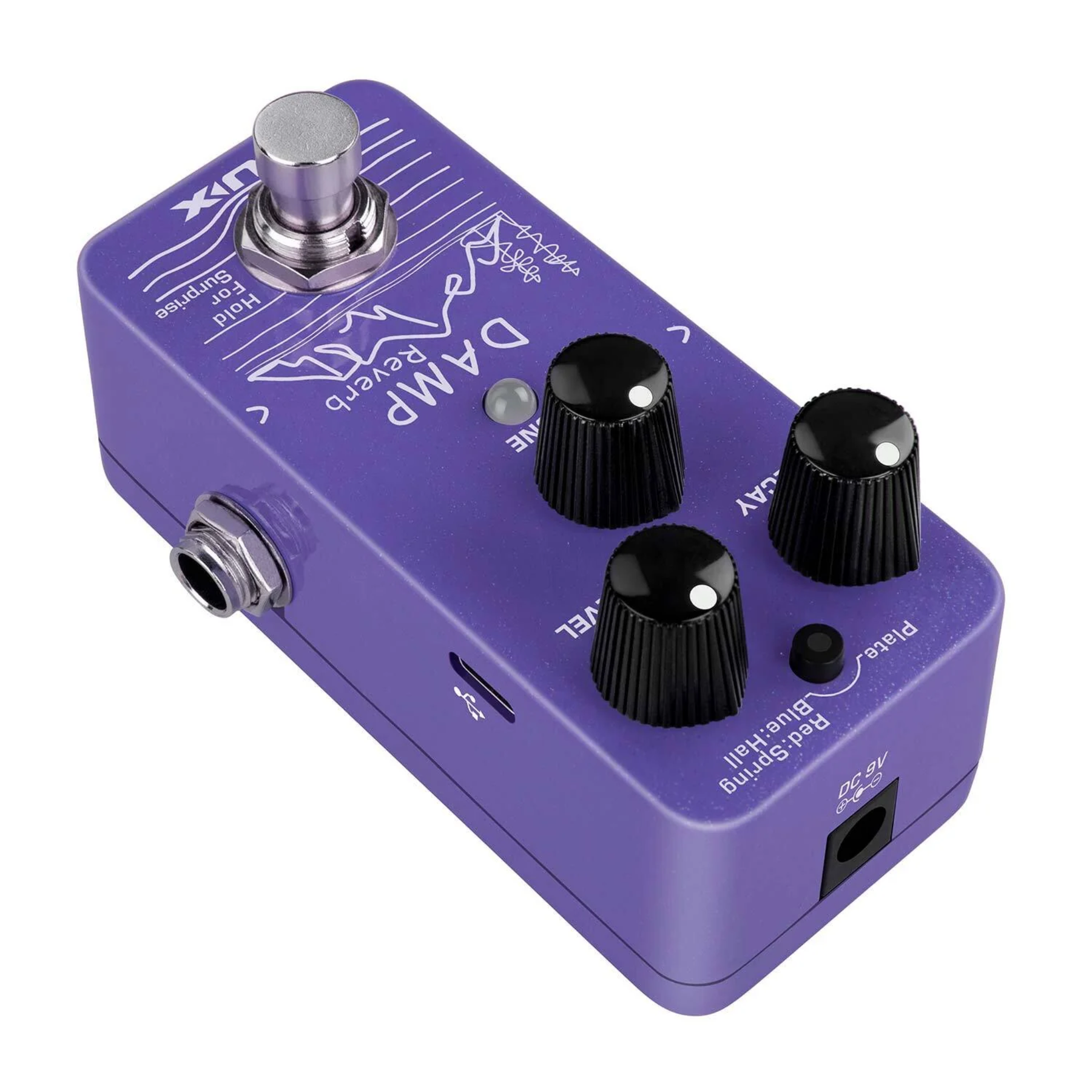

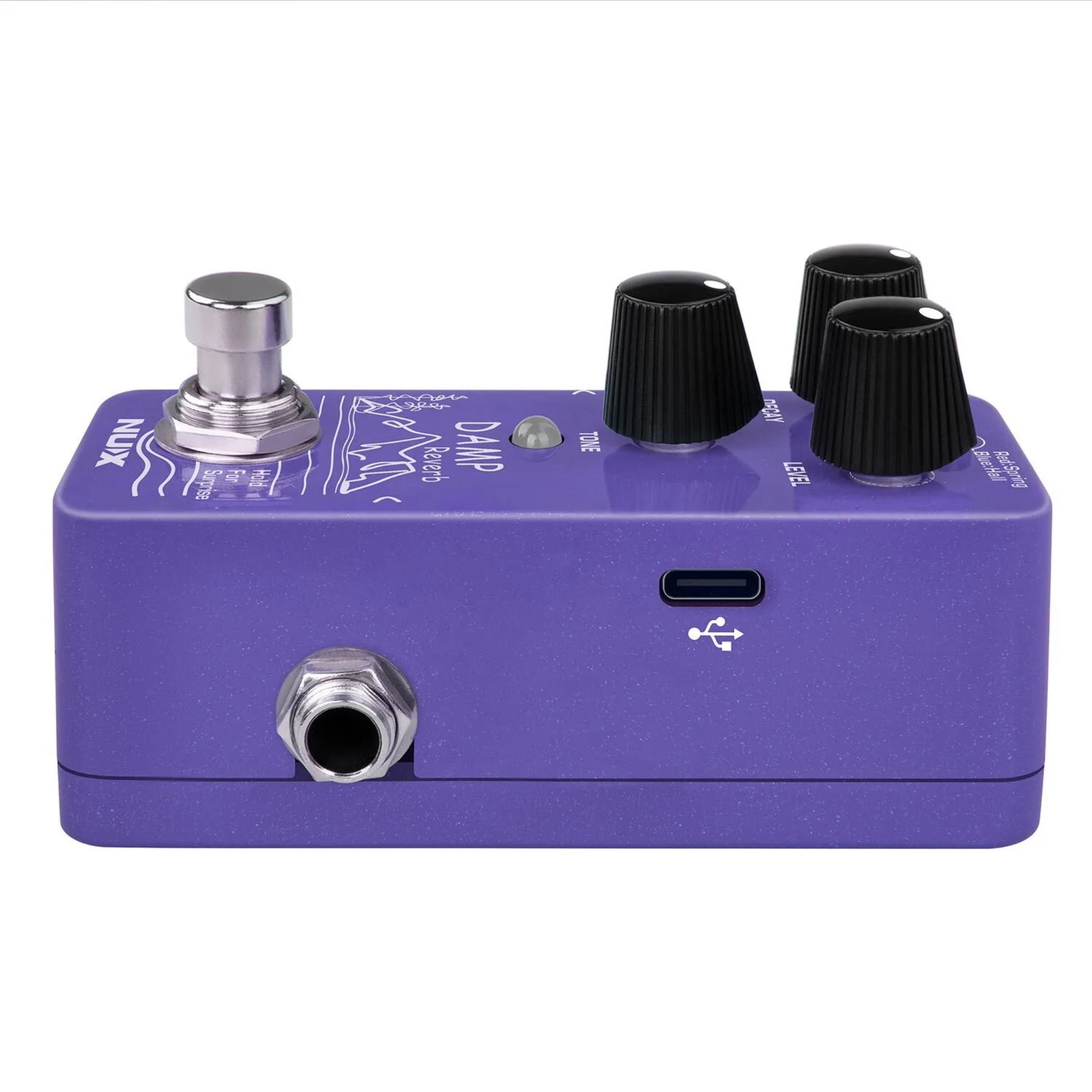

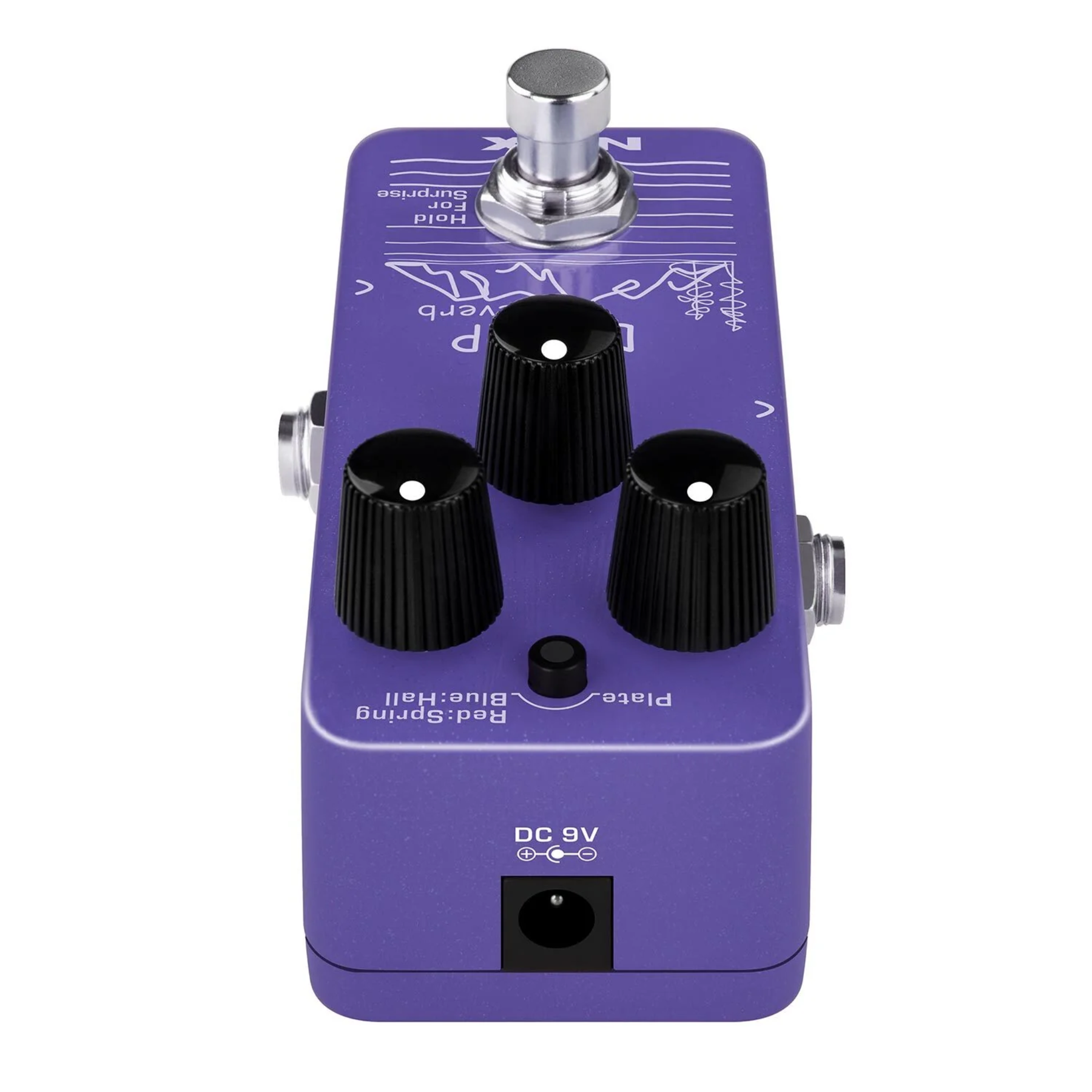

NuX NRV-3 Damp Mini Reverb Guitar Effects Pedal

DAMP Reverb (NRV-3) is a mini reverb pedal with 3 different reverb types, including Plate, Spring, and Hall. You can switch the types by tapping the tap switch.

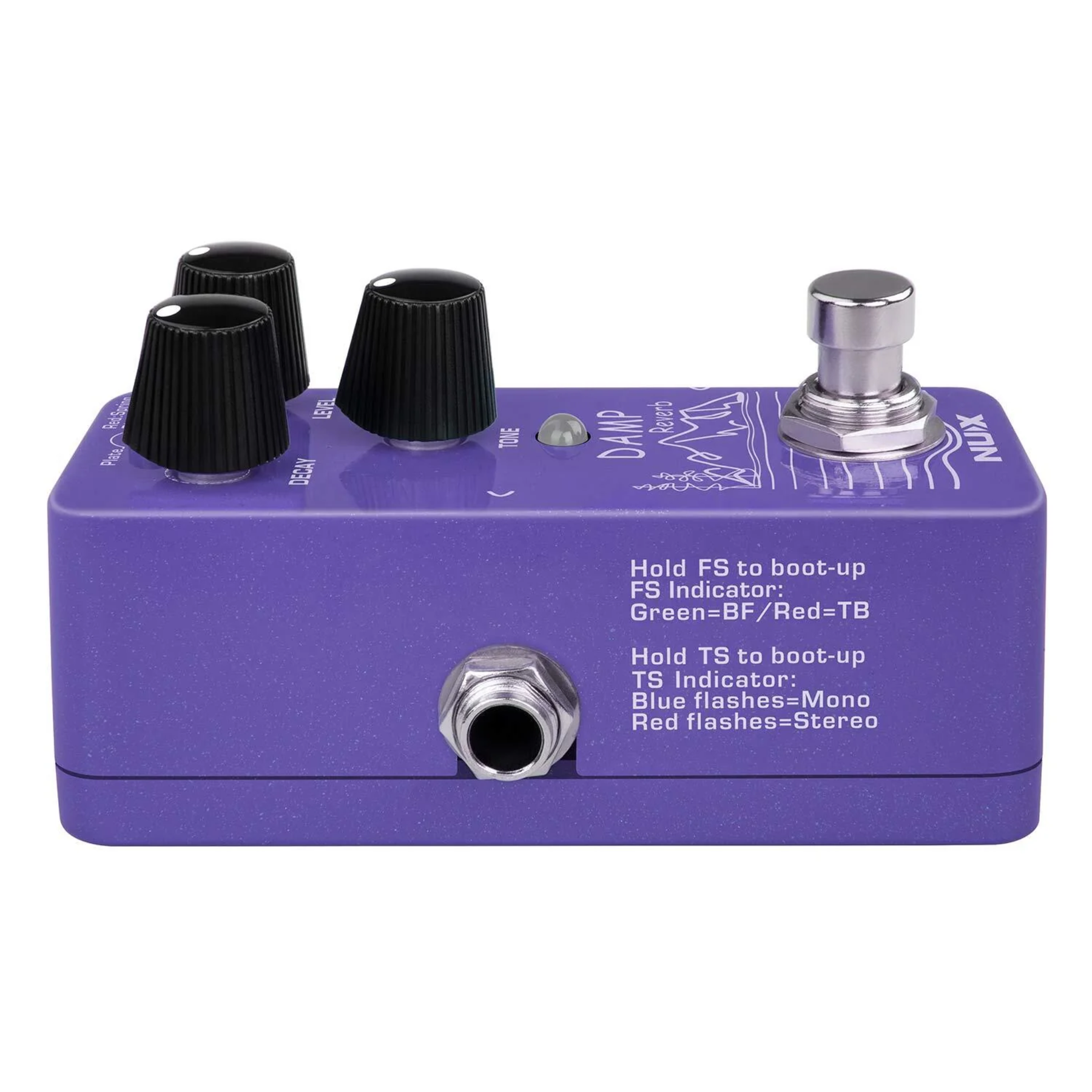

DAMP reverb offers True-bypass and Buffer-bypass (Trails), just hold the footswitch to boot up the pedal (do not connect USB). The footswitch indicator will show you the bypass status. (While you boot up the pedal, if the FS indicator flashes “Green”=BF, “Red”=TB.)

Mini but mighty! It also supports Stereo input & output. (Use a 1/4” TRS plug, and choose Stereo mode.)

Features:

• 3 reverb types in the mini enclosure.
• Plate: Clear ambience. Renowned studio reverb found on classic recordings.
• Spring: Bottom-heavy dimension flashback. Classic “surf” reverb; great for Rockabilly!
• Hall: Lush & large encompassing reverb with warm decay.
• Holding the footswitch for the secondary function. (Shimmer, Freeze)
• True-bypass or Buffer-bypass(Trails).
• Supports Stereo.
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency.

Specifications:

• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power：9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw： less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
