Ashly 4-Input Card for NE24.24M Protea DSP Audio Matrix Processor (Boxed)
NE24.24M-Input-Card
Regular price$559.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Ashly
- Shipping Calculated at checkout, most in stock products ship same day

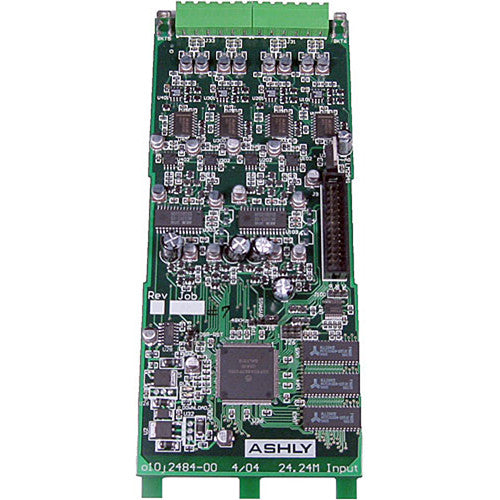

The 24.24M Input from Ashley is a four-input expansion module for the Protea 24.24M Matrix Processor base unit. Each card provides an additional four channels of input and brings with it dedicated DSP and analog-to-digital converters.
The card is field installable and require no additional programming from the base unit. Up to five input cards can be installed for a total of twenty-four inputs. Because of the on-board DSP, the base unit's processing is not impacted by the addition of the cards.
- Four-channel input expansion card for Protea 24.24M Matrix Processor
- Includes its own dedicated DSP and analog-to-digital converters
- Each input channel has fixed processing blocks that include a microphone preamp with +48V phantom power, gain, delay, fifteen EQ filters, gate, auto-leveler and ducker
- The Hi-/Low-pass filter block offers Bessel, Butterworth and Linkwitz-Riley filters with 12, 18, 24 and 48dB/octave slopes
- User installable
- Base unit automatically recognizing presence of the card without requiring additional programming
- Euroblock connectors
