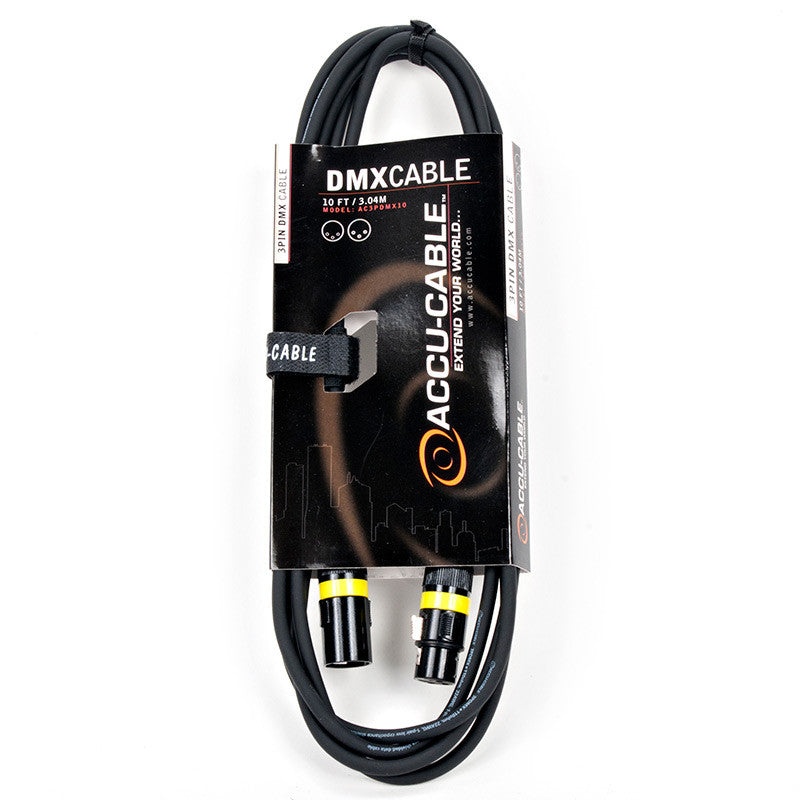

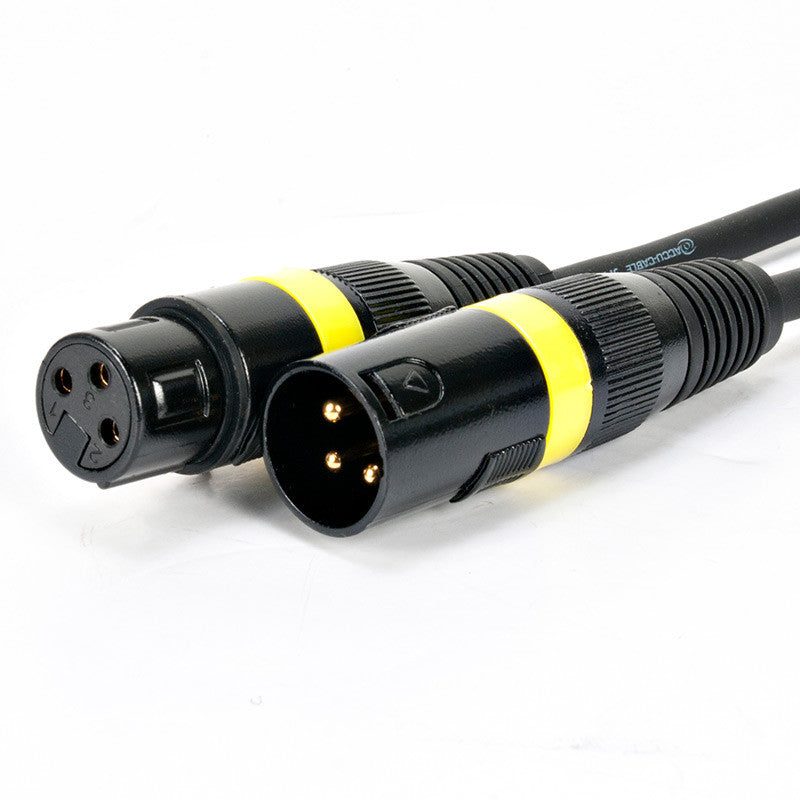

Accu-Cable Standard 3-Pin DMX Cable 10 Feet

AC3PDMX10 - 3-Pin DMX Cable 10 Feet

Specifications:

• Number of Pairs: 1
• Total Number of Conductors: 2
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: .0354"
• Conduct or Material: TC-Tinned Copper
• INSULATION:
• Insulation Material PE Polyethylene
• LAY LENGTH:
• Lay Length: 2.5"
• Direction: Left Hand Lay
• Twists: 4.8 per foot
• INNER JACKET:
• Inner Jacket Material: PE- Polyethylene
• Inner Jacket Diameter: .055"
• Pair Color Code: Black/White
• OUTER SHIELD:
• Outer Shield Trade Name: Duofoil
• Outer Shield Type: Tape/Braid
• OUTER SHIELD MATERIAL:
• Layer Number: 1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
• Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
• OUTER JACKET:
• Outer Jacket Material: PVC-Polyvinyl Chloride
• OVERALL NOMINAL DIAMETER:
• Overall Nominal Diameter: .229"
• MECHANICAL CHARACTERISTICS:
• Operating Temperature Range: (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight: 31 lbs/1000
• Minimum Bend Radius (Install): 3.2"
• Maximum Recommended Pull Tension: 72 lbs.
• ELECTRICAL CHARACTERISTICS:
• Nominal Characteristic Impedence: 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
• Nominal Velocity of Propagation: 66%
• Nominal Delay: 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
