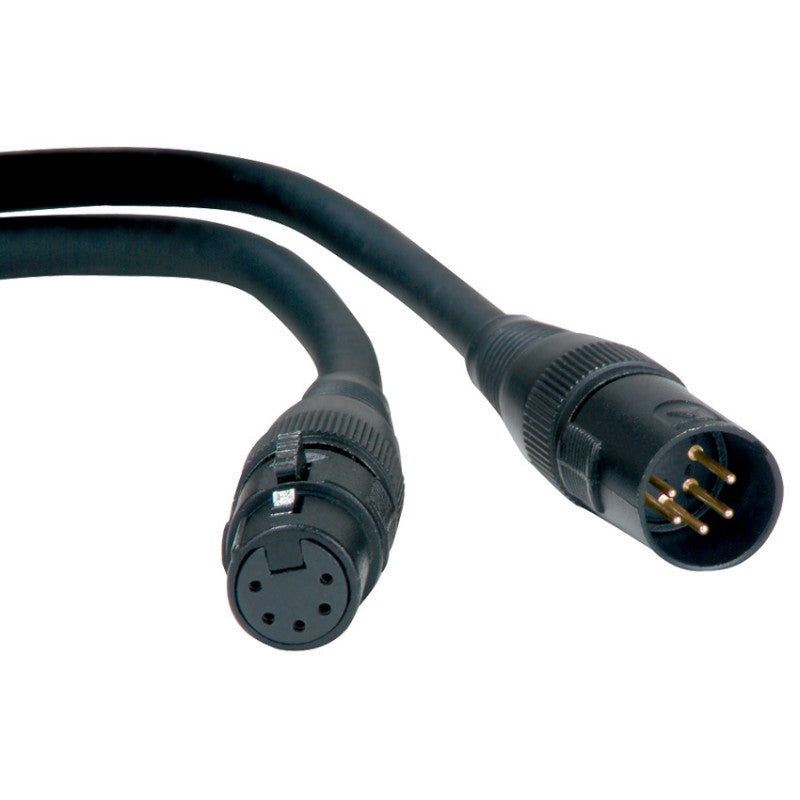

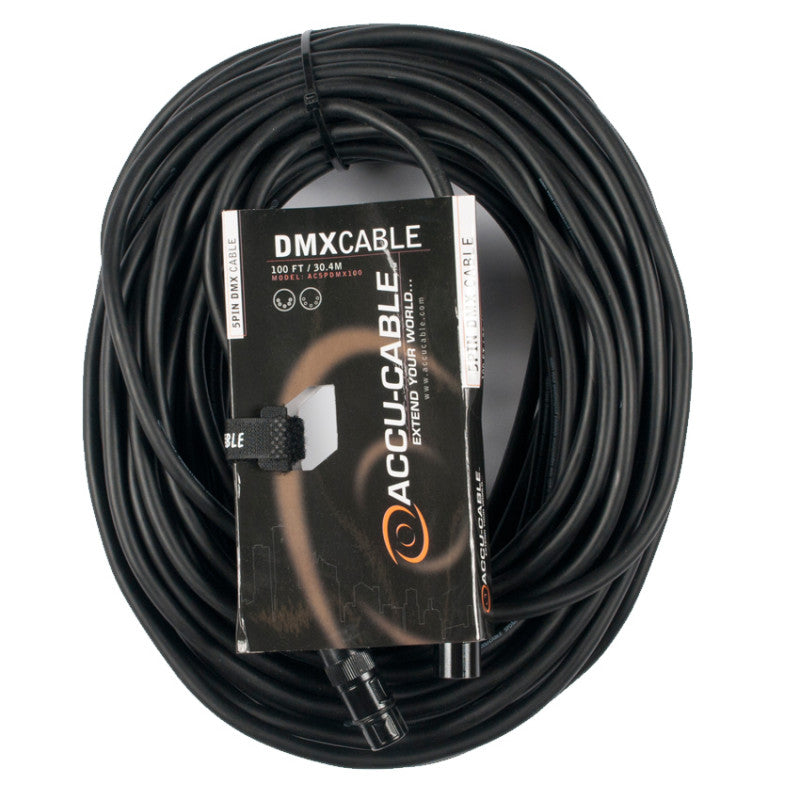

Accu-Cable Standard 5-Pin DMX Cable 100 Feet
AC5PDMX100
Regular price$129.98
In Stock
Available at our store, typically ships within 2 days
Available Online
Ready to ship
Payment plans from Affirm, learn more
- Accu-Cable
- Shipping Calculated at checkout, most in stock products ship same day
AC5PDMX100 - 5-Pin DMX Cable 100 Feet
Specifications:
- CONDUCTOR:
- Number of Pairs: 2
- Total Number of Conductors: 4
- AWG: 22
- Stranding: 0.15 x 19
- Conductor Diameter: .0354"
- Conduct or Material: TC-Tinned Copper
- INSULATION:
- Insulation Material PE Polyethylene
- LAY LENGTH:
- Lay Length: 1.1"
- Direction: Left Hand Lay
- Twists: 10.9 per foot
- INNER JACKET:
- Inner Jacket Material: PE- Polyethylene
- Inner Jacket Diameter: .055"
- Pair Color Code: Green/Black/Red/White
- OUTER SHIELD:
- Outer Shield Trade Name: Duofoil
- Outer Shield Type: Tape/Braid
- OUTER SHIELD MATERIAL:
- Layer Number: 1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
- Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
- OUTER JACKET:
- Outer Jacket Material: PVC-Polyvinyl Chloride
- OVERALL NOMINAL DIAMETER:
- Overall Nominal Diameter: .295"
- MECHANICAL CHARACTERISTICS:
- Operating Temperature Range: (-30 degrees C To + 75 degrees C)
- Bulk Cable Weight: 50 lbs/1000
- Minimum Bend Radius (Install): 3.5"
- Maximum Recommended Pull Tension: 22 lbs.
- ELECTRICAL CHARACTERISTICS:
- Nominal Characteristic Impedence: 110 Ohms
- Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
- Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
- Nominal Velocity of Propagation: 76%
- Nominal Delay: 1.6 Nanoseconds per foot
- Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
- Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft
- Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
- Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
