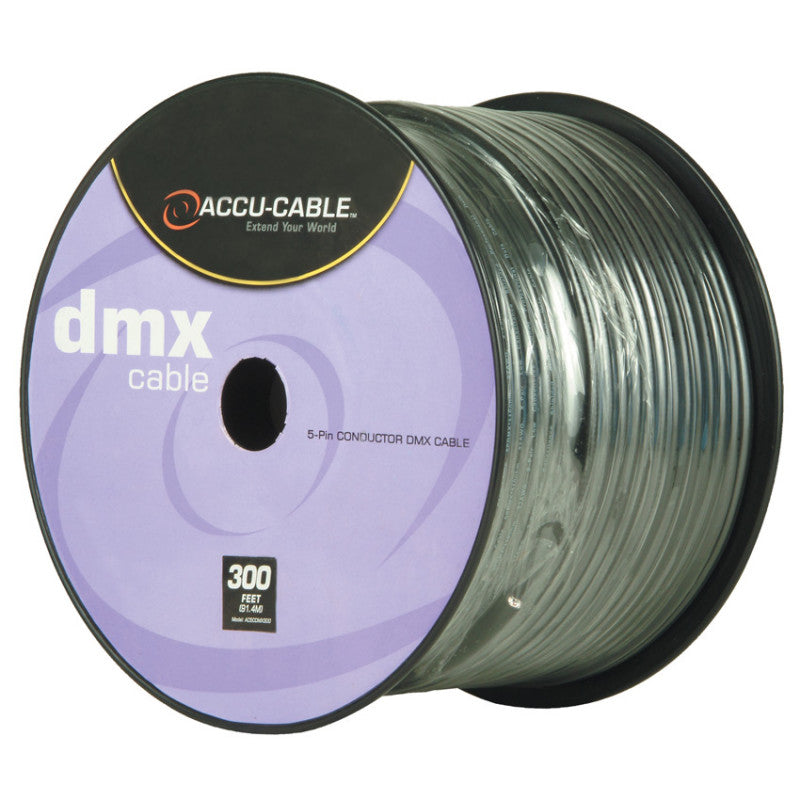

Accu-Cable Standard 5-Pin DMX Cable 300 Feet
AC5CDMX300
Regular price$453.98
Available to Order
Available from supplier Accu-Cable — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Accu-Cable
- Shipping Calculated at checkout, most in stock products ship same day
AC5CDMX300 5-Pin DMX XLR Bulk Cable 300 Feet
Specifications:
- Conductor:
- Number of Pairs: 2
- Total Number of Conductors: 4
- AWG: 22
- Stranding: 0.15 x 19
- Conductor Diameter: 0.0354"
- Conduct or Material: TC-Tinned Copper
- Insulation Material PE Polyethylene
- Lay Length:
- Lay Length: 1.1"
- Direction: Left Hand Lay
- Twists: 10.9 per foot
- Inner Jacket:
- Inner Jacket Material: PE-Polyethylene
- Inner Jacket Diameter: 0.055"
- Pair Color Code: Green/Black/Red/White
- Outer Shield:
- Outer Shield Trade Name: Duofoil®
- Outer Shield Type: Tape/Braid
- Outer Shield Material:
- Layer Number: 1
- Material Trade Name: Duofoil®
- Type: Tape
- Material: Aluminum Foil-Polyester
- Coverage: 100%
- Layer Number: 2
- Material Trade Name: Duofoil®
- Type: Braid
- Material: TC-Tinned Copper
- Coverage: 85%
- Outer Jacket Material: PVC-Polyvinyl Chloride
- Overall Nominal Diameter: 0.295"
- Mechanical Characteristics:
- Operating Temperature Range: (-30ºC to +75ºC)
- Bulk Cable Weight: 50 lbs/1000 ft.
- Minimum Bend Radius (Install): 3.5"
- Maximum Recommended Pull Tension: 22 lbs
- Electrical Characteristics:
- Nominal Characteristic Impedence: 110 Ohms
- Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/ft
- Nominal Cap Cond. To Other Cond. & Shield @ 1KHz: 23 pF/ft
- Nominal Velocity of Propagation: 76%
- Nominal Delay: 1.6 Nanoseconds per foot
- Nominal Conductor DC Resistance @ 20ºC: 24 Ohms/1000ft
- Nominal Outer Shield D C Resistance @ 20ºC: 15 Ohms/1000 ft
- Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100ft
- Maximum Recommended Current: 2.1 Amps per conductor @ 25ºC
