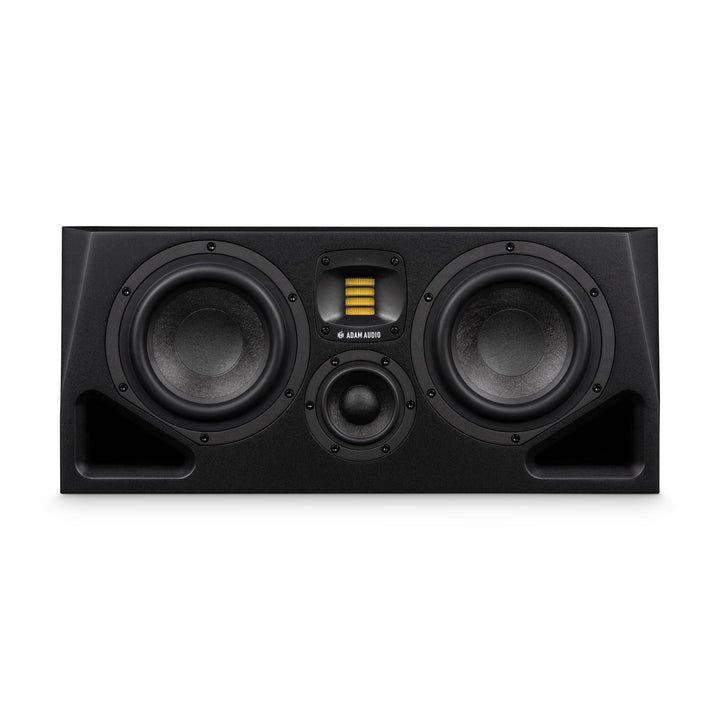

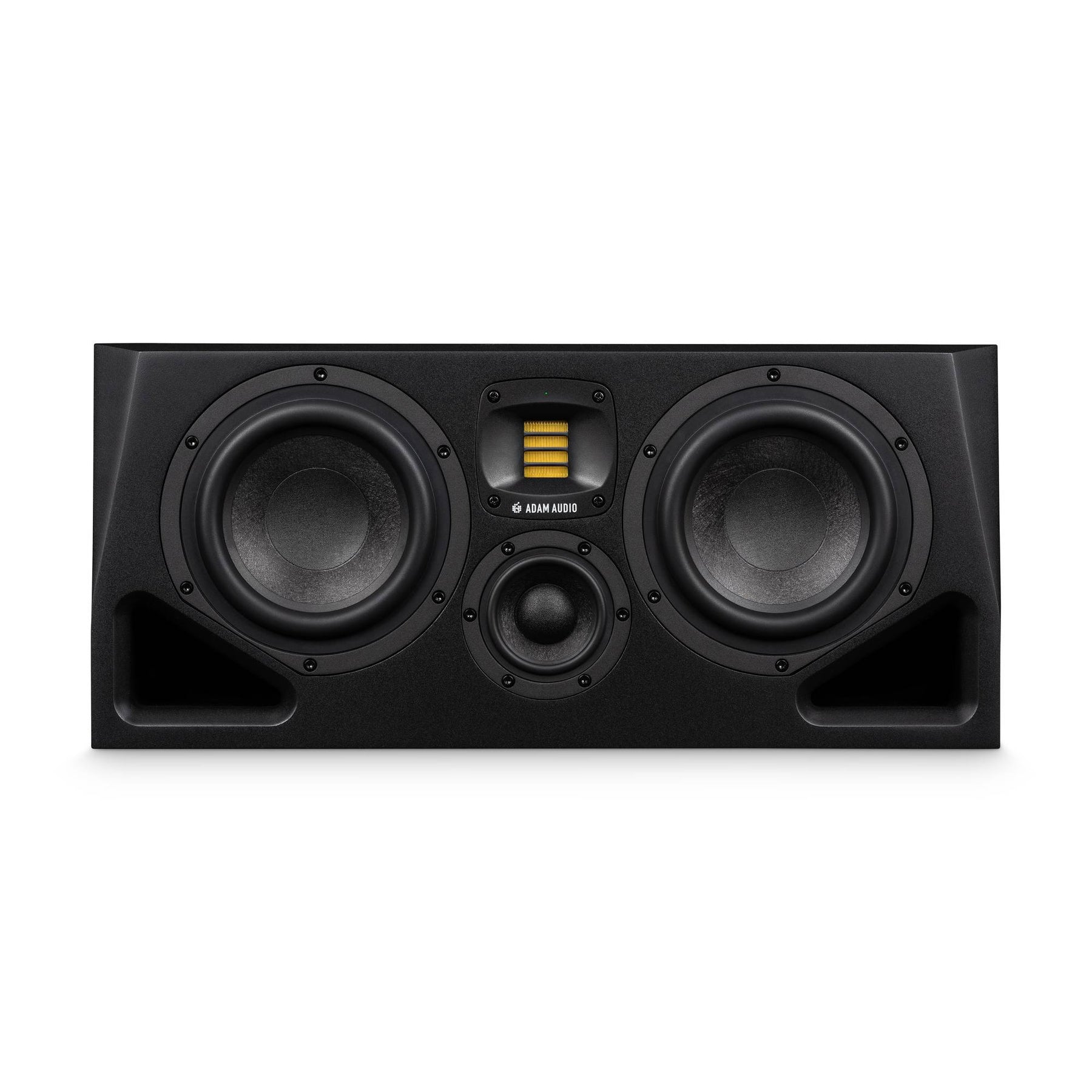

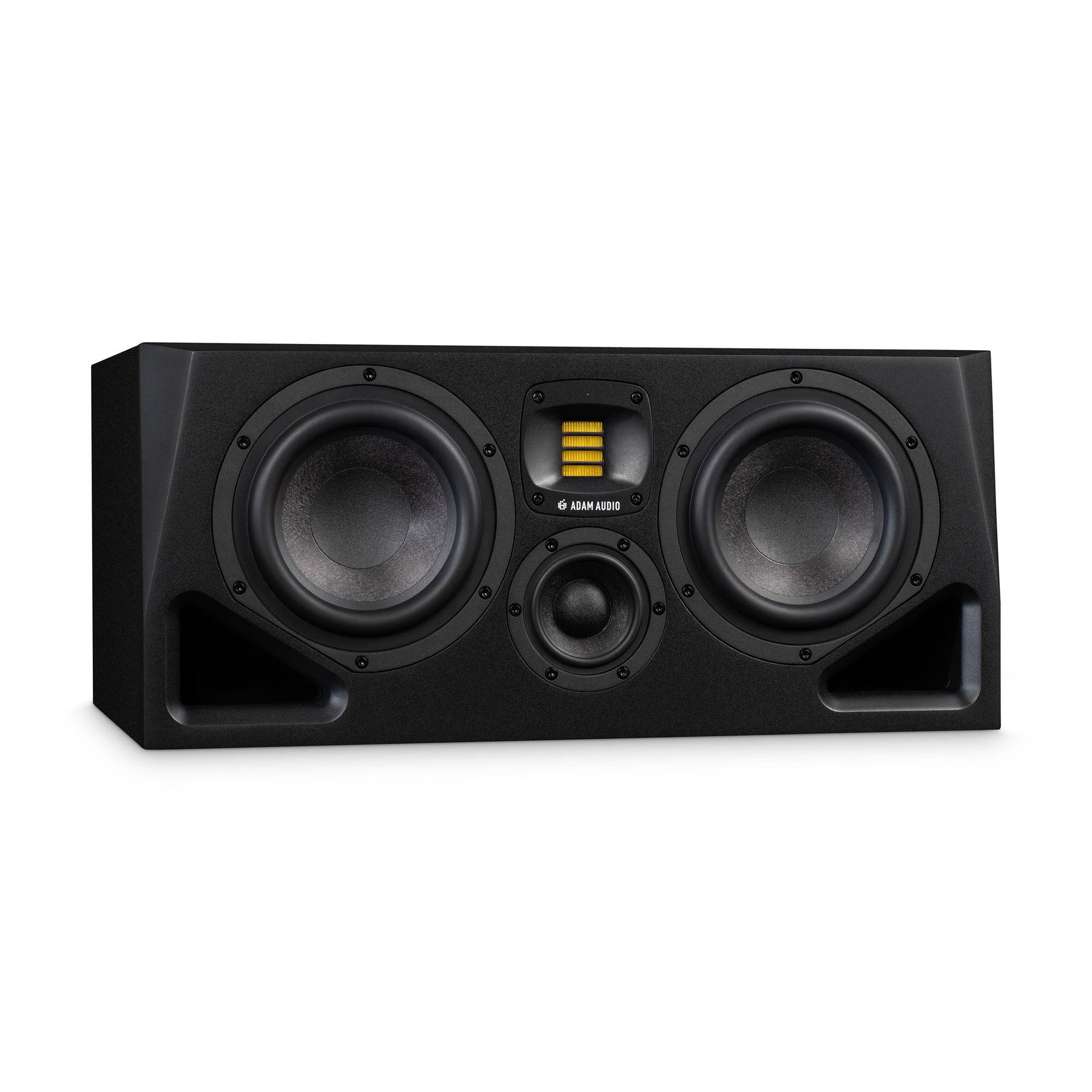

Overview of Adam A77H 3-way 2x7" Woofer Monitor
An advanced successor to the A77X, the A Series A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound. Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio's X-ART tweeter, the A77H delivers an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.
Technical Specifications
• Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
• Midrange Driver: 3.5" MLM midrange driver
• Midrange Voice Coil ⌀: 33 mm / 1.3"
• Woofer: 2x 7" MLM mid-woofer
• Woofer Voice Coil ⌀: 38 mm / 1.5"
• AD convertor: 24-bit
• Internal sample rate: 96 kHz
• Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
• Crossover frequency: 400Hz - 3.0 kHz
• Power rating: 500 W max
• Analog Inputs (balanced): 1x XLR
• Analog Inputs (unbalanced): 1x RCA
• Weight: 17.1 kg / 37 lbs 11 oz
• Cabinet Height x Width x Depth: 236 mm x 531 mm x 350 mm (9 1/4" x 20 7/8" x 13 3/4")
• AC Input Voltage: 100 - 240V, 50/60 Hz
What's In The Box:
- 1 x Loudspeaker
- 1 x Power cable
- 1 x Quick start guide
Features
• Rotatable HPS Waveguide & X-ART tweeter
• Multi-layer mineral woofer
• Hybrid amplification
• DSP-based electronics
• Room adaptation
• Two voicing selections
• A Control software for real-time remote control
• Room correction & Sonarworks integration
Music City Canada is an authorized reseller for ADAM products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
