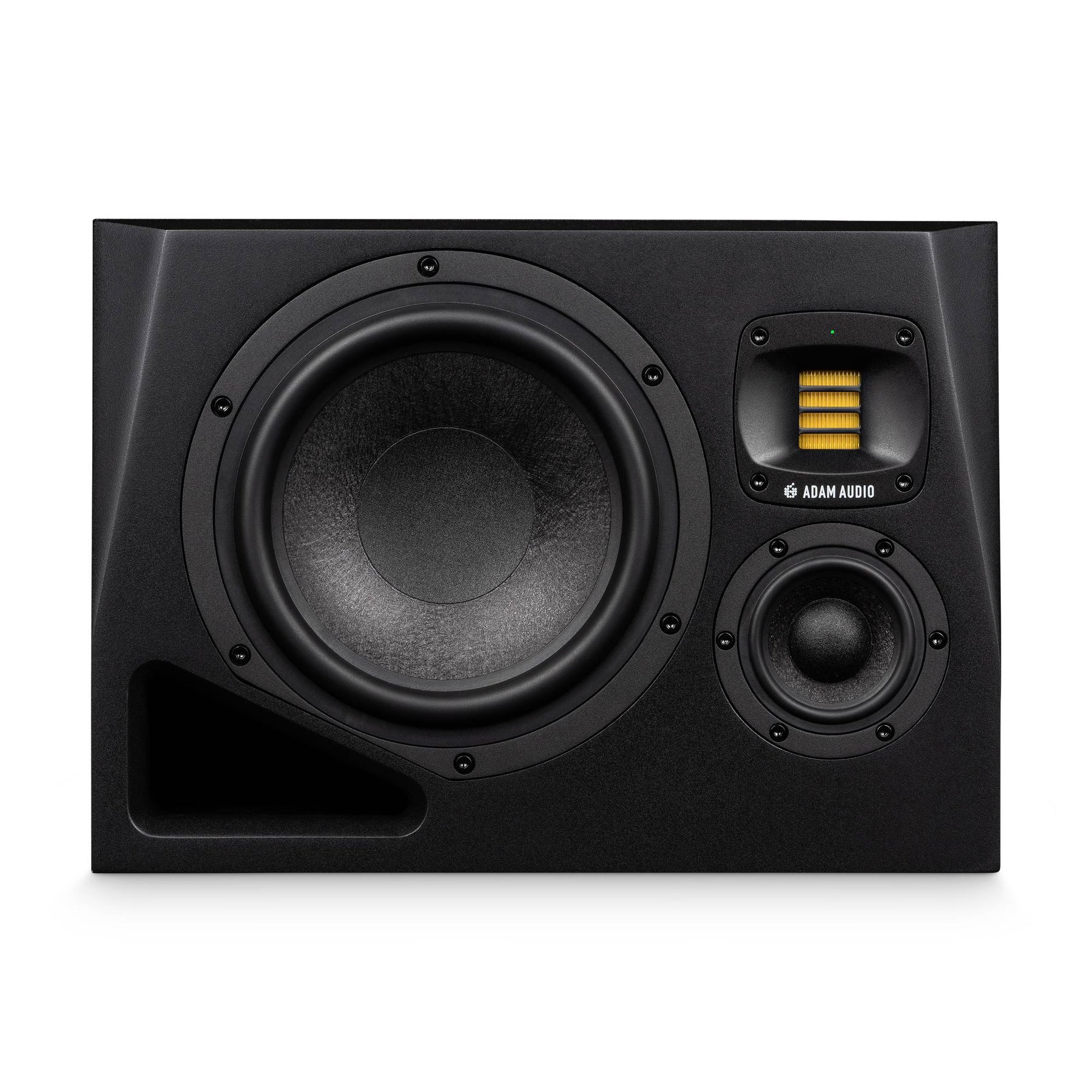

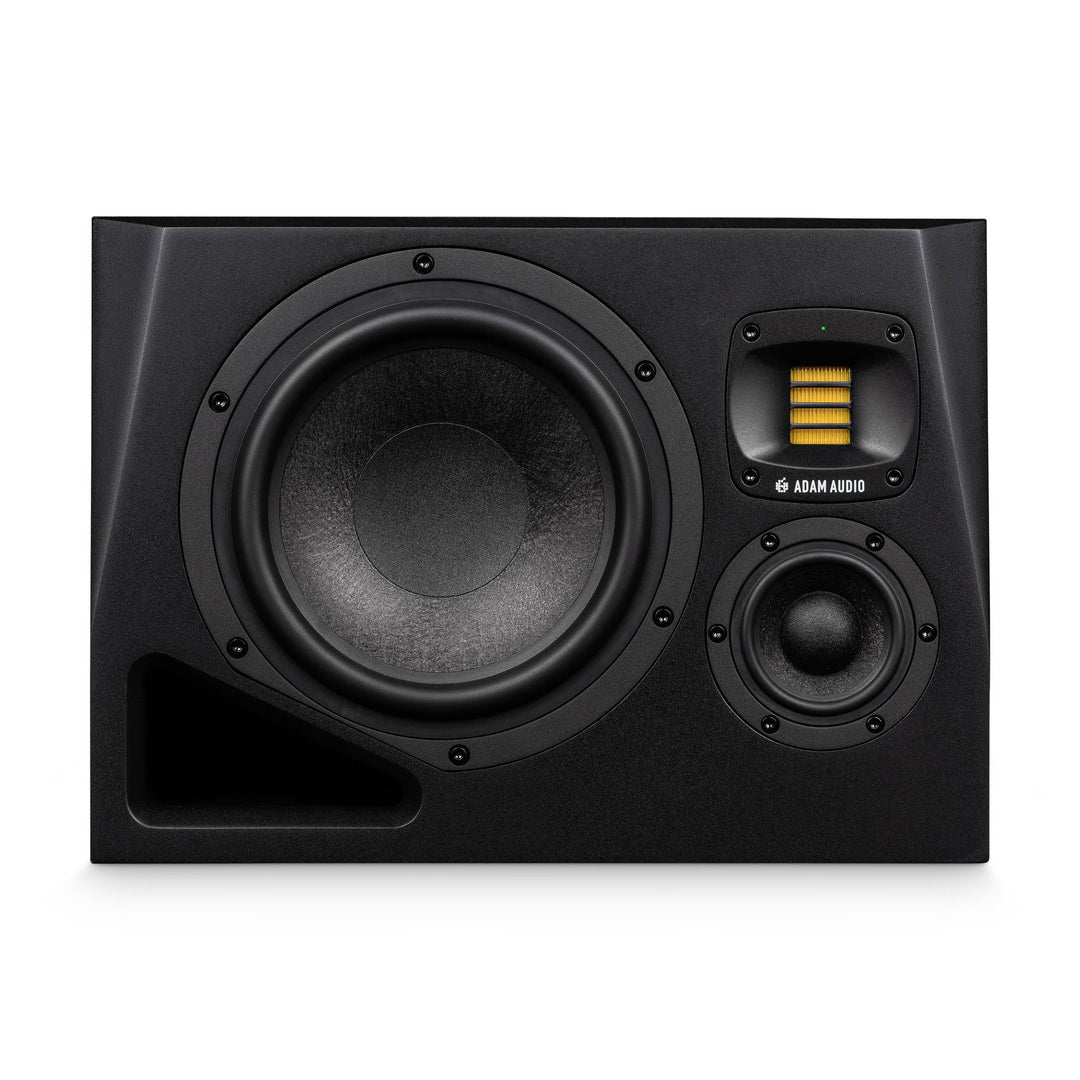

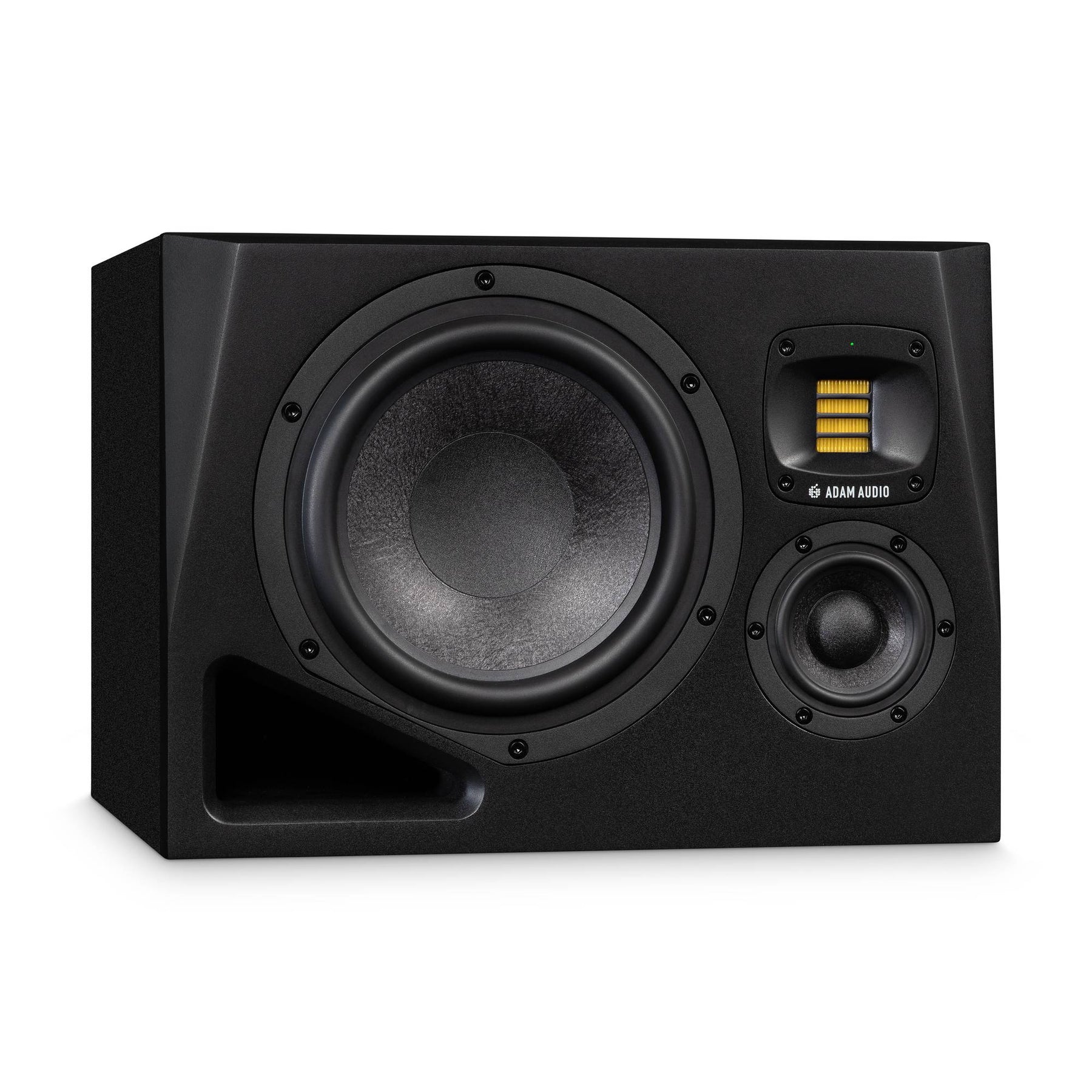

Overview of Adam A8H A-Side 3-way 8" Woofer Monitor
The pinnacle of the A Series, the A8H is a three-way speaker that delivers the extremely accurate and analytical sound required for critical-listening environments. The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fibre woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response. Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you're looking for the most detailed representation of your audio.
Technical Specifications
• Tweeter: Rotatable X- ART Tweeter + HPS Waveguide
• Midrange Driver: 3.5" MLM midrange driver
• Midrange Voice Coil ⌀: 33 mm / 1.3"
• Woofer: 1x 8" MLM mid-woofer
• Woofer Voice Coil ⌀: 38 mm / 1.5"
• AD convertor: 24-bit
• Internal sample rate: 96 kHz
• Amplifier power RMS: 250 W (Woofer) + 70 W (Midrange Driver) 20 W (Tweeter)
• Crossover frequency: 400Hz - 3.0 kHz
• Power rating: 500 W max
• Analog Inputs (balanced): 1x XLR
• Analog Inputs (unbalanced): 1x RCA
• Weight: 13.6 kg / 30 lbs
• Cabinet Height x Width x Depth: 274 mm x 382 mm x 329 mm (9 3/4" x 15" x 13")
• AC Input Voltage: 100 - 240V, 50/60 Hz
What's In The Box:
- 1 x Loudspeaker (A-side, Left)
- 1 x Power cable
- 1 x Quick start guide
Features
• Rotatable HPS Waveguide & X-ART tweeter
• Multi-layer mineral woofer
• Hybrid amplification
• DSP-based electronics
• Room adaptation
• Two voicing selections
• A Control software for real-time remote control
• Room correction & Sonarworks integration
