Adam Audio AD-SUB10PRO Sub10 Pro Subwoofer (Black)

Combining advanced DSP with powerful low-frequency reproduction, the Sub10 PRO provides a solid foundation for stereo and multichannel monitoring. As part of ADAM Audio's latest generation of networked subwoofers, it pairs a high-excursion 10 woofer with an FEA-optimised bass port and a high-performance Class D amplifier to deliver tightly controlled bass.

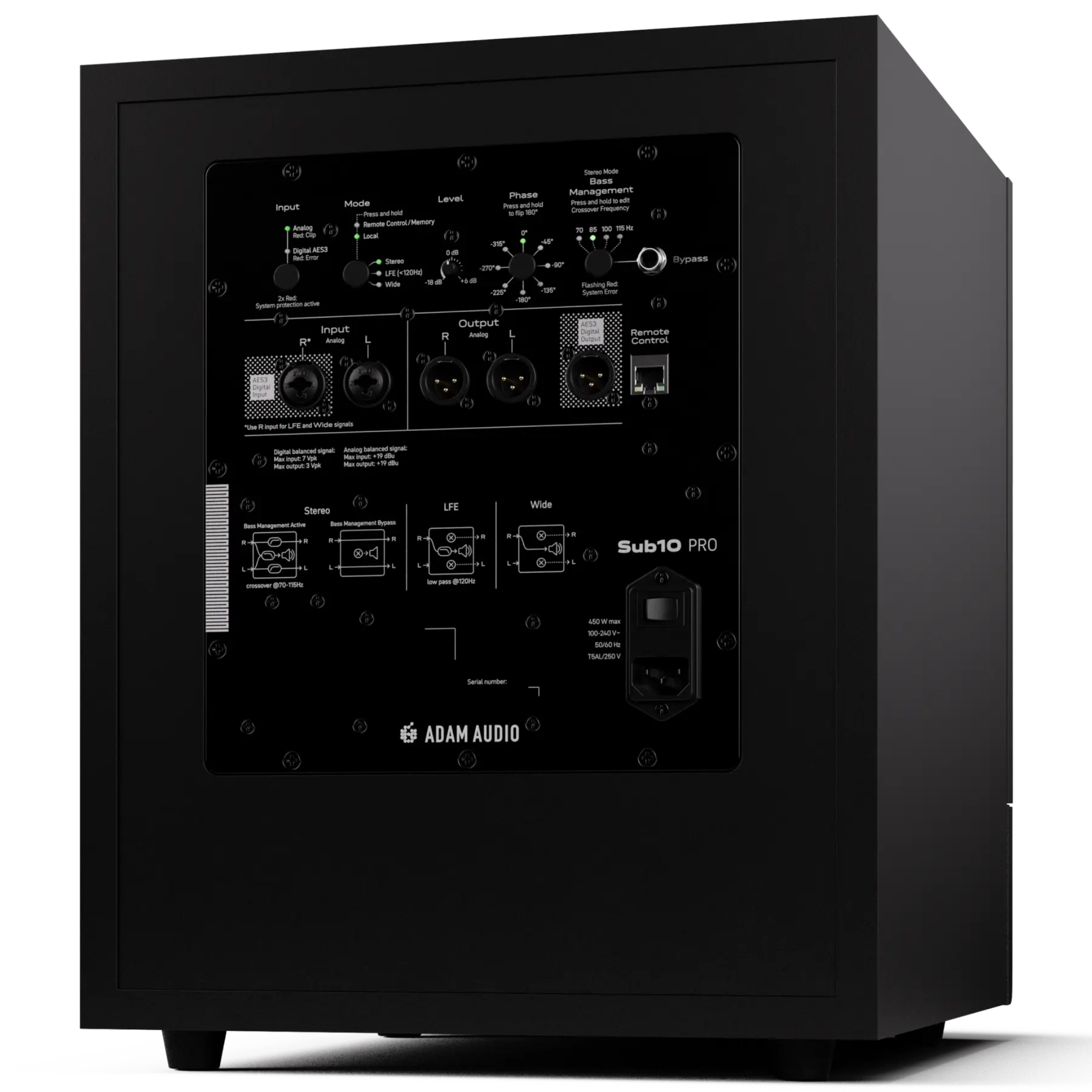

A comprehensive range of professional connectivity and control options can be found on the Sub10 PRO's backplate. Alongside precise phase and crossover adjustment, it provides AES3 digital I/O, balanced analog I/O via XLR and TRS, and a dedicated footswitch input for activating or bypassing bass management.

Network connectivity facilitates extensive management and calibration options through ADAM Control, the dedicated software for networked ADAM Audio products. Users can time-align the subwoofer, fine-tune its response across four bands of parametric EQ, and run Sonarworks calibration profiles directly on its integrated platform. ADAM Control also enables firmware updates, allowing future functionality to be added to the subwoofer.

The Sub10 PRO offers three operating modes to accommodate different monitoring applications. Stereo provides straightforward routing for conventional 2.1 systems, while the dedicated LFE setting is optimised for immersive workflows such as Dolby Atmos. Wide mode allows full-range playback, providing flexibility for equalisation elsewhere in the signal chain.

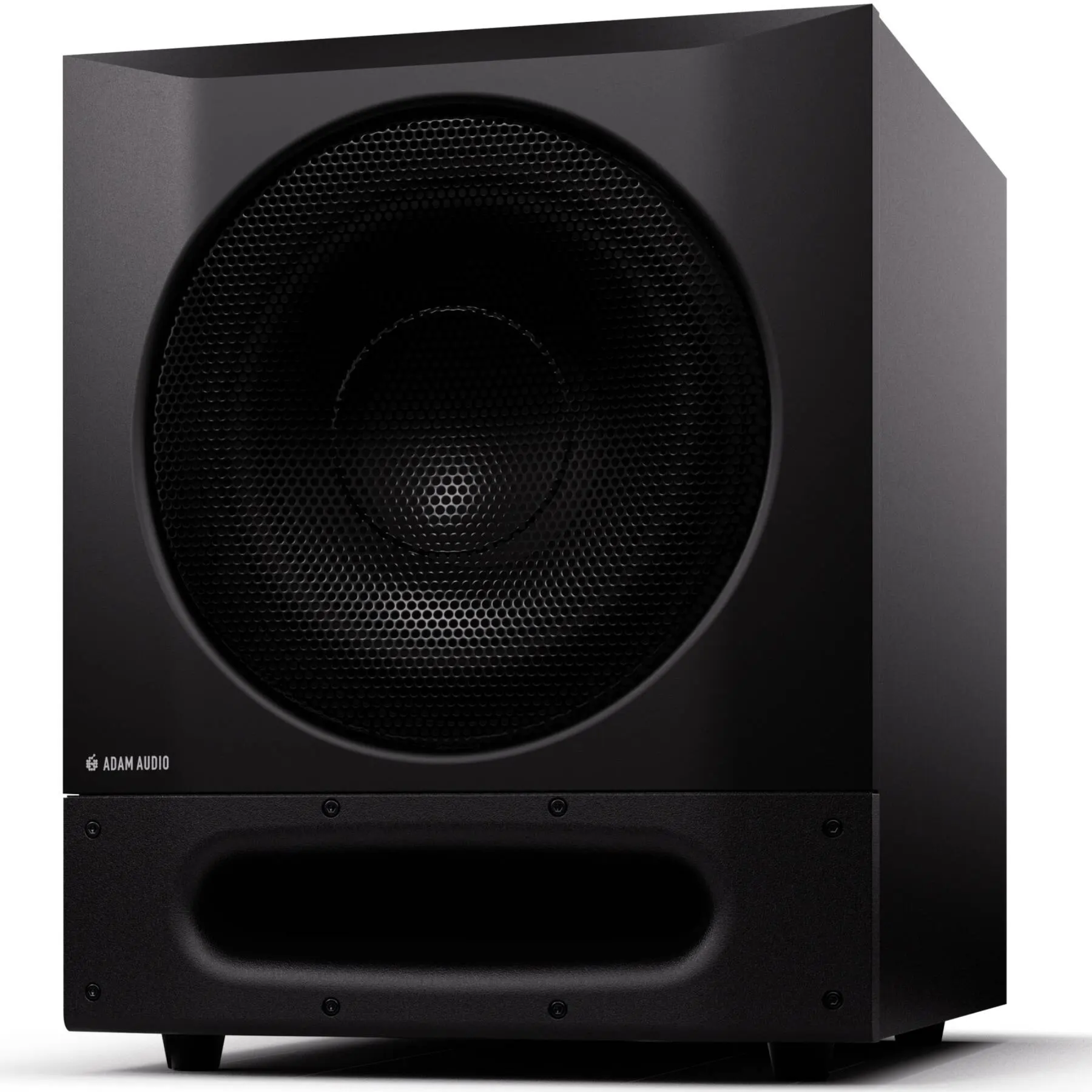

The extensive technology inside is housed in a robust wooden enclosure, with a sturdy metal grille providing protection for the 10" woofer. Designed for long-term use, the Sub10 PRO comes with a 2-year warranty, which can be extended to 5 years through product registration.

ADAM Control
ADAM Control is the calibration and management platform for all networked ADAM Audio products. The extensive tuning and phase controls of the Sub10 PRO can be attenuated remotely and in real time over Ethernet. ADAM Control is available to download free of charge for Windows and MacOS from: https://downloads.adam-audio.com/home

Once downloaded and installed, you can control multiple subwoofers and A Series monitors at once, precisely adjusting equalization, and delay settings from various listening positions in your studio space. ADAM Control also facilitates firmware updates, allowing new features to be added to the Sub10 PRO over time.

Automated Room Correction via Sonarworks
The Sub10 PRO is designed to complement ADAM Audio's Sonarworks-ready, award-winning line of A Series monitors. It features a platform on the subwoofer's DSP that can host advanced filters created in SoundID Reference. Using Sonarworks and a measurement mic, you can calibrate stereo and multichannel A Series and Sub10 PRO systems with ease. *Sonarworks and measurement mic sold separately.

High-Performance Woofer
The heart of the Sub10 Pro is its high-excursion, low-distortion woofer. Made from a fibre-reinforced paper material, the cone further strengthened by an elasticated rubber surround that permits considerable excursion while maintaining its mechanical design. The precision geometry of the ferrite magnet system is completed by demodulation rings which stabilise voice coil inductance. The considered design of the woofer extends to the advanced ventilation of all moving parts to minimize unwanted noise.

Digital Connectivity
AES3 is a professional standard for transmitting digital audio between interfaces and loudspeakers. Both the AES3 input and output connectors on the Sub10 PRO can carry 2 channels of digital audio up to 24-bit resolution and sample rates of 96 kHZ. By maintaining signal in the digital domain fewer conversions are required and higher quality audio can be transmitted over longer distances.

Powerful Amplification & Unfaltering DSP
The Sub10 PRO features a Class D amplifier that drives the woofer in a highly efficient manner at all listening levels. A smartly designed limiter works in tandem with the amp so the woofer can be driven to its extremes while always protecting the circuitry and mechanical components. The amplifier and limiter are managed by DSP-based electronics which benefit from consistent crossovers, filters, and equalization. Signal conversion is handled by audiophile-grade converters, carefully selected by ADAM Audio to deliver outstanding performance.

Multichannel Ready
Alongside the Sonarworks platform for multichannel calibration, the Sub10 PRO offers two operational modes that were designed for immersive audio. LFE mode features a specifically designed 120 Hz cutoff that conforms to Dolby's advice for LFE channels in Atmos systems. Wide mode allows the subwoofer to play full range, offering the maximum amount of flexibility for bass management elsewhere in the chain.


In the Box

- 1x Sub10 PRO
- 1x IEC power cable
- Quick start guide and safety and warning sheet

Specifications

Acoustics
Frequency Response @ -3 dB: 22 - 264 Hz
Frequency Response @ -6 dB: 21 - 300 Hz
Max SPL in half space at 1 m with sine bursts (average 50 - 100 Hz) at 3% THD (rms): 106 dB
Max SPL in half space at 1 m with sine bursts (average 25 - 50 Hz) at 10% THD (rms / peak): 102 / 105 dB
Max peak SPL in half space at 1 m with IEC-weighted noise (Stereo mode): 113 dB
Dolby D.A.R.D.T. max peak SPL (full range / 85 Hz bass managed): 113 dB
Crossover Frequencies: 70, 85, 100, 115 Hz
Self-generated noise (@ 10 cm, level = +6 dB / Wide Mode): < 20 dB (A)

Drivers
Woofer Basket Diameter: 10"
Woofer Voice Coil Diameter: 45 mm
Woofer Cone Material: Paper

Audio Input Connectors
Analog: 2 x XLR / TRS combi
Digital: XLR AES3
Input Impedance (Analog): 25 kOhm
Input Impedance (Digital): 110 Ohm
Max. Input Level: 19 dBu

Audio Output Connectors
Analog: 2 x XLR
Digital: XLR AES3

Signal Processing
AD converter: 24-bit
Internal sample rate: 96 kHz
Delay range, resolution: 0 - 10 ms / 32-bit
Protection: Independent peak and thermo limiters; Over Current Protection; Over Temperature Protection, Under Voltage Protection

Amplification
Woofer amplifier Type: PWM
Woofer amplifier Peak (10% THD, limiter deactivated): 325 W
Woofer amplifier RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm

Control Options (via backplate)
Input sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
Level: -18 dB to +6 dB
Input selection: analog, digital
Phase: 0°, -45°, -90°, -135°, -180°, -225°, -270°, -315°
Bass Management: 70, 85, 100, 115 Hz
Operational Modes: Remote Control, Local / Stereo, LFE (< 120Hz), Wide
Footswitch: yes (Bypass), TS-connection latched

Control Options (via network)
Networking connector: RJ45
Connection type: Ethernet
Communication protocol: AES70 / TCP
Control software: ADAM Control
Advanced Room Adaptation: 4 x PEQ, level, delay
Third-party calibration compatibility: Import from Sonarworks SoundID Reference

General Data
Cabinet design: Front Fire and front ported
Cabinet material: Vinyl wrapped MDF and painted MDF front panel
Power consumption; max, standby450 W max, 2.5W standby
AC input voltage: 100 - 240V, 50/60 Hz
Power rating: 450 W max
Peak in-rush current: 6.8 A
Operating conditions: -10° C to +40° C (+14° F to +104° F); < 75% RH, non-condensing
Dimensions (H x W x D): 450 x 360 x 450 mm (17.7" x 14.2" x 17.7")
Weight: 22.8 kg (50 lb 4 oz)
