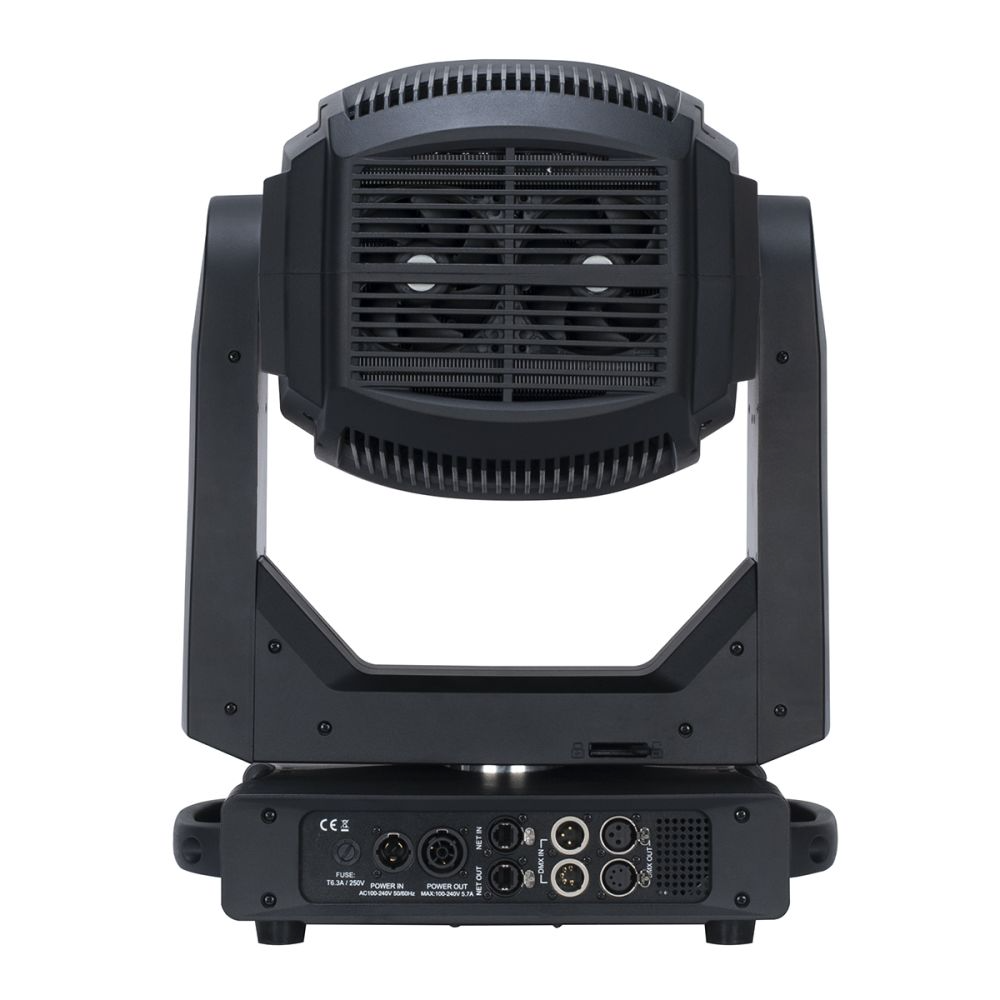

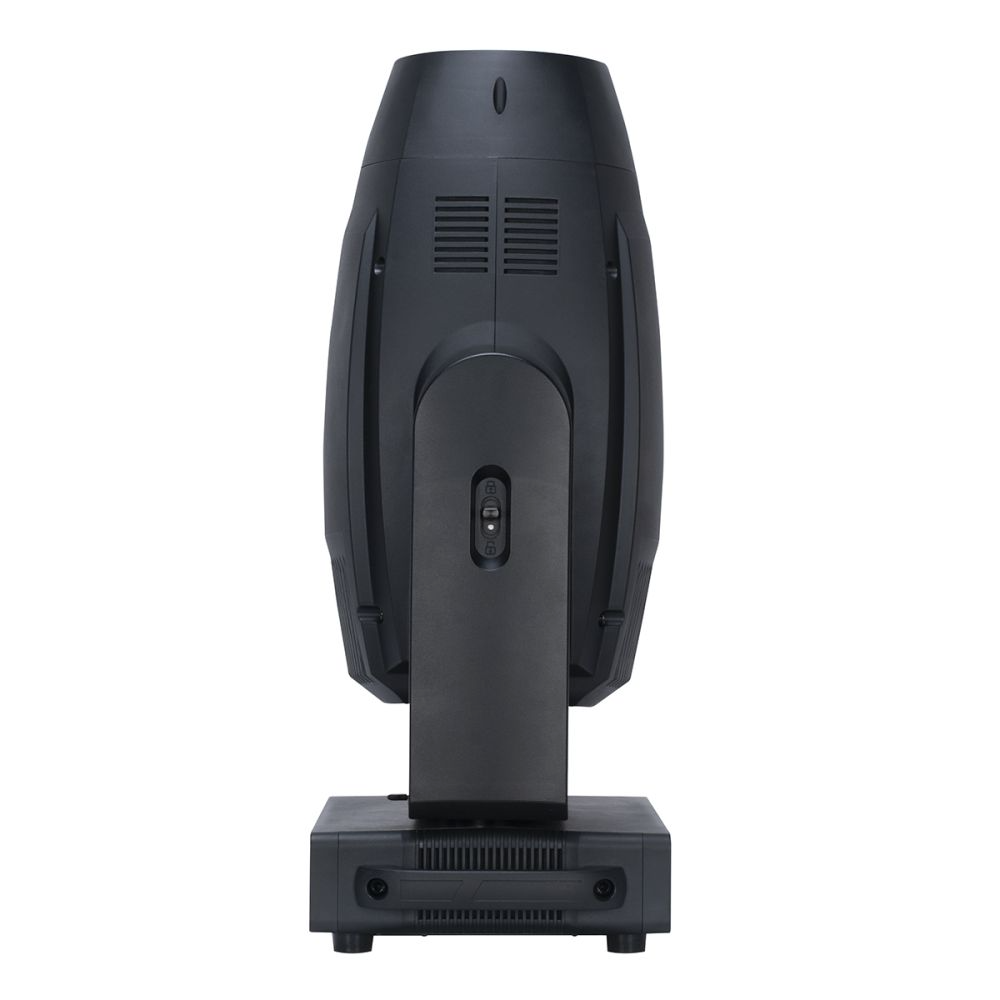

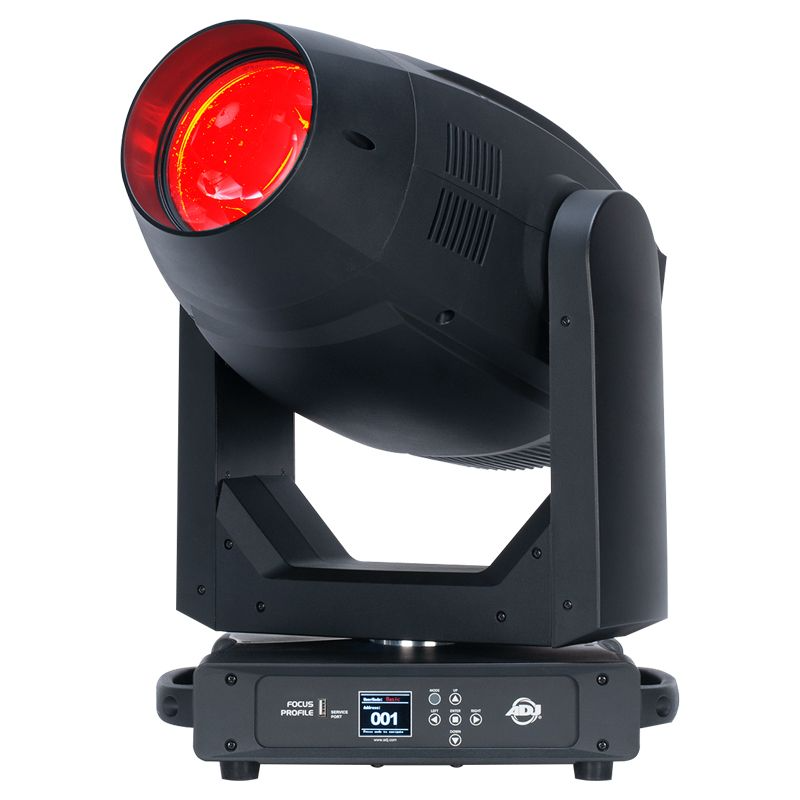

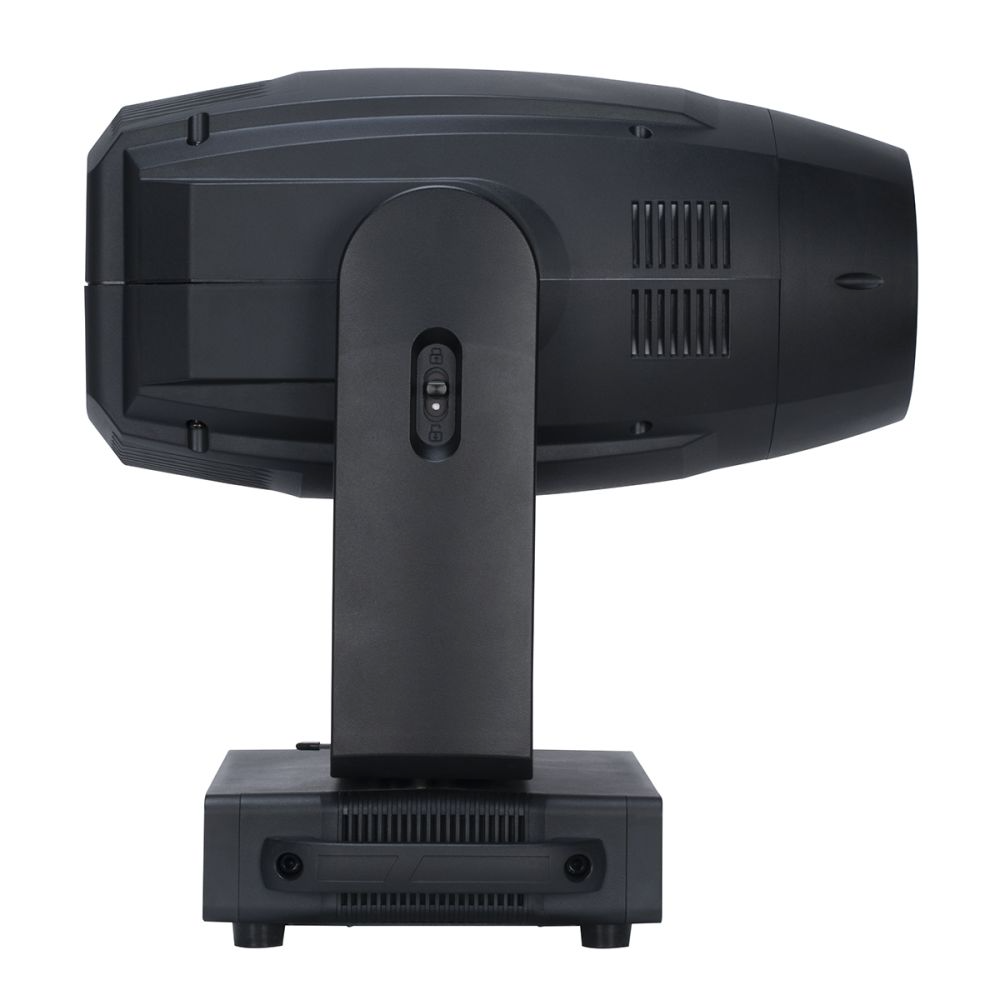

ADJ Focus Profile 400W LED Moving Head with Framing Shutters

The brightest and most feature-rich Focus Series fixture to date, the Focus Profile is a professional caliber automated profile luminaire designed for theatrical, concert touring and event production applications. It features a potent 400W LED engine, with a native color temperature of 6,700K and a CRI in excess of 70, coupled with an exhaustive collection of beam-shaping tools. These include four, independently controllable, rotating framing shutter blades, which can be used to precisely shape the light output.

The unit offers full CMY color mixing together with variable CTO color temperature control (2700K to 6700K) and an additional color wheel loaded with 6 dichroic filters comprised of four primaries together with CTB and CRI filters. Two separate GOBO wheels feature 7 replaceable, indexed-rotating GOBOs, and 8 static GOBOs, respectively, while two bi-directional rotating prisms (3-facet and 4-facet) allow for the creation of a wide variety of aerial effects. Motorized focus, iris and zoom (7 – 45°) together with a replaceable (medium) frost filter and an animation wheel complete the lineup of features offered by this powerful and versatile luminaire.

SOURCE
400W LED Engine
20,000 Hour Average LED Life
PHOTOMETRIC DATA
20,000 Total Lumens
6,700K, >70CRI (without CRI Filter)
6,200K >87CRI (with CRI Filter)
44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)
1,767 LUX 164 FC @16.4’ (5m) (45° Beam)
EFFECTS
4 Rotating Framing Shutters, +/-60°,  plus shape rotation 3-Facet Circular & 4-Facet Linear Rotating Prisms Replaceable Medium Frost FilterAnimation WheelMotorized Zoom (7~45-degrees)Motorized FocusMotorized IrisElectronic Dimming & Strobe (1-20Hz)
COLOR
Full CMY color mixingVariable CTO (2700K to 6700K)Colors Wheel with 6 dichroic colors
GOBOS
(2) Gobo Wheels#1 - (7) Interchangeable Rotating-Indexing Gobos#2 - (8) Static-Stamped Gobos
 CONTROL / CONNECTIONS(3) DMX Channel Modes (36 / 40 / 51)RDM (Remote Device Management)6 Button Touch Control PanelFull Color 180° Reversible LCD Menu Display8 / 16 Bit Resolution Adjustable Movement3 & 5 pin XLR DMX In/OutRJ45 Ethernet In/Out (Art-NET)Locking In/Out power connectionsWith Wired Digital Communication Network PAN / TILTPan: 540-degreesTilt: 270-degreesPan & Tilt Locks
SIZE / WEIGHT
Length: 15.7" (400mm)Width: 10.2" (259mm)Vertical Height: 26.1” (664mm)Weight: 61.2 lbs. (27.75kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60HzMax Power Consumption: 560WMax ambient temperature: -13°F to 113°F (-25°C to 45°C)Max housing temperature: 136°F (58°C)
TECHNICAL DATA
DB Rating @ 3ft.: 49dBBTU: 0.53BTU/H: 1,909.60
APPROVALS / RATINGS
CE | ETLIP20
INCLUDED ACCESSORIES
(1) Power cable(2) Omega brackets(1) Heavy frost filter (JMJ03)
