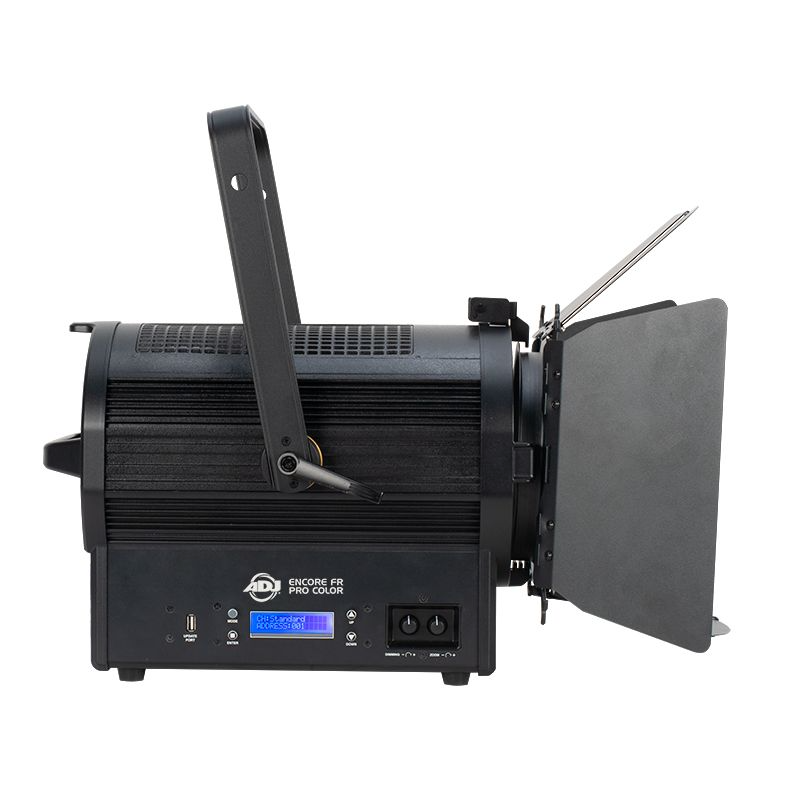

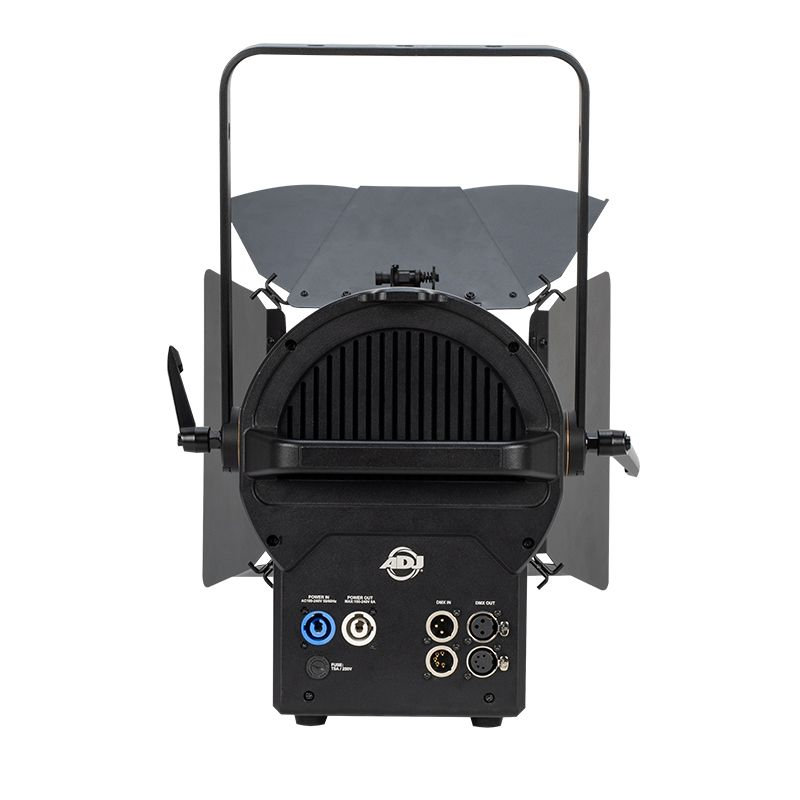

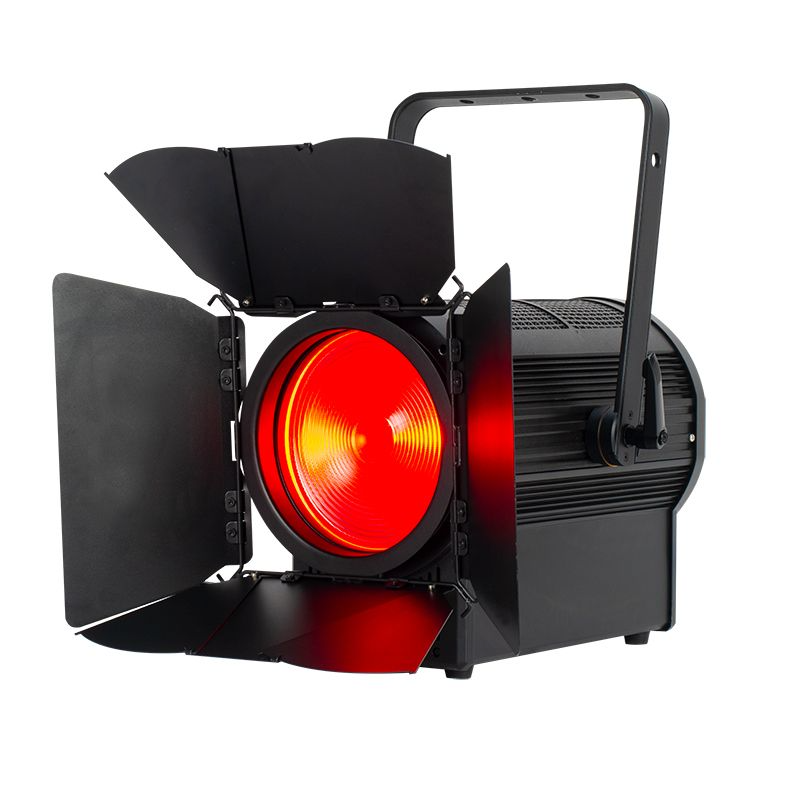

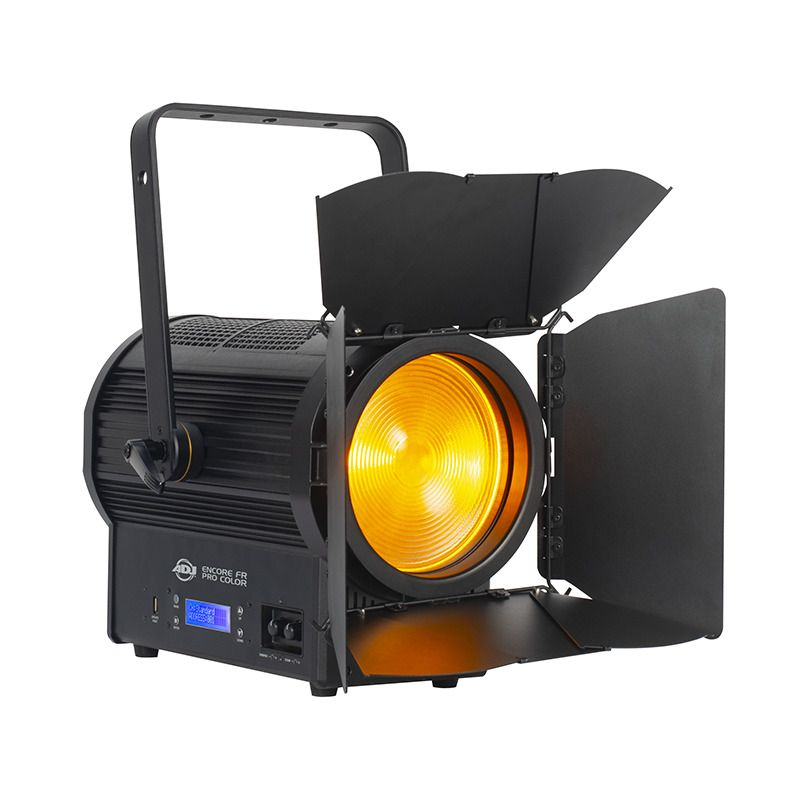

ADJ 7 Inch 400W RGBALC LED Fresnel Fixture w/Barn Doors & Zoom

The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, cyan and lime LEDs. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K.

50,000 Hour Average LED Life

PHOTOMETRIC DATA:

9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

9940 LUX, 923 FC @ 9.8’ (3m) (Zoomed In / Full ON)2756 LUX, 256 FC @ 9.8’ (3m) (Zoom Out / Full ON)

Beam Angle: 9° to 37.5°

Max Field Angle: 49.8°

CRI: 97.8

EFFECTS

Motorized Zoom

Electronic Dimmer and Strobe (1-20Hz)

Variable 16-bit Dimming Modes and Curves

Virtual CMY Colour Mixing DMX Control Modes

Tunable White Colour Temperature from 2400K to 8500K

62 Preset White Colour Temp Macros (2400K to 8500K)

62 Preset Colours on Virtual Colour Wheel

64 Preset RGBA Colour Macros

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer and Shutter

Dimmer and Zoom Rotary Dials

5 DMX Channel Modes (14/17/19/13CMY/19CMY)

Adjustable Refresh Rate (68 presets from 900-25,000Hz)

6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre, and Stage 2)

Dim Speed Options (0.1s to 10s)

4 Dim Curves (Square, Linear, Inv. Squa, and S. Curve)

4 Button Control Panel LCD Menu Display

RDM (Remote Device Management)

3/5 pin DMX I/O

Locking Power I/O

USB Service Port

With Wired Digital Communication Network

DIMENSIONS:

LxWxH: 16.6" x 14.18" x 19.29" / 421.9mm x 360.1mm x 490mm

Weight: 21.8lbs / 9.9kg

ELECTRICAL / THERMAL

AC 100-240V - 50/60 Hz

420W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

Power Linking: 2Pcs @ 110V / 5Pcs @ 240V
