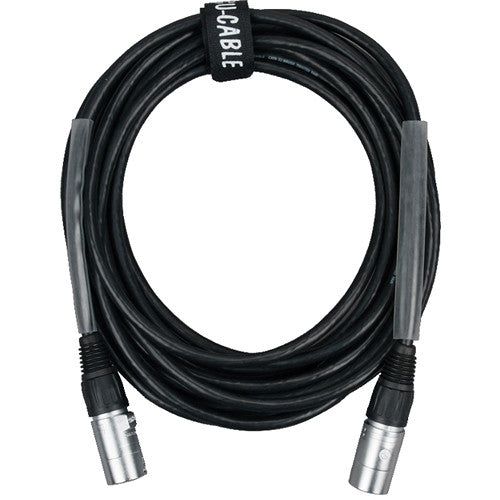

ADJ CAT6PRO5 Cat6 etherCON Cable - 5ft
CAT6PRO5
Regular price$59.98
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
The CAT6 Pro cable range is a 8 conductor, twisted pair cable complying to the CAT6, T-568B standard. The CAT6 Pro cable has a plastic separator between the different pairs, which follows the most stringent specifications for crosstalk and noise. Because of this, CAT6 Pro cable supports frequencies up to 250 Mhz. The maximum cable run length according to the standards is limited to 328 feet (100 meters).
Specifications
- Inner conductor: Bare COPPER 19 x 0.12
- Inner conductor section: 0.22mm²
- Isolation: HDPE Ø 0.95mm
- T-568B, Straight Cable Wiring : Blue (Pin 4), Blue-White (Pin 5), Orange (Pin 2), Orange-White (Pin 1), Green (Pin 6), Green-White (Pin 3), Brown (Pin 8), Brown-White (Pin 7)
- Number of conductors: 8
- Conductor Twisting: Yes
- Outer jacket: Flexible PVC
- Outer jacket color: Black
- Outer jacket dimensions: Ø 6.5mm
- American Wire Gauge: 24 AWG
