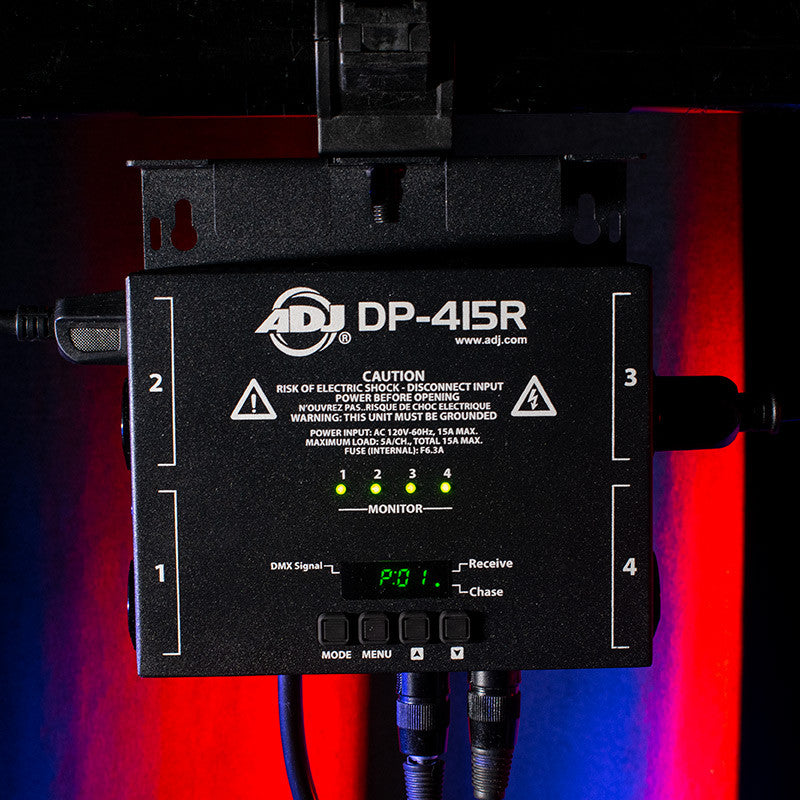

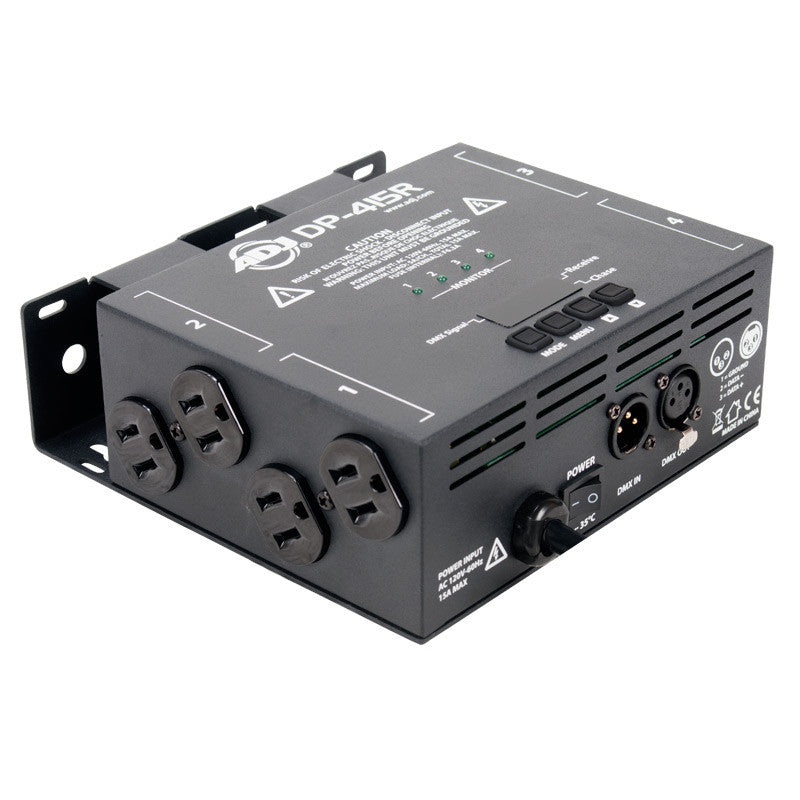

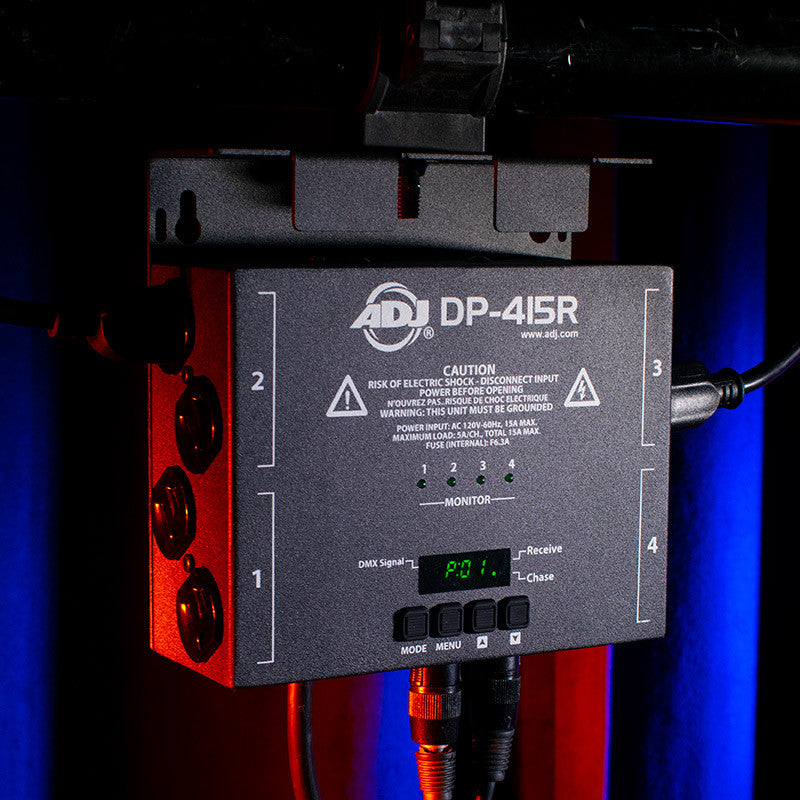

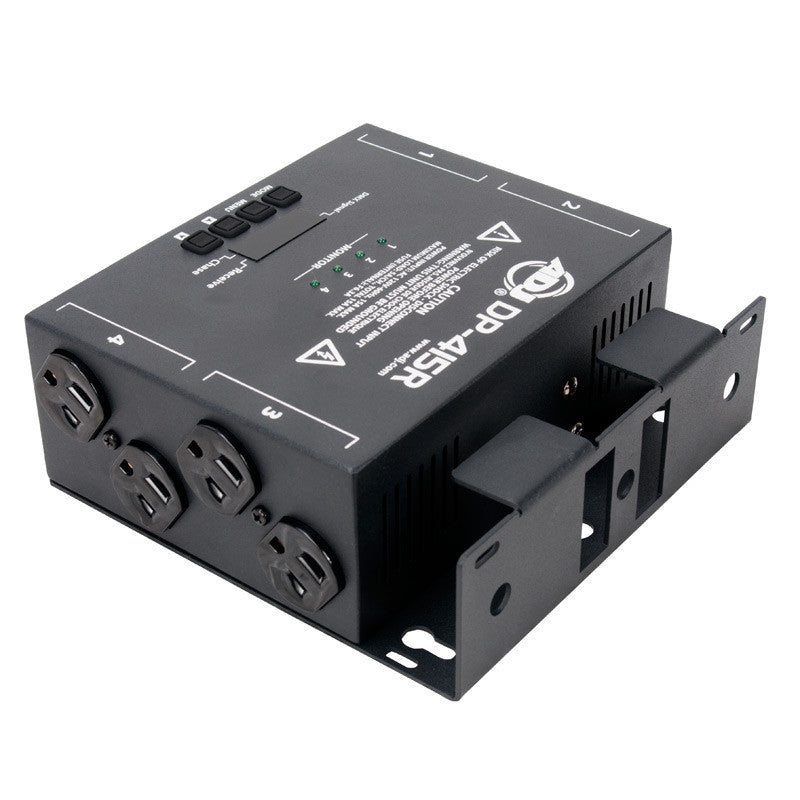

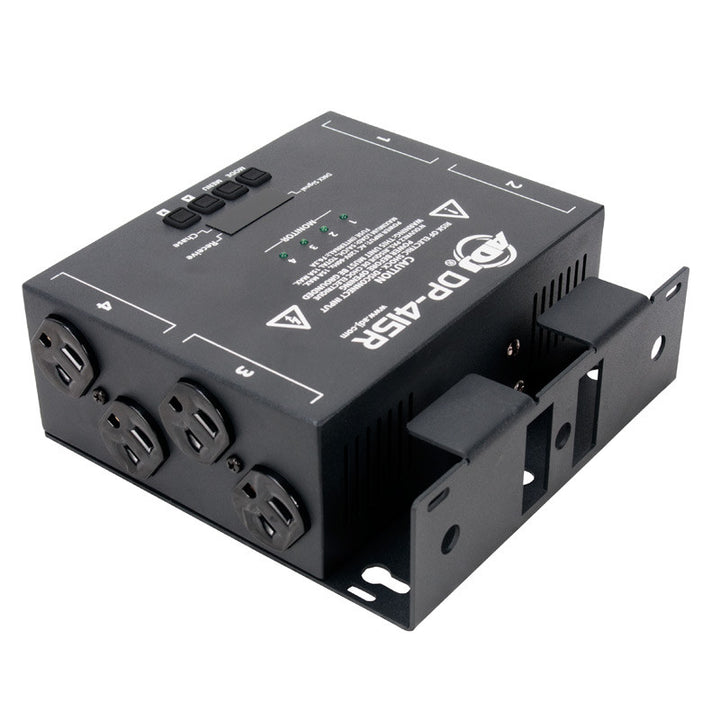

Overview of ADJ DP 415R DMX Lighting Dimmer Pack
ADJ's DP-415R is a versatile 4-channel dimmer/switch pack. Control up to 8 fixtures. Now with a 4-button digital display menu and is RDM (Remote Device Management) compliant. The built-in hanging bracket is reversible to hang on truss or can be used with a clamp.
The ADJ DP-415R is a compact, portable 4-channel DMX dimmer/switch pack that has eight 3-prong 15 Amp Edison socket (2 for each channel) allowing you to be able to control up to 8 fixtures. The pack has a 4-button digital display menu and is RDM (Remote Device Management) compliant.
The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. It is also wall mountable. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.
Specifications:
- Compact 4-Channel DMX Dimmer/Switch Pack
- 2x 3-prong Edison plugs per channel (8 total plugs)
- On/Off power switch
- 3-pin DMX In/Out
- Digital Display with 4 Menu Control Buttons
- Supports RDM (Remote Device Management)
- Assign as a dimmer pack or switch pack
- Changeable hanging bracket to hang on truss
- Wall mountable
- LED “On” indications
- Max Power: 15A Total, 5A per channel (120V)
- Dimensions (LxWxH): 10.25” x 8.25” x 3” / 260x209x76mm
- Weight: 6 lbs./2.72 kgs.
Music City Canada is an authorized reseller for ADJ products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
