ADJ ELECTRAPIX-PAR-7-PAK 6 × ELECTRAPIX-PAR-7 w/ Charging Case
ELECTRAPIX-PAR-7-PAK
Regular price$11,534.98
Available to Order
Available from supplier ADJ — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day

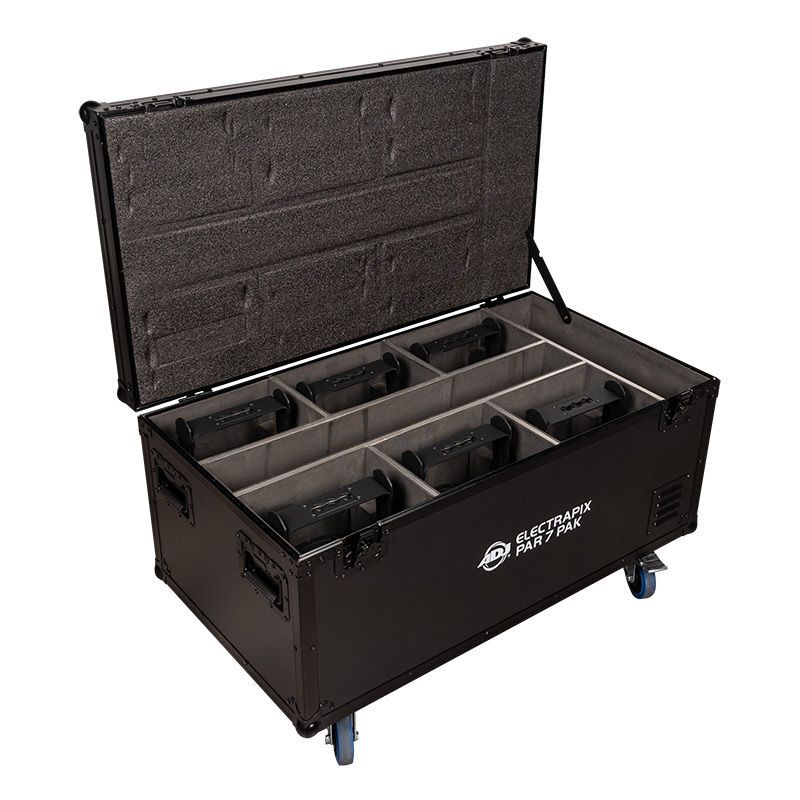

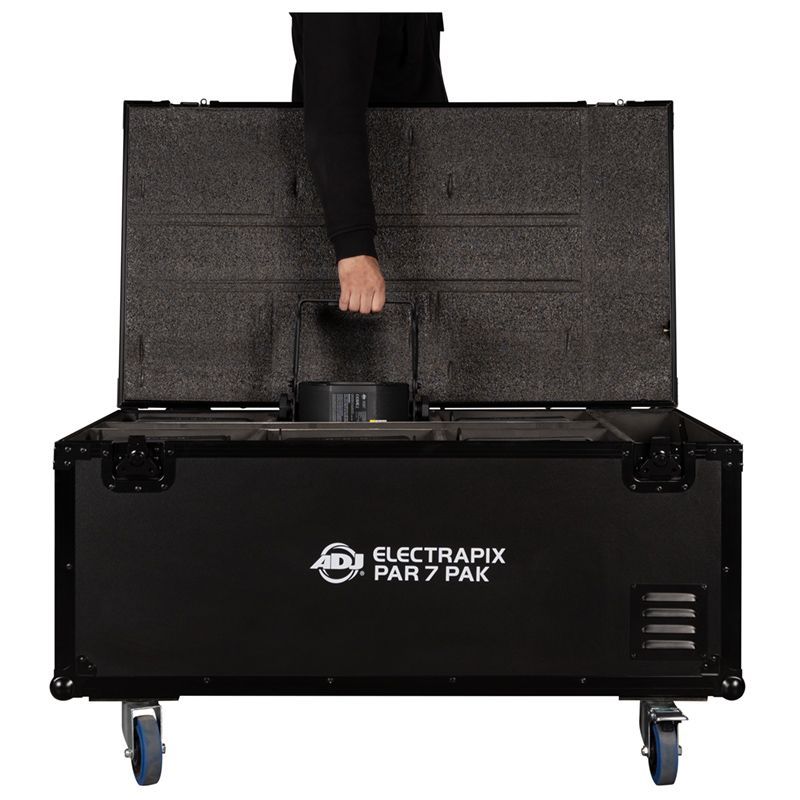

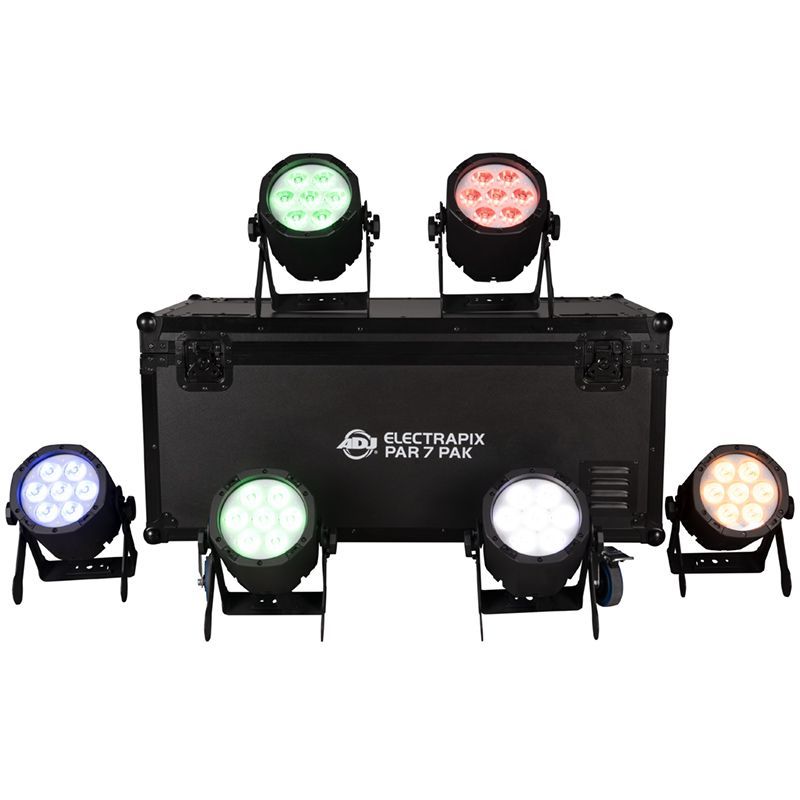

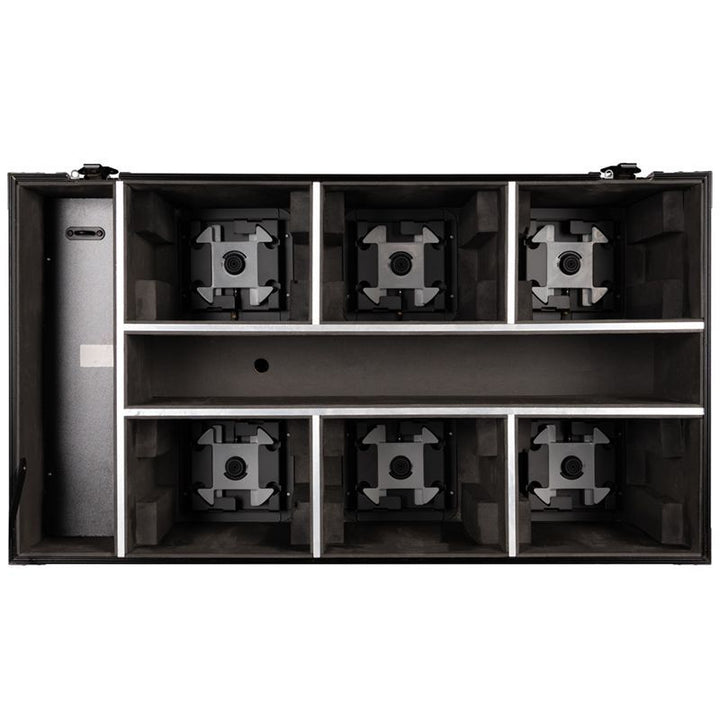

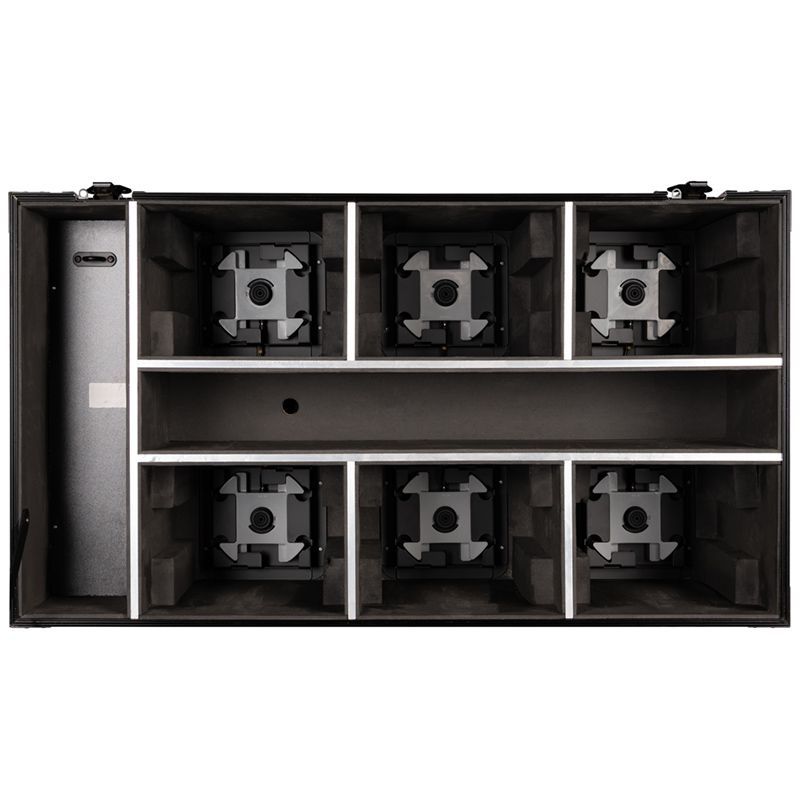

The ElectraPix Par 7 Pak features six (6) ElectraPix Par 7 Battery powered, wireless DMX LED pars housed in a robust road case with dedicated charging slots for each fixture. It is supplied with an ADJ UC-IR24 remote control that allows simple color selection as well as a power cable which plugs into the side of the case for in-case charging.
Specifications

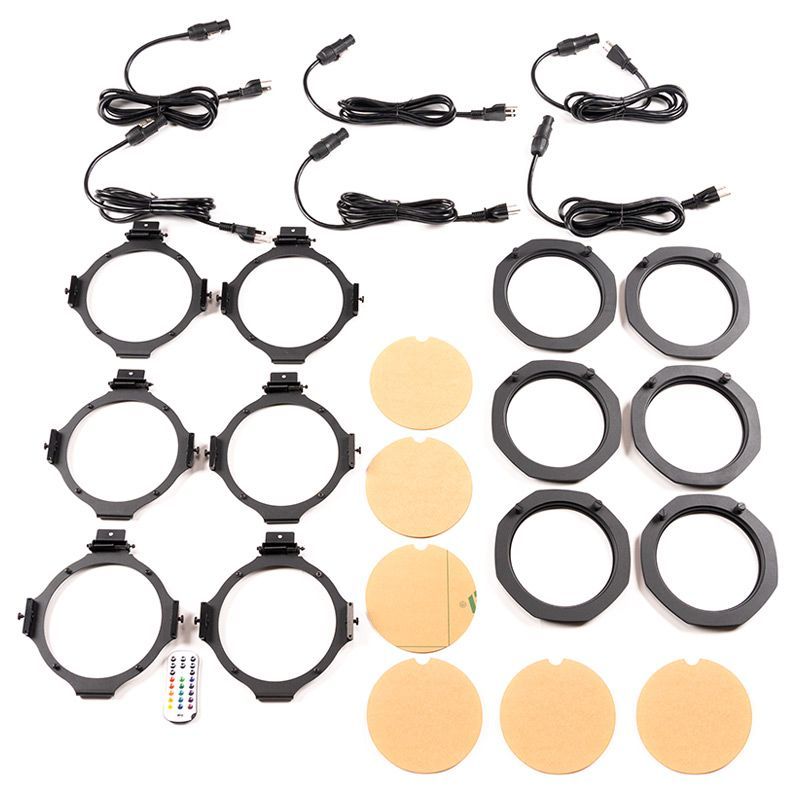

ElectraPix Par 7 Pak Includes:
- (6) ElectraPix Par 7 (Fixtures)
- (1) ElectraPix Par 7 FC (Flight Case)
- (6) ElectraPix Par 7 IPCB (Charging bases and power supplies)
- (1) UC-IR24 Wireless Infrared Controller
- (6) IP65 Locking Power Cable
ElectraPix Par 7 Pak Features:
-
Houses / Transports and Charges (6) ElectraPix Par 7™ fixtures
ElectraPix Par 7 Pak Dimensions / Weight (loaded case (Must be used with 6 fixtures):
- Length: 40.4" (1026 mm)
- Width: 22.7" (577 mm)
- Vertical Height: 22.3" (567 mm)
- Loaded Weight: 197.3 Ibs. (89.5 kg)

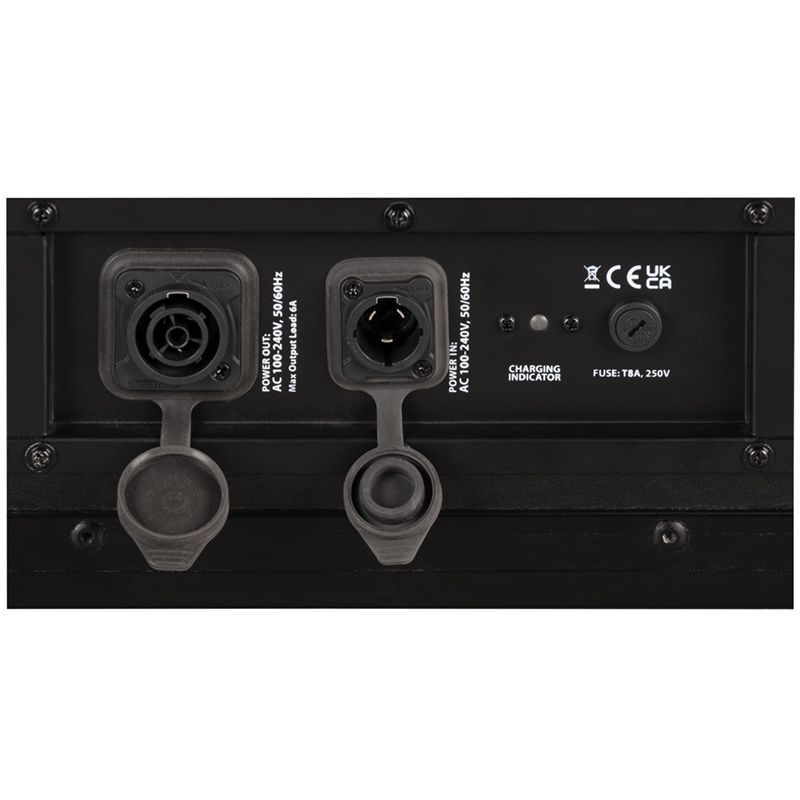

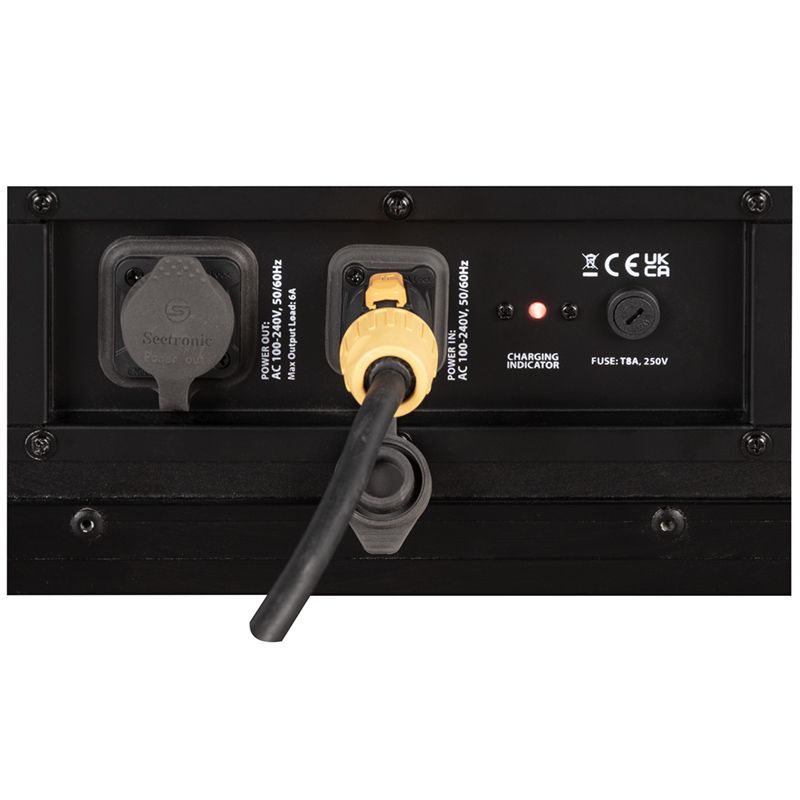

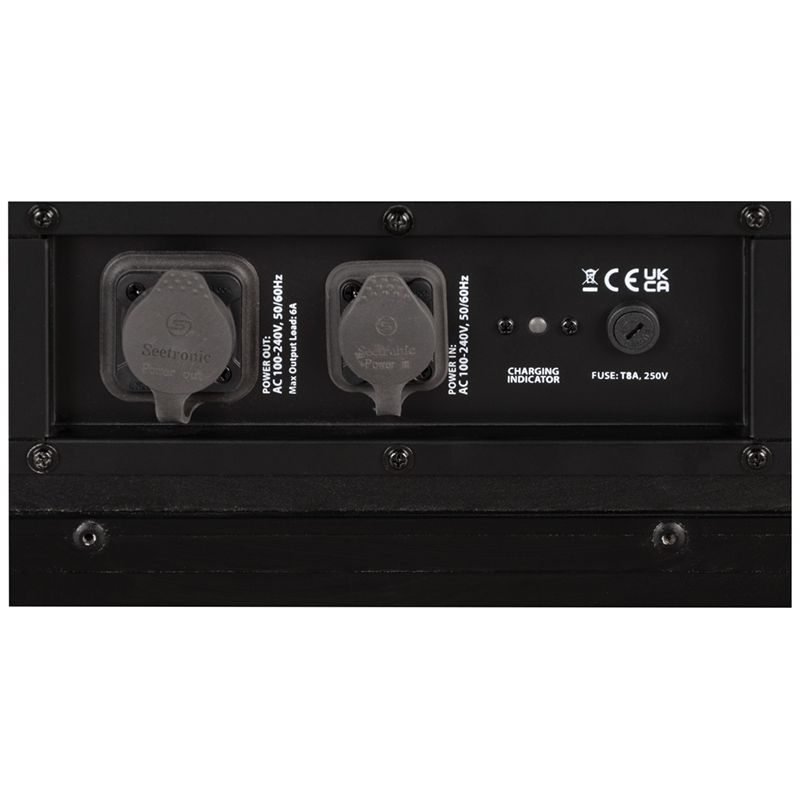

Flight Case Electrical / Thermal:
- Power Input: AC100VAC~240VAC, 50/60Hz
- IP65 Power Locking Input and Output
- Max Power Consumption: 400 Watts
- Power Draw: 4A @120VAC or 2A @ 230VAC
- Charge status indicator
- 14°F to 113°F (-10°C to 45°C)
ElectraPix Par 7 Fixture Source:
- (7) 20W Hex Color RGBAL+UV Foreground LED's
- (29) 0.2W RGB Background LED's
- 50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/ Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
- 2,300K ~ 9,900K White Color Temperature Range
- 17º Beam Angle
- 45mm Lens Diameter x7
Physical:
- IP65 Housing
- OLED Digital display
- L Track system for locking accessories / rigging
- Gel Frame Holder
- Adjustable, hanging / kick stand bracket
Control:
- DMX512
- Aria X2 Wireless DMX
- Bluetooth
- RDM and RDM Net Compatible
- IR (Includes UCIR24 wireless remote)
- (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 & 60
- Channel modes)
- On-board Manual Control Mode
- Primary / Secondary Mode
Connections:
- 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
- Outdoor Locking Power Sockets
- Battery Charging Socket
Dimensions & Weight:
- Length: 11.11* (282.1mm)
- Width: 9.8* (248mm)
- Height: 7.46 (189.5mm)
- Weight: 18.1 Ibs. (8.2 kg)
Power:
- AC100-240V/50Hz-60Hz Input
- 90W Power Consumption
- Link 10 pieces @120VAC or 18 pieces @ 230VAC
Battery:
- Rechargeable Lithium ion
- Battery Capacity: 12,000m Ah
- Battery Voltage: 22.2V
- Charge Time, AC Power: 5 Hours (To Full)
- Charge Time, Flight Case: 7 Hours (To Full)
- Battery operation can be selected by the user for dura-tons ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
- Battery Cycles: 500
Thermal:
- Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
- Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications & IP Rating:
- CE
- cETLus (Control # 4002034)
- FCC
- IP65
