ADJ ENCORE-LP5IP LED Par Fixture - 5x20W RGBL

SOURCE:

• Light Source: 5 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)

• Rated Life: 50,000 hr.

PHOTMETRIC DATA:

High CRI Data

• Beam Angle: 9.7°

• Field Angle: 18.8°

• CRI: 83

• CRI R9: 54

• Color Temperature: 6942K

• Lux: 2179 @ 3M, 785 @ 5M

• Lumens: 771

Full ON Data

• Beam angle: 9.6°

• Field Angle: 18.8°

• CRI: 67

• CRI R9: -98

• Color Temperature: 21188K

• Lux: 1766 @ 3M, 636 @ 5M

• Lumens: 607

EFFECTS:

• Linear Color Temperature Control (2700K to 7000K)

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

• 16-Bit Fine Color Control (Red, Green, Blue & Lime)

• 64 built-in Color Macros

CONTROL / CONNECTIONS:

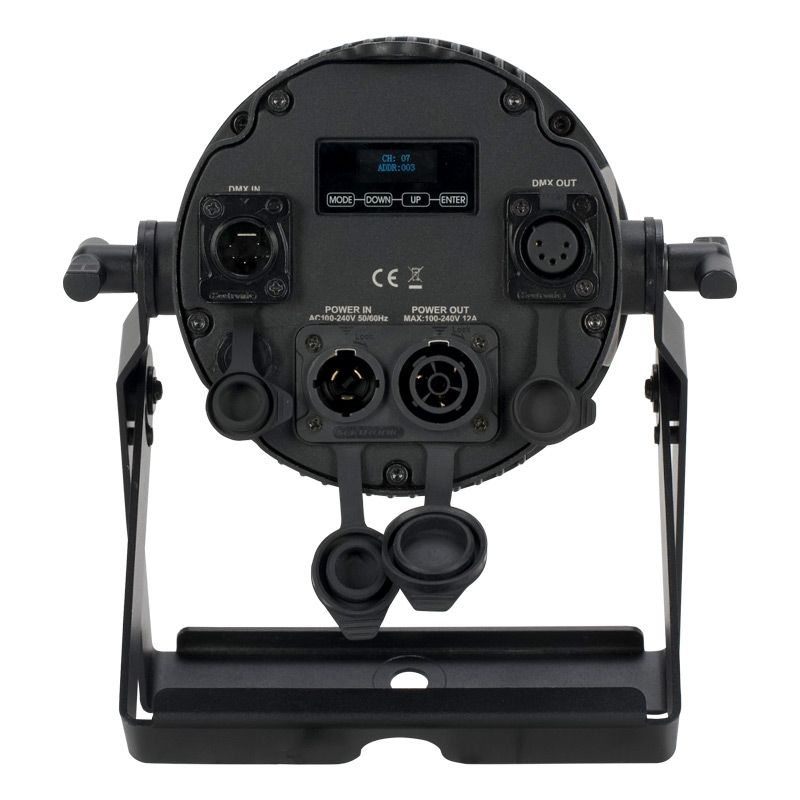

• 4-button, DMX digital display on rear panel

• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled

• Supports RDM (Remote Device Management)

• With Wired Digital Communication Network

• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)

• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)

• Flicker Free operation (No flickering on camera)

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 6 DMX Modes: 4, 7, 8, 10, 13, & 16-channel

• Quiet fan mode

CONSTRUCTION:

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand

• All metal construction

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets

• Locking, outdoor IN/Out Power connectors

• Data linkable via 5-pin XLR DMX connections

• Scissor Yoke & safety eye

ELECTRICAL / THERMAL:

• Multi-voltage operation: AC 100-240V, 47/63Hz

• Daisy chain: 21 units max (110V) / 44 units max (240v)

• Max power: 32W

• Min/Max Ambient Temperature: -20ºC ~ 45ºC

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 5.9” x 8.2”x 10.1” / 150.6mm x 209.0mm x 255.0mm

• Weight:5.3 lbs / 2.4 kgs
