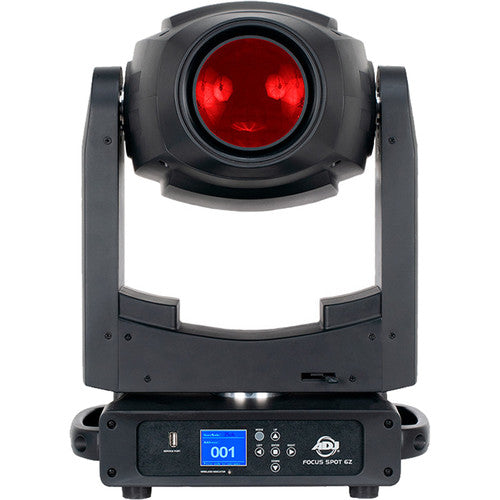

ADJ Focus Spot 6Z 300-Watt LED Moving Head with Motorized Zoom & Focus
FOCUS-SPOT-6Z
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
The ADJ Focus Spot 6Z is a feature-packed, compact moving head spot fixture
Light Source:
• 300W Cool White LED Engine (50,000 hr.)
• 11,000 Lumens
Features:
• Motorized Focus
• 2 Frost Filter to create wash effects
• Motorized Zoom: 9~28-degrees
• 2 Prism FX: Rotating 6-facet Linear & rotating 6-facet Circular
• Motorized Iris
• GOBO Morphing
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• (2) Two Focus Spot 6Z fit inside the DRC MHX road case
Color Wheels:
• Color Wheel 1: 7 dichroic colors + white
• Color Wheel 2: 7 dichroic colors (includes CTO, CTB and UV filters)
GOBO Wheels:
• GOBO Wheel 1: 7 GOBOS + open
• GOBO Wheel 2: 7 GOBOS + open
• GOBO Morphing
• GOBO Shake Effect
• Metal GOBO Size: 23mm (outer), 19mm (viewable), 0.5mm (thickness)
• Glass GOBO Size: 23mm (outer), 19mm (viewable), 1.6mm (thickness)
Prism Wheel:
• Prism Wheel 1: Rotatable 6-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Each Prism is indexable
Frost Filters:
• Frost 1: Heavy frost for wash effect
• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX
Control:
• 2 DMX Channel Modes: 22/25 Channels
• Color LCD display with 6-button function menu
• Control Mode: DMX512, sACN, ArtNet and Internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
Pan/Tilt:
• Pan: 630 degrees
• Tilt: 270 degrees
• 16-bit fine Pan & Tilt
• Pan & Tilt locks
Connections:
• DMX Connections: 3-pin & 5-pin XLR In/Out
• Power Connections: PowerLock In/Out to daisy chain power
• RJ45 In/Out connections for Art-Net & sACN control
Electrical:
• Multi-voltage operation: AC 90-240V, 50/60Hz
• Max power consumption: 380W
Dimensions & Weight:
• Dimensions (LxWxH): 14.18” x 9.21” x 22.125” / 360x234x562mm
• Weight: 43.6 lbs. / 20 kg
