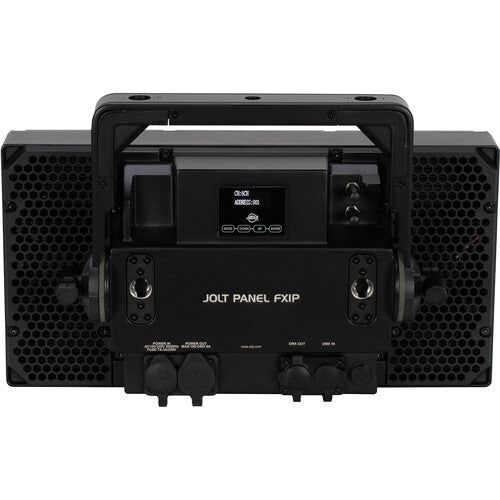

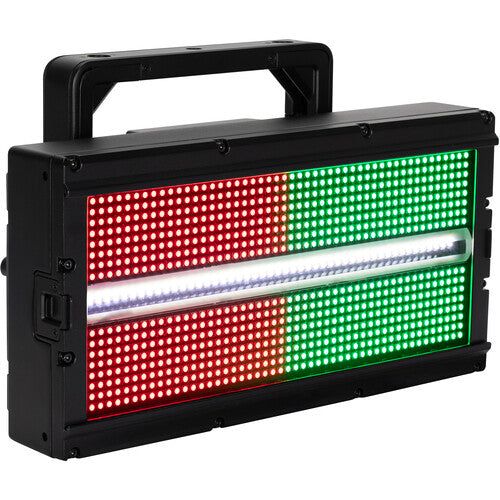

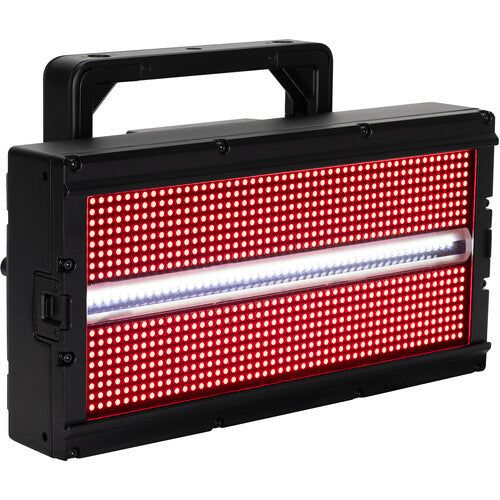

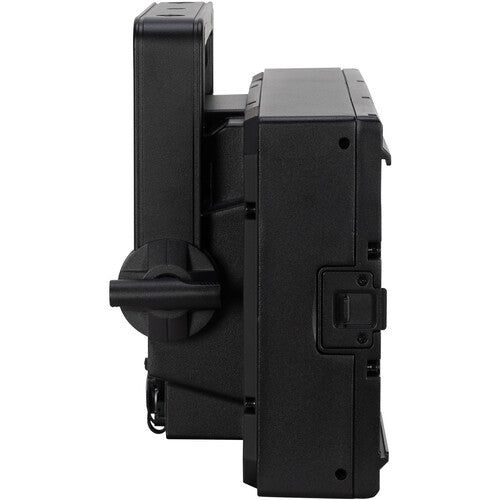

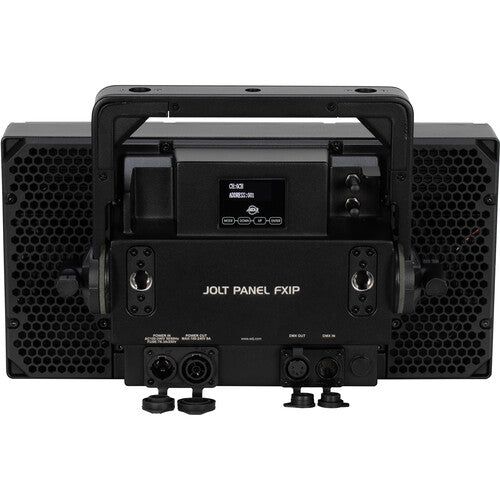

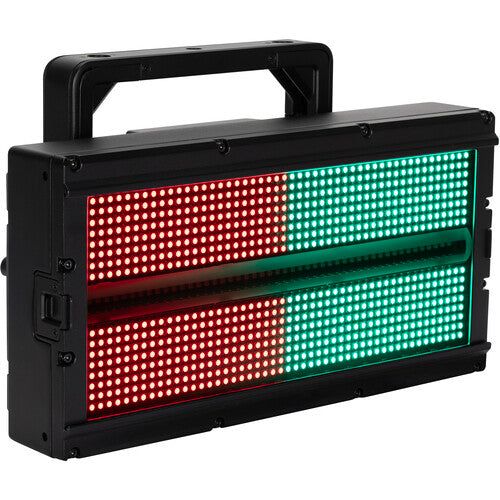

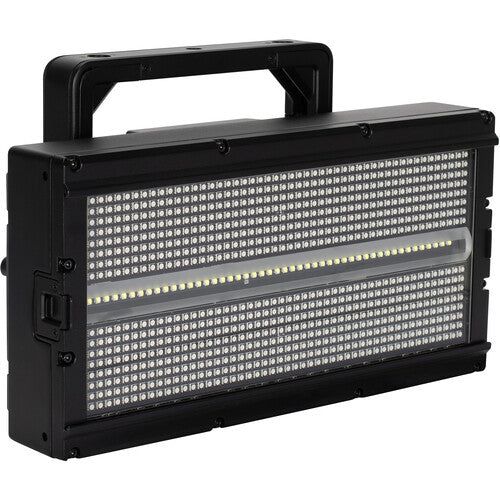

ADJ JOLT-PANEL-FXIP Strobe - IP65 w/800 × 0.5W RGB SMD + 48 × 5W CW SMD LED
JOLT-PANEL-FXIP
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
Create strikingly bright white strobe flashes, vibrant color washes, and animated eye-candy chase effects indoors and outdoors with the American DJ Jolt Panel FXIP, an IP65-rated 848-LED RGB and cool white blinder, wash, and strobe fixture well suited for large stages, nightclubs, live events, and touring.
The fixture provides zone-chasing to create bright and moving effects and includes several advanced features such as dimming modes, strobe, shutter, and pulse control, 25 built-in RGB LED program macros, 6 cool-white zones, 9 built-in cool white LED program macros. The rear panel offers 5-pin DMX I/O with twistlock power input and output for daisy-chaining data and power to several fixtures. The American DJ Jolt Panel FXIP includes an IP65-rated locking power cord and a frost filter.
Features
- For Tours, Concert Venues & Nightclubs
- 800 RGB and 48 Cool White SMD LEDs
- 0 to 100% Dimming w/ 6 Modes & 4 Curves
- 73° Beam Angle
- DMX, Wireless DMX, RDM: 10 Channel Modes
- 25 RGB and 9 Cool White Program Macros
- 5-Pin DMX Input and Output
- Optional Omega Mounting Bracket
- IP65 Rated Power and DMX I/O
- Includes Power Cord & Frost Filter
Specifications
| Fixture Type | LED Panel |
| Light Source | 800x Color LED (SMD) - 0.5 W 48x White LED (SMD) - 5 W |
| Colors | Blue, Cool White, Green, Red |
| Pixel Configuration | 46x Zone |
| Beam Angle | 73° |
| Control Protocols | DMX512 |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power / Current Consumption | 120 VAC, 60 Hz: 214 W (Max) 230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Mounting | Mount Optional |
| Fixture Type | LED Panel |
| Light Source | 800x Color LED (SMD) - 0.5 W 48x White LED (SMD) - 5 W |
| Expected Lamp Life | 50,000 Hours |
| Colors | Blue, Cool White, Green, Red |
| Pixel Configuration | 46x Zone |
| Beam Angle | 73° |
| Field Angle | 111° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Zoom Adjustment | No |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Operating Modes | Automatic, DMX, Primary/Secondary, Program |
| Macros / Programs | 25x Auto-Program 9x Color Macro |
| Effects | Strobe (Variable Speed) Pulse |
| Strobe Rate | 1 to 20 Hz |
| Gobos | No |
| Refresh Rate | 900 Hz to 25 kHz (Adjustable) |
| Control Protocols | DMX512 |
| DMX Channel Modes | 10 Mode(s): 6 / 9 / 13 / 18 / 36 / 41 / 51 / 81 / 126 / 141-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | No |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless | Wireless DMX *Built-In |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x powerCON Output: 1x powerCON Plug Type: NEMA 5-15 |
| Fuse | 5 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 214 W (Max) 230 VAC, 50 Hz: 208 W / 1.4 A (Max) |
| Power Linking | 6 Units at 120 VAC 12 Units at 230 VAC |
| Environmental Resistance | No |
| Mounting | Mount Optional |
| Included Accessories | 1x Power Cable 1x Filter |
| Duty Cycle | No |
| Exterior Color | Black |
| Certifications | CE, cETLus |
| Dimensions | 16.42 x 10.38 x 6.06" / 417.07 x 263.65 x 153.92 mm |
| Weight | 13.7 lb / 6.2 kg |
