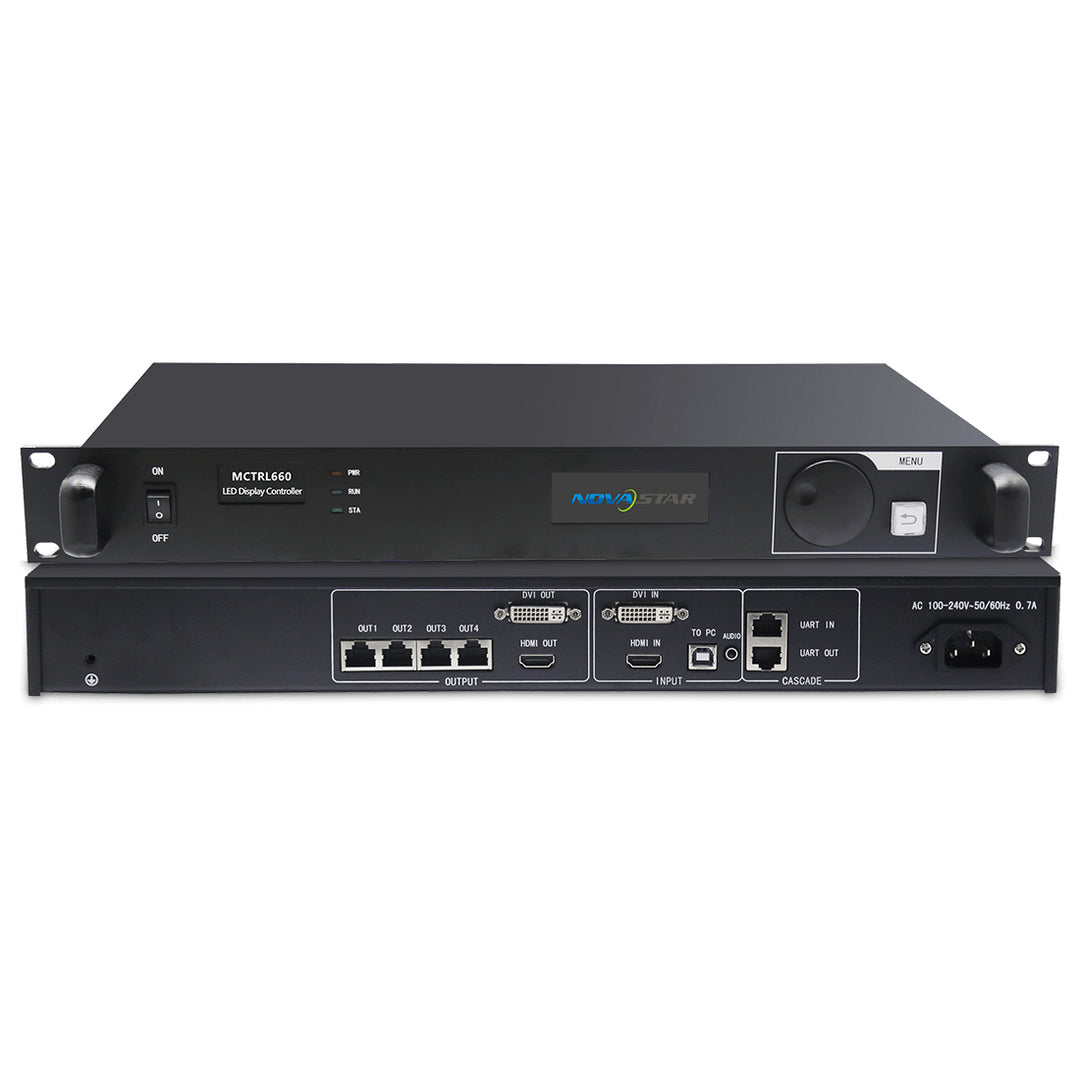

ADJ MCTRL660 LED Display Video Controller -1080p

ADJ MCTRL660 LED Display Video Controller -1080p

SKU: MCTRL660 | UPC: 818651027754

Your Price: $1,830.00 Save $0.00


This product is NOT IN STOCK! For availability, click here to chat with us, or email sales@musiccitycanada.com for any inquiries!


Music City Canada is an Authorized Dealer for ADJ Products.


Overview of ADJ MCTRL660 LED Display Video Controller -1080p

No PC is required for LED display configuration.LED display brightness adjustable directly with knob.12-bit / 10-bit HDMI input, DVI input.
HDMI / DVI output, for cascading or monitoring.
HDMI / external audio input.HDCP Blu-Ray input.
Resolutions supported 2048×1152@60Hz, 1920×1200@60Hz, 2560×960@60Hz.@ 8-bit
Resolutions supported 1440×900@60Hz. @ 12-bit / 10-bit
Customized resolution supported: maximum width / height up to 3840 pixels.
Cascading supported.Video formats: RGB, YCrCb 4:2:2, YCrCb 4:4:4.Independent power supply.
19 × 1.5U standard rack mount.

  • It has adopted an innovative design to implement smart configuration and the screen configuration can be completed within 30 seconds.
  • Includes Nova G4 engine, which makes the screen stable and flicker-free without scanning lines. The images become exquisite and bring a good sense of depth.
  • Supports Nova's new-generation pixel-by-pixel calibration technology which is fast and efficient.
  • It can implement white balance calibration and color gamut mapping based on different features of LEDs used by displays to ensure restoration of true colors.
  • It is the only control system that supports 12-bit high-definition multimedia interface (HDMI) and high-bandwidth digital content protection (HDCP).
  • Supports screen configuration at any time without a computer.
  • Supports manual adjustment of screen brightness, which is convenient and efficient. These features have satisfied the special needs of display rental service to the maximum extent.
  • HDMI/DVI Input.
  • HDMI/DVI Output.
  • HDMI/external audio input.
  • 12bit/10bit/8bit HD video source.
  • Resolution supported: 2048×1152，1920×1200，2560×960.
  • Resolution supported: 1440×900, (12 bit/10 bit).
  • Cascading supported.
  • 18 bit gray scale processing and presentation.
  • Video format: RGB, YCrCb4:2:2, YCrCb4:4:4.
