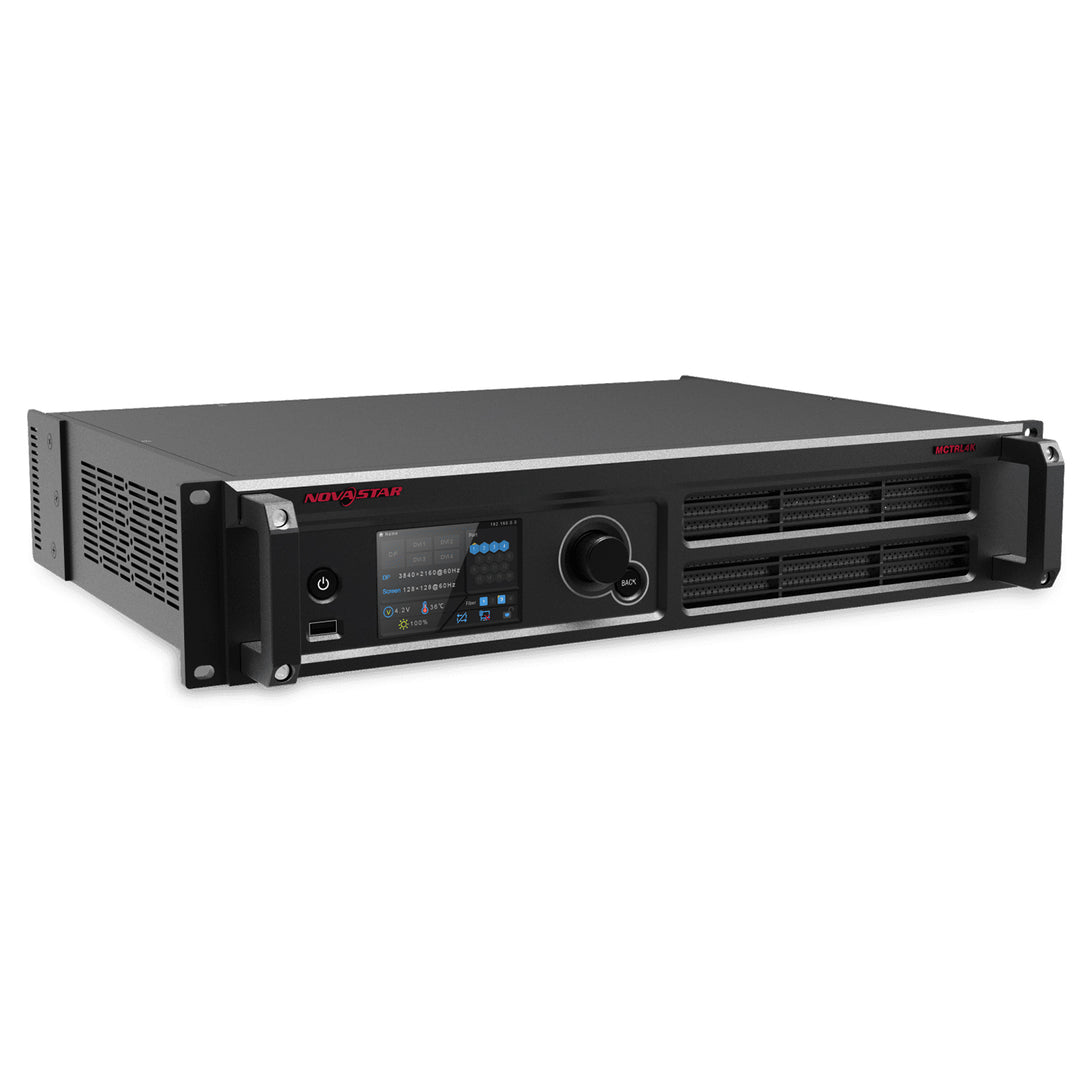

Overview of ADJ NOVASTAR MCTRL4K Pro 4K LED Display Controller
Complete video input interfaces: DP1.2 x 1, HDMI2.0 x 1, dual-link DVI x 2.
Supports 16-channel Neutrik Gigabit Ethernet outputs and 4-channel optical fiber outputs and maximum loading capacity of a single unit up to 3840x2160@60Hz.
Supports two operating modes during dual-link DVI input: mosaic and multi-card.
Innovative design to enable smart configuration which has greatly shortened the time for stage preparation.
NovaStar's G4 engine to create stable and flicker-free pictures without scanning lines, and bring smooth images with a good sense of layering.
Supports NovaStar's latest pixel-by-pixel calibration technology, the process of which is fast and efficient.
Enables white balance calibration and color gamut mapping based on the different features of LEDs on the display to ensure the real restoration of color.
Screen configuration can be done at any time without PC.
Manual adjustment of screen brightness, which makes it much easier and quicker.
Multiple controllers are able to be cascaded for uniform control.
INPUTS
(1) DP 1.2 standard
Max. supported resolution:3840×2160@60Hz,
Max. width and height are 3840(downward compatibility)
(1) HDMI 2.0 standard
Max. supported resolution:3840×2160@60Hz
Max. width and height are 3840 (downward compatibility)
(2) Dual-Link DVI
VESA standard, max. supported resolution:
3840x1080@60Hz and 3840×2160@30Hz
(downward compatibility)
OUTPUTS
(16) RJ45 Neutrik Gigabit Ethernet Ports
(4) Optical Fiber Ports, single mode and double fiber, LC port, 1310mm
OPT1 is used for transferring the data of port 1-8
OPT2 is used for transferring the data of port 9-16
OPT3 is the backup channel of OPT1
OPT4 is the backup channel of OPT2
Either Gigabit Ethernet port or optical fiber port can be used at the same time. Two types of ports cannot be used to connect devices simultaneously.
CONTROL
(1) ETHERNET Control interface
(2) USB Control interface of upper computer and cascading interface
SIZE / WEIGHT
Length: 19.0” (482.6mm)
Width: 14.6” (372mm)
Depth: 3.5” (89mm)
Weight 10.1 lbs. (4.6kg)
ELECTRICAL / THERMAL
Input Power AC 100-240V, 50/60Hz
Overall Power Consumption 30W
Operating temperature -20~60℃
APPROVALS
cULus | CE | RoHs | EAC | FCC
