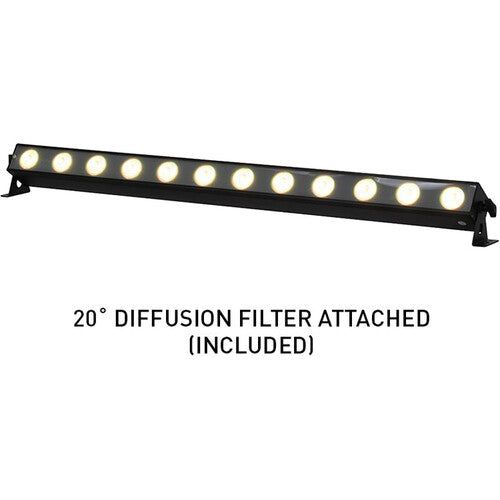

ADJ UBL12H 42in Linear Fixture w/ 12 × 20W RGBAL+UV LED

Light Source:

• 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• 17° beam angle

• CRI >90

• Pixel Pitch: 85.5mm

Features:

• Linear Color Temperature Control (2,300K to 9,900K)

• Smooth RGBAL+UV color mixing

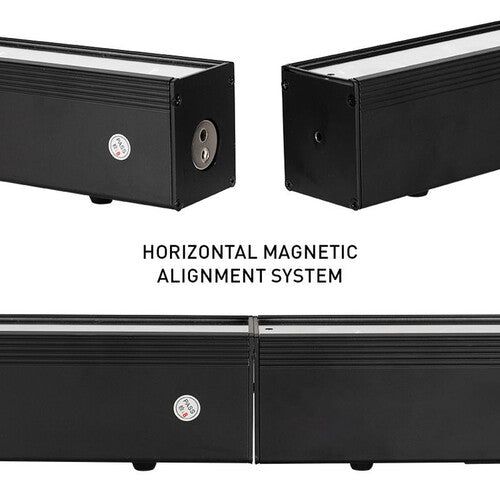

• Horizontal Magnetic Alignment feature (Built-In)

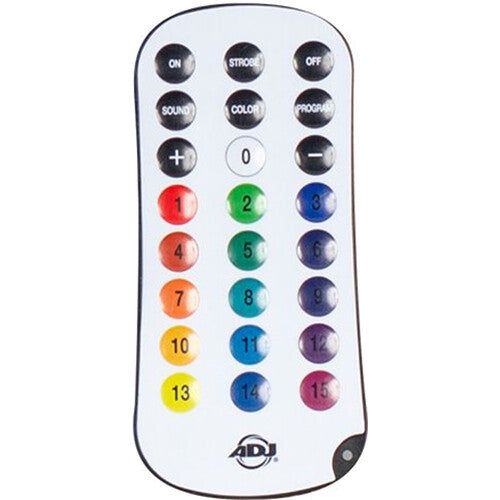

• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)

• RDM Compatible

Control:

• Linear Color Temperature Control (2,300K to 9,900K)

• OLED Display with 4-buttons

• 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels

• 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes

• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode

• LED Refresh Rate: 1.9KHz

• 64 built-in Color Macros

• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)

• Built-In Microphone for sound trigger

• LED pulse and strobe effect

• Electronic Dimming: 0-100

Connections:

• Linkable: DMX via 5-pin XLR cable

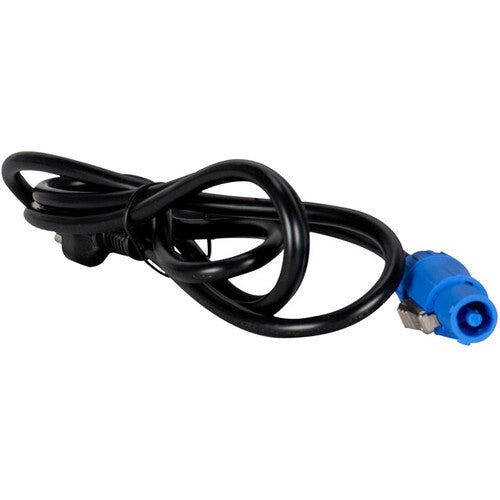

• Indoor Locking power In/Out to daisy chain power

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Power Draw: 61W

• Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)

Dimensions / Weight:

• Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)

• Weight: 7.50 lbs./ 3.4kg
