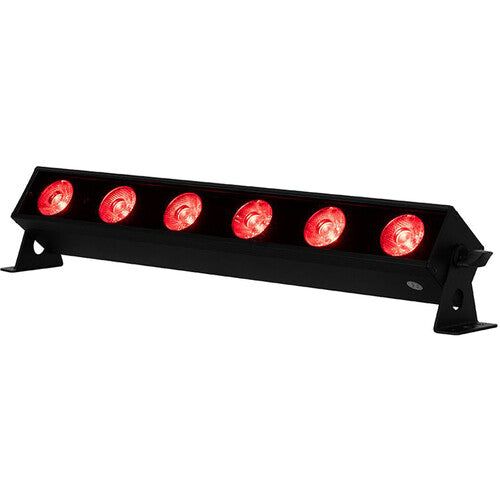

ADJ UBL6H 22in Linear Fixture w/ 6 × 20W RGBAL+UV LED

Light Source:

• 6 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs

• Long Life LEDs (Rated at approximately 50,000 hrs.)

• 17° beam angle

•  CRI >90• Pixel Pitch: 85.5mm

Features:

• Linear Color Temperature Control (2,300K to 9,900K)

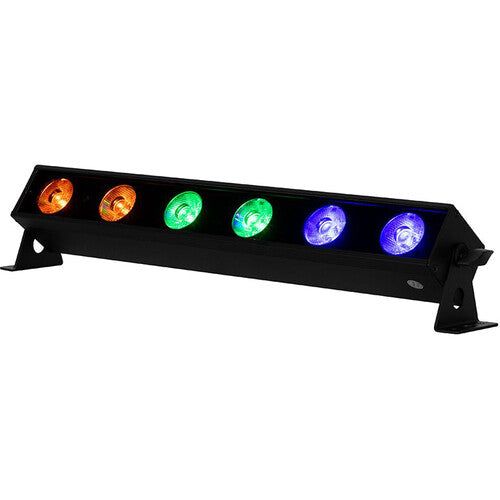

• Smooth RGBAL+UV color mixing

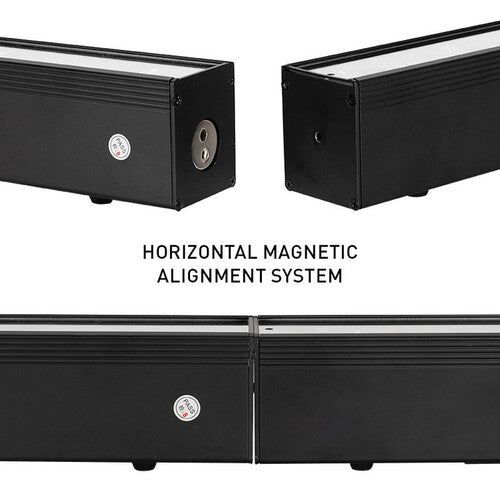

• Horizontal Magnetic Alignment feature (Built-In)

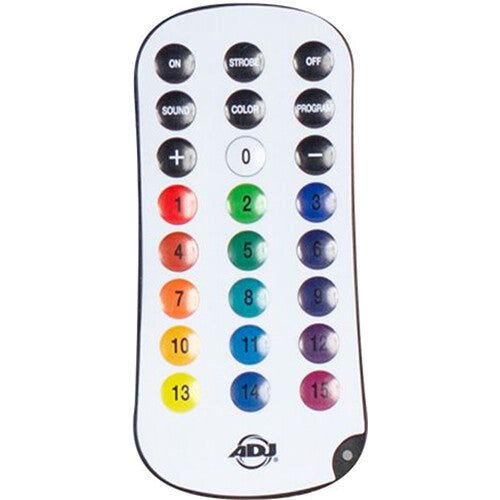

• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)

• RDM Compatible

Control:

• Linear Color Temperature Control (2,300K to 9,900K)

• OLED Display with 4-buttons

• 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels

• 3 Groups x2 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes

• 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode

• LED Refresh Rate: 1.9KHz

• 64 built-in Color Macros

• 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)

• Built-In Microphone for sound trigger

• LED pulse and strobe effect

• Electronic Dimming: 0-100%

Connections:

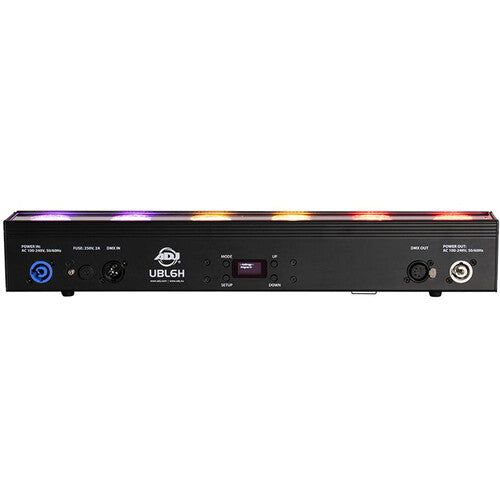

• Linkable: DMX via 5-pin XLR cable

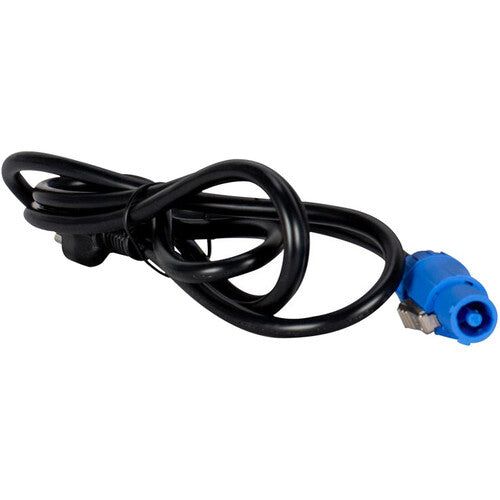

• Locking power In/Out to daisy chain power

Electrical:

• Multi-voltage operation: AC 100V-240V 50/60Hz

• Power Draw: 26W• Daisy-chain power link (Up to 26 UBL6H's can be linked @120V and up to 50 UBL6H's can be linked @230V)

Dimensions / Weight:

• Dimensions (LxWxH): 2.96" x 22.40" x 4.2" (75x568.9x106.7mm)

• Weight: 4.41 lbs./ 2kg
