ADJ VIZ900 VIZI XTREME Moving Head Wash Light

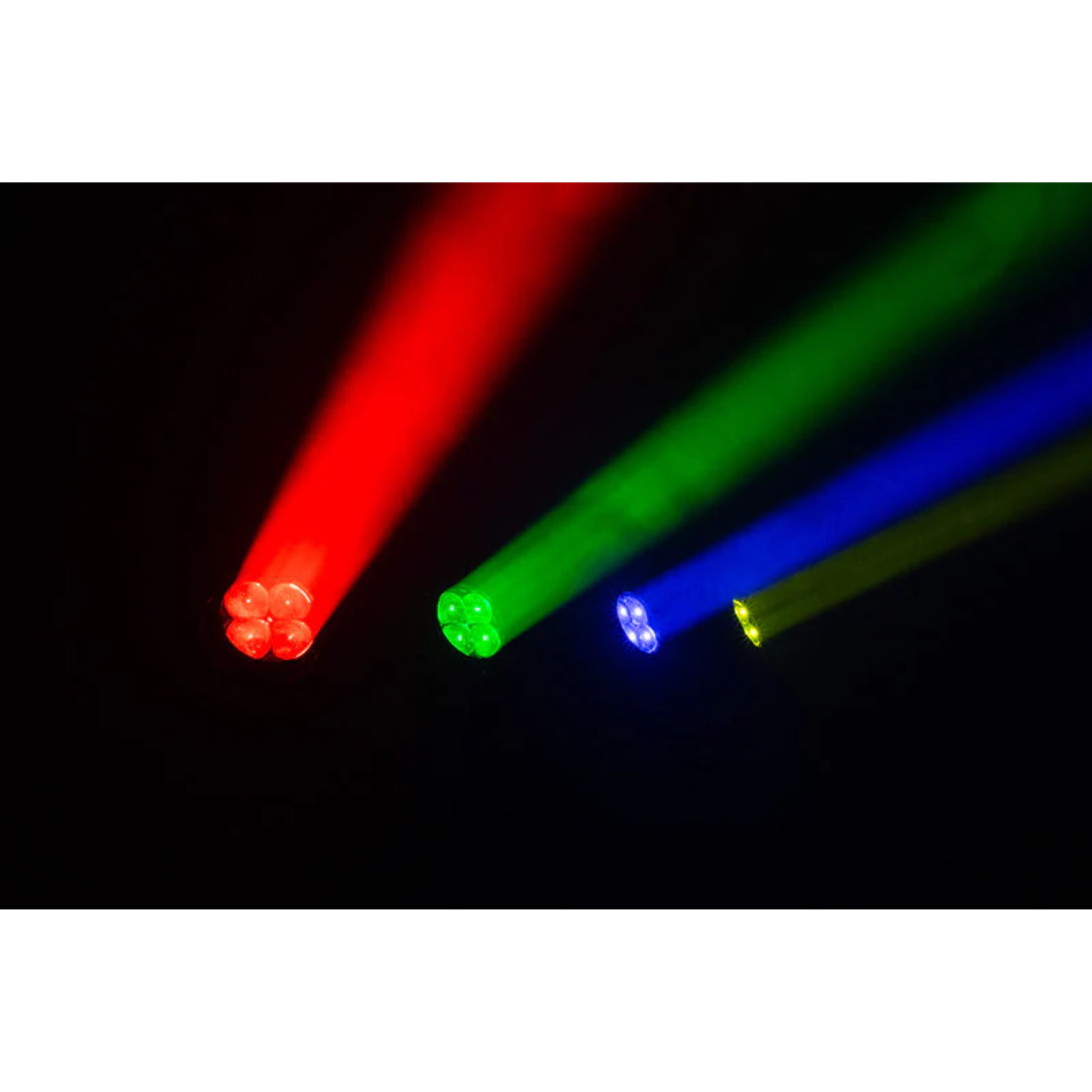

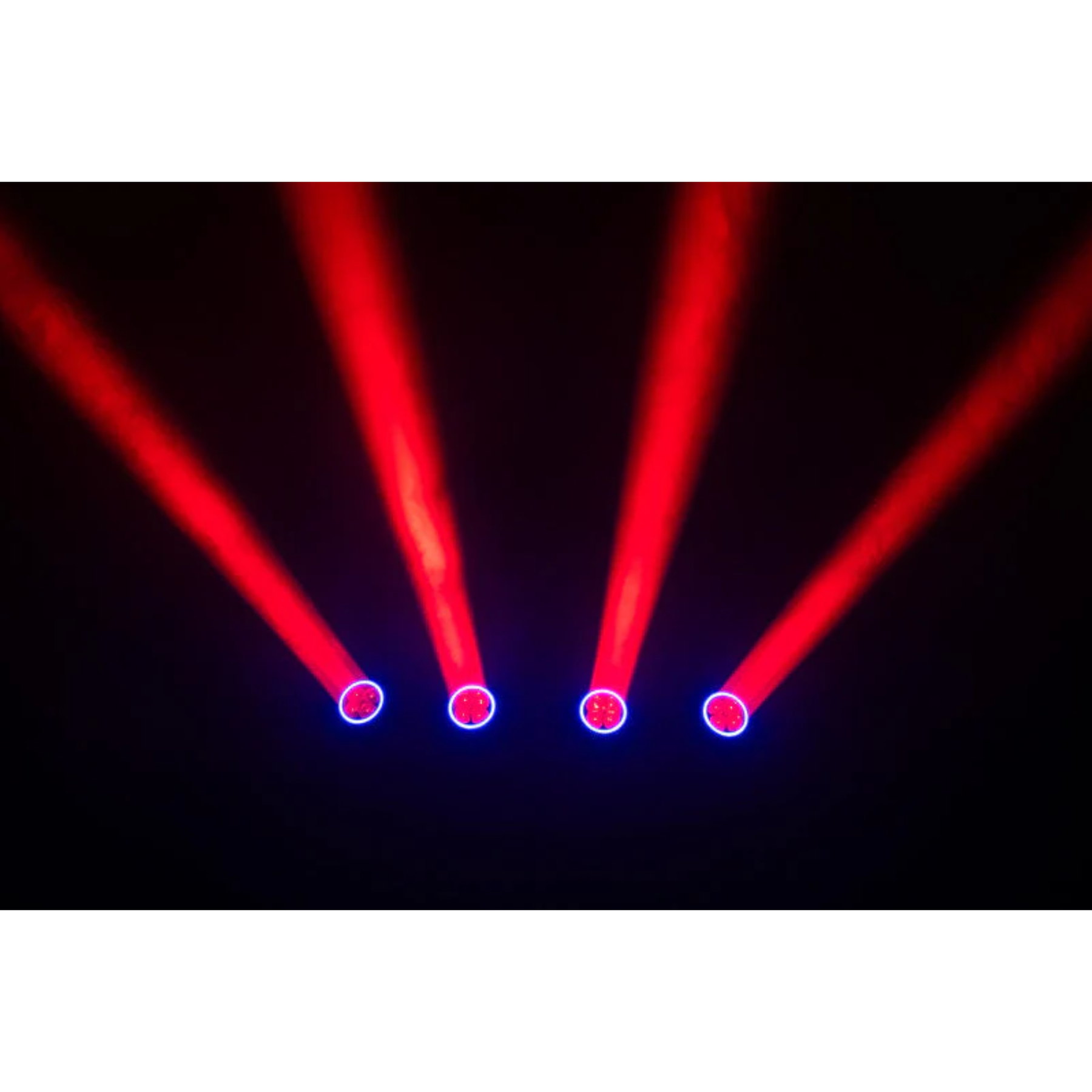

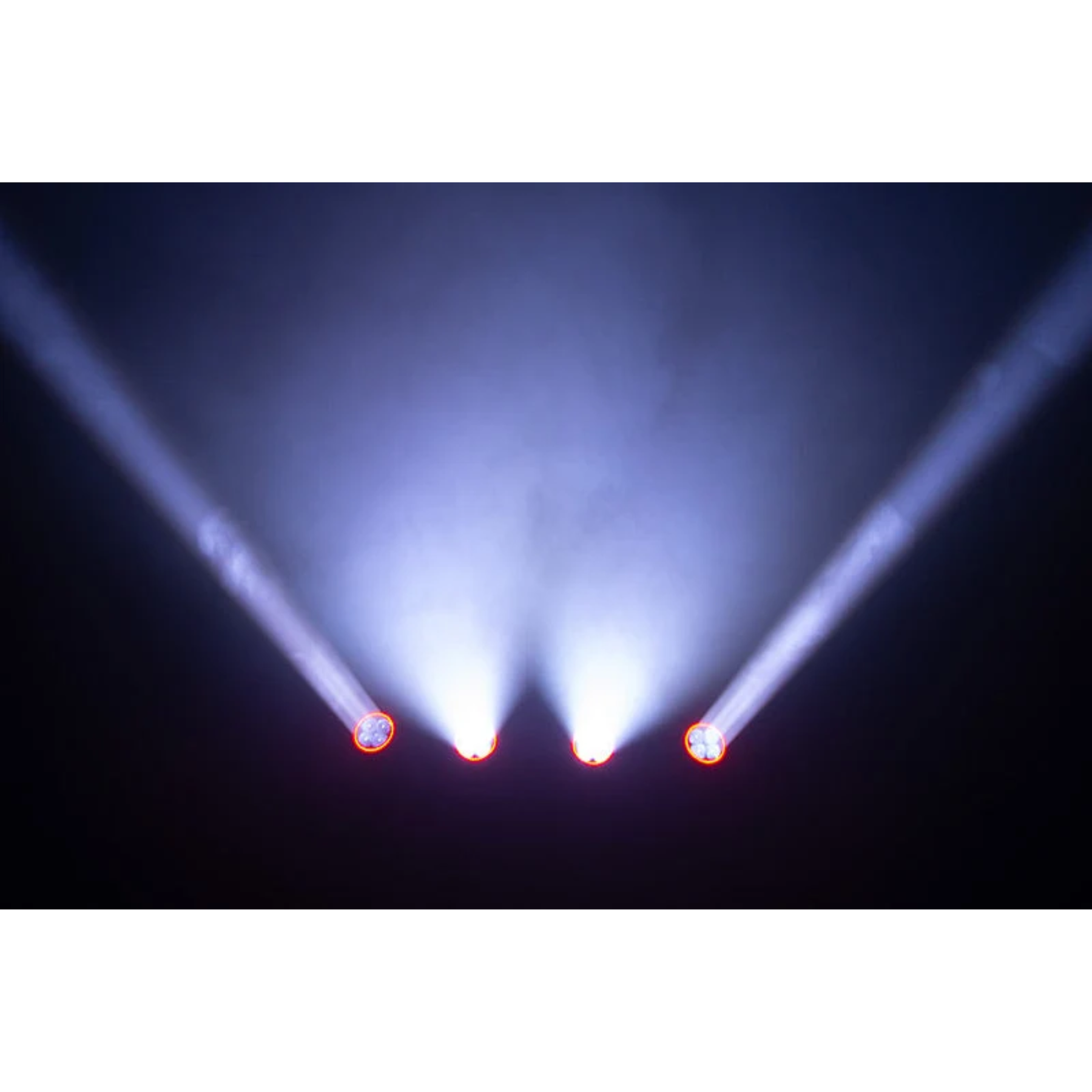

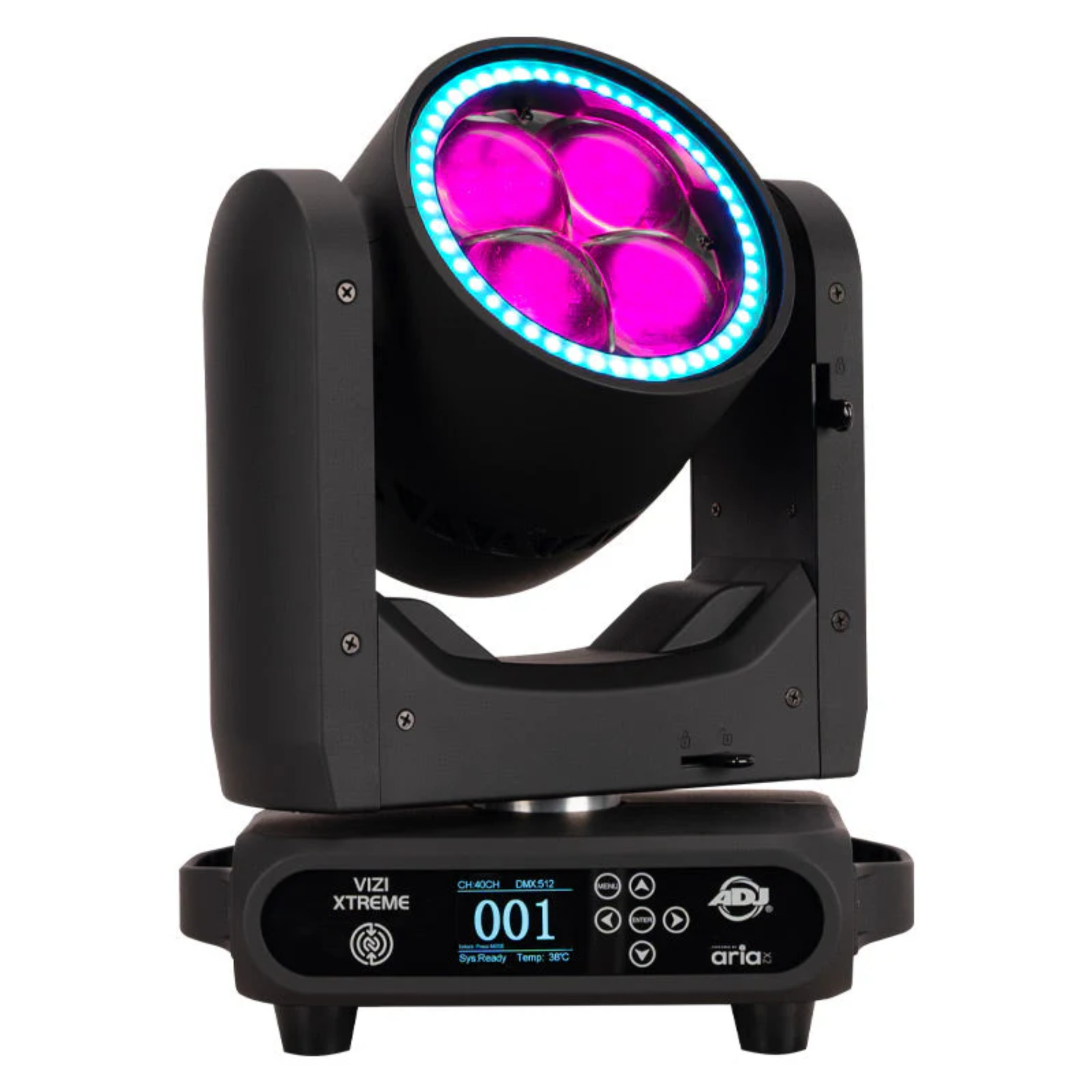

The ADJ VIZI XTREME Beam/Wash LED Moving Head Light is a beam wash moving head engineered to deliver exceptional speed, intense output and mesmerising 360° continuous rotation from an extremely compact fixture. Despite its small footprint, this cutting-edge luminaire delivers formidable output and a rich palette of dynamic visual effects, making it ideal for a wide variety of entertainment lighting applications, including concert tours, club installations, broadcast environments, and event production. At the heart of the Vizi Xtreme are four primary 60-watt RGBL LED’s, each individually controllable to create striking, pixel-based animations and bold color statements. An advanced color mixing system – incorporating lime for enhanced clarity and a superior palette – ensures beautifully saturated hues and crisp pastels. In addition, white light can be generated with a wide color temperature range of 2700 K to 10,000 K. Around the outside of the fixture’s face is a ring of forty-eight 0.5-watt RGBL LED’s, arranged into six independently controlled zones. This halo effect enables designers to add layered motion, subtle ambience, or high-impact chase patterns that complement the primary output. The Vizi Xtreme’s motorized zoom system, spanning an impressive 3° to 45°, transitions effortlessly from tight, piercing aerial beams to wide, immersive washes. Combined with ultra-fast 3-phase motors, optional 360° continuous pan and tilt, and a 1–10Hz strobe function, the fixture excels at creating movement-driven looks and punchy, energetic effects. Despite its kinetic performance, it remains lightweight at just 15.4 lbs (7kg), making it perfect for both smaller event productions and high-density arrays on touring rigs. Designed for professional integration, the fixture offers a robust suite of control options, including DMX with RDM, sACN and ArtNet. As well as 5-pin DMX and RJ45 sockets for wired connection, the fixture features integrated Aria X2 wireless technology. This facilitates both cable-free DMX control and wireless management with OTA firmware updates and NFC setup for streamlined configuration. An intuitive menu-driven interface for DMX addressing and configuration is also provided on the base of the unit via a full-color, 180° reversible LCD screen with a 6-button touch control panel for streamlined operation. With its exceptional speed, high-output LED’s, versatile pixel control, and advanced connectivity, the Vizi Xtreme sets a new benchmark for compact beam wash fixtures. It empowers lighting professionals to craft vivid, energetic, and intricately layered designs with total precision from a lightweight fixture built for professional environments with CE, FCC, and cETLus certifications.

Features:

• Four Primary 60W RGBL LEDs. Individually controllable primary LEDs with lime-enhanced RGBL color mixing deliver saturated hues, crisp pastels, and 2700K–10,000K tunable white light.

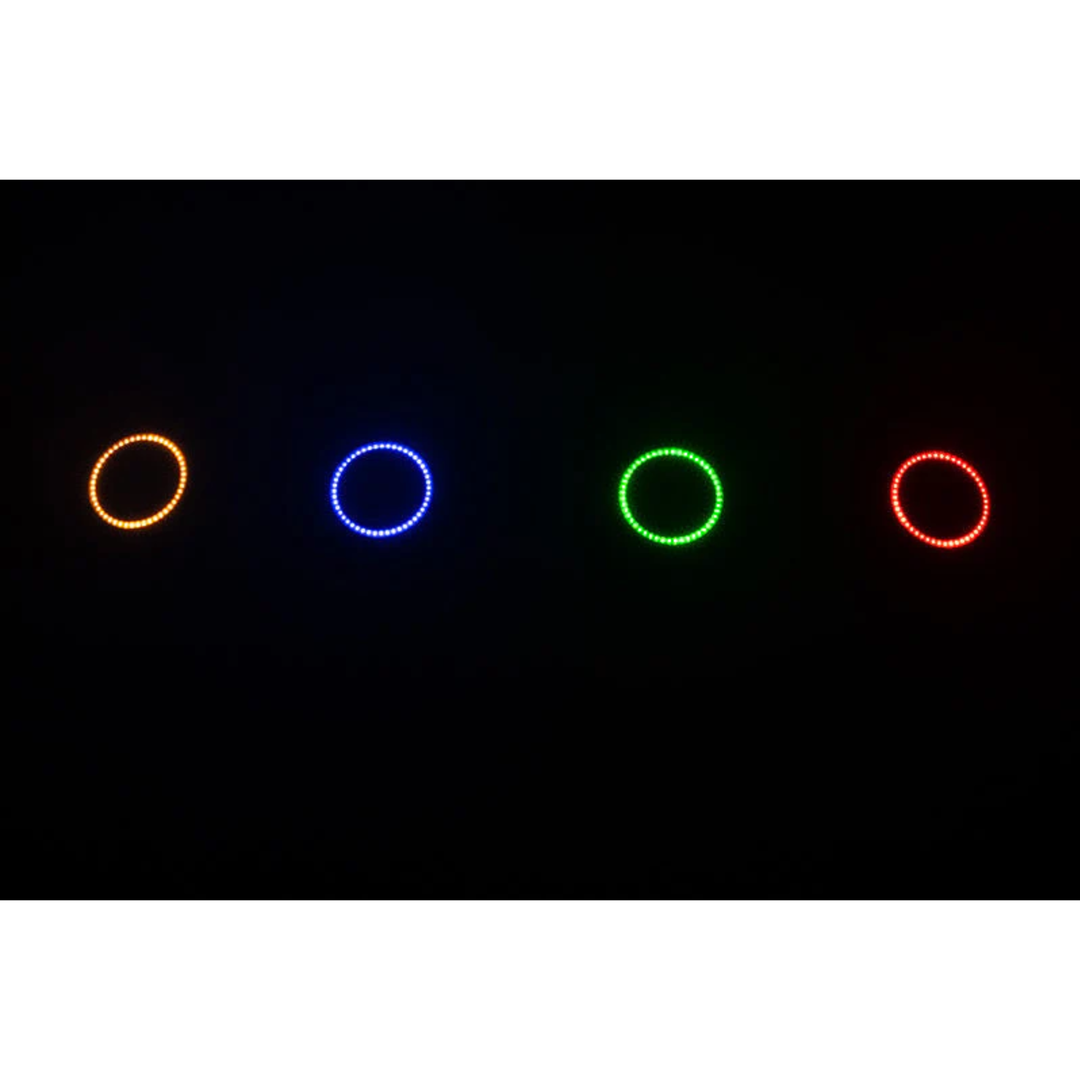

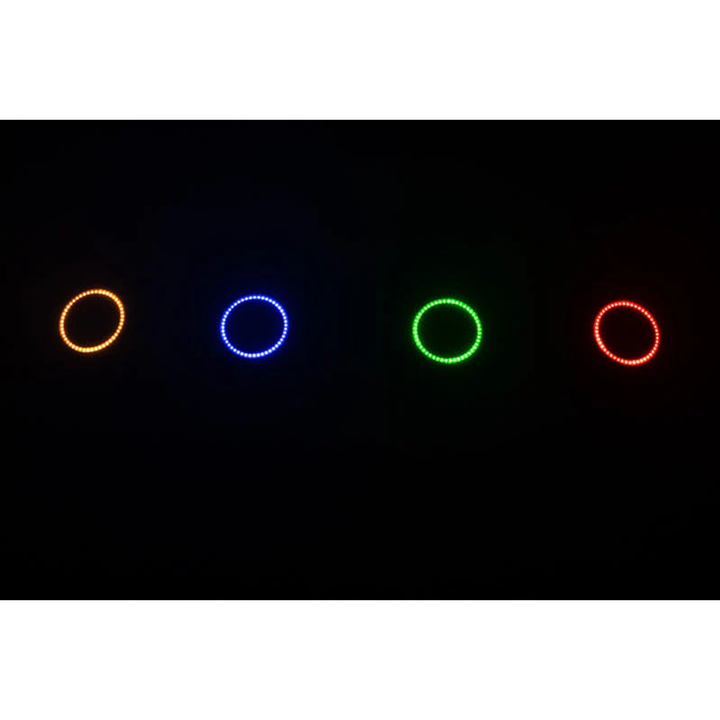

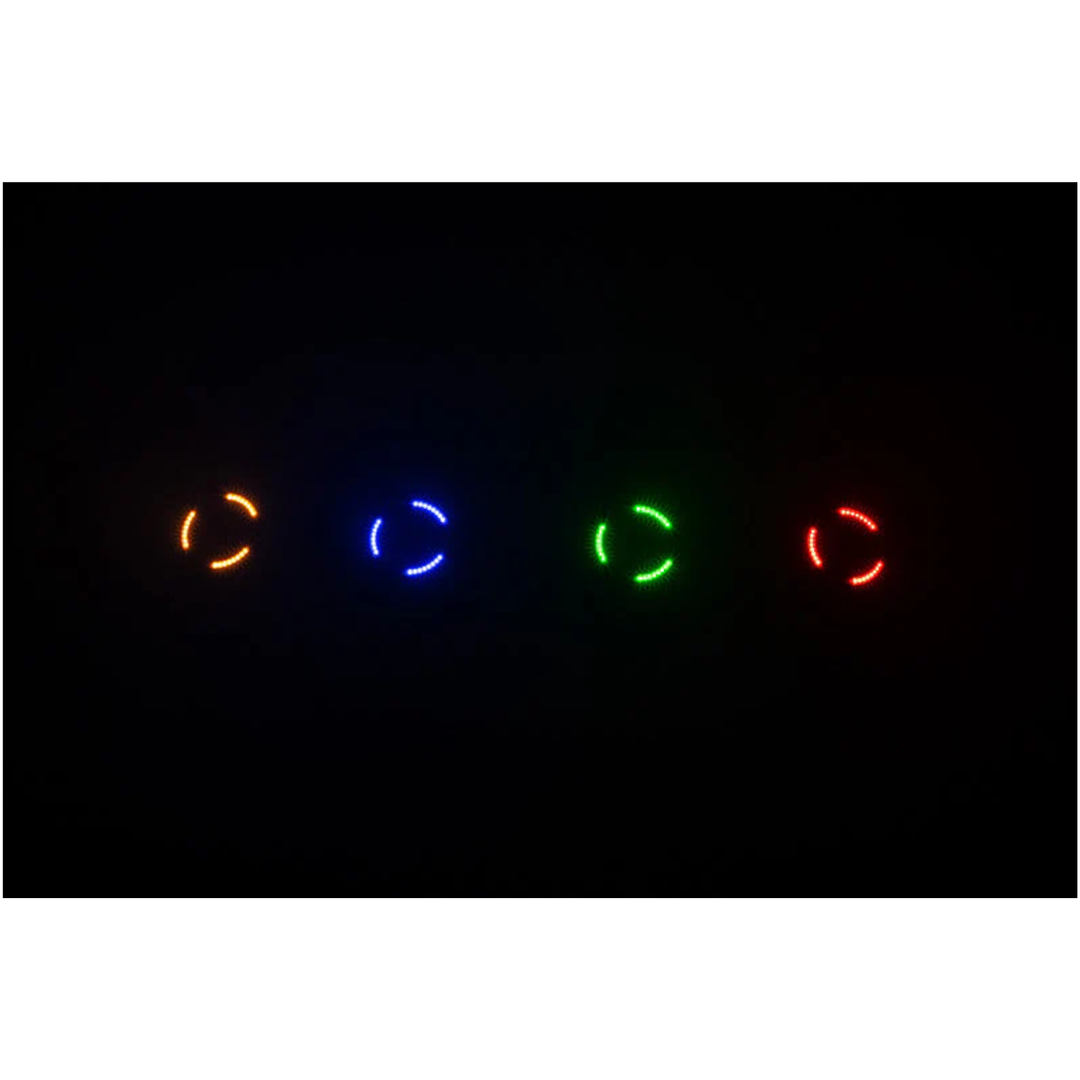

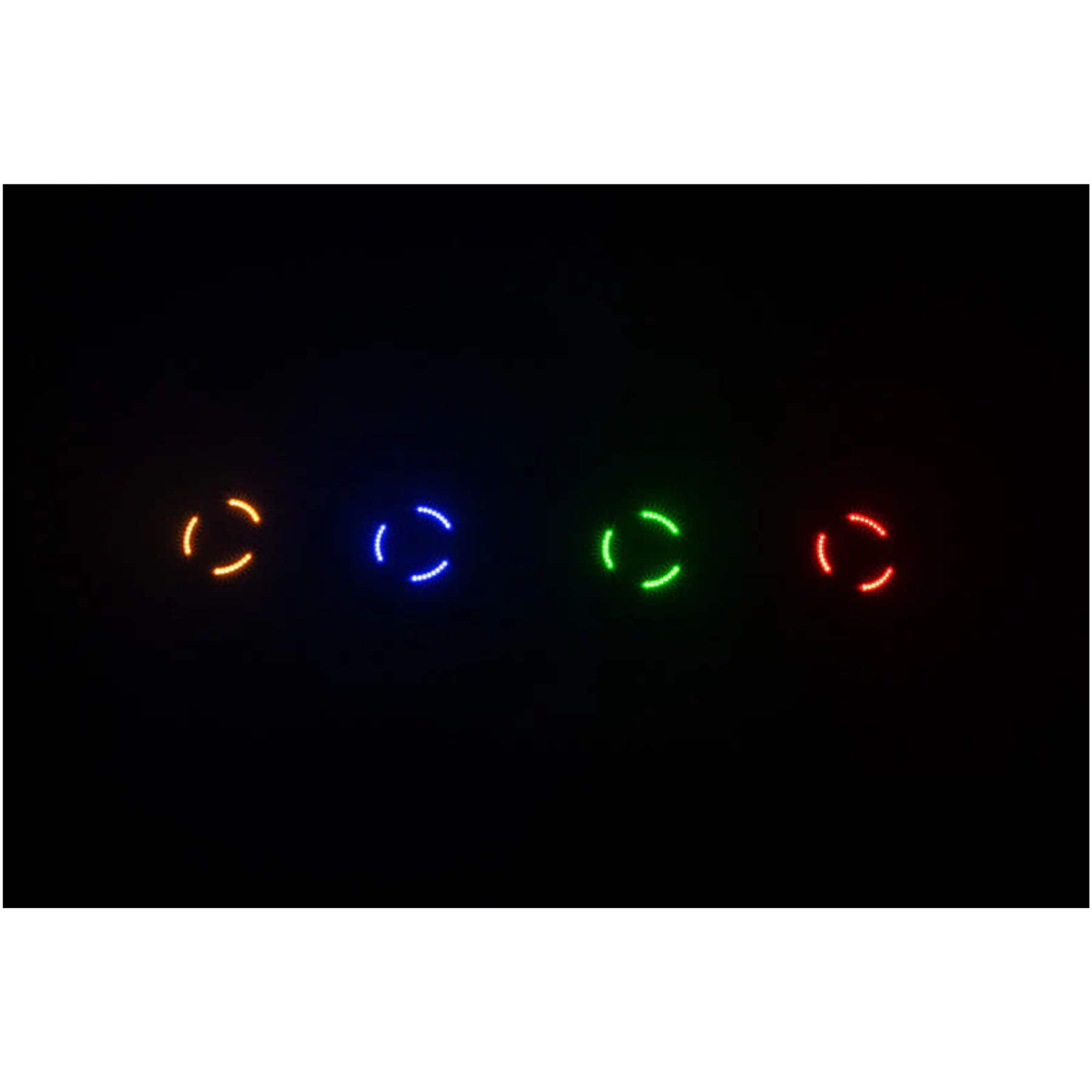

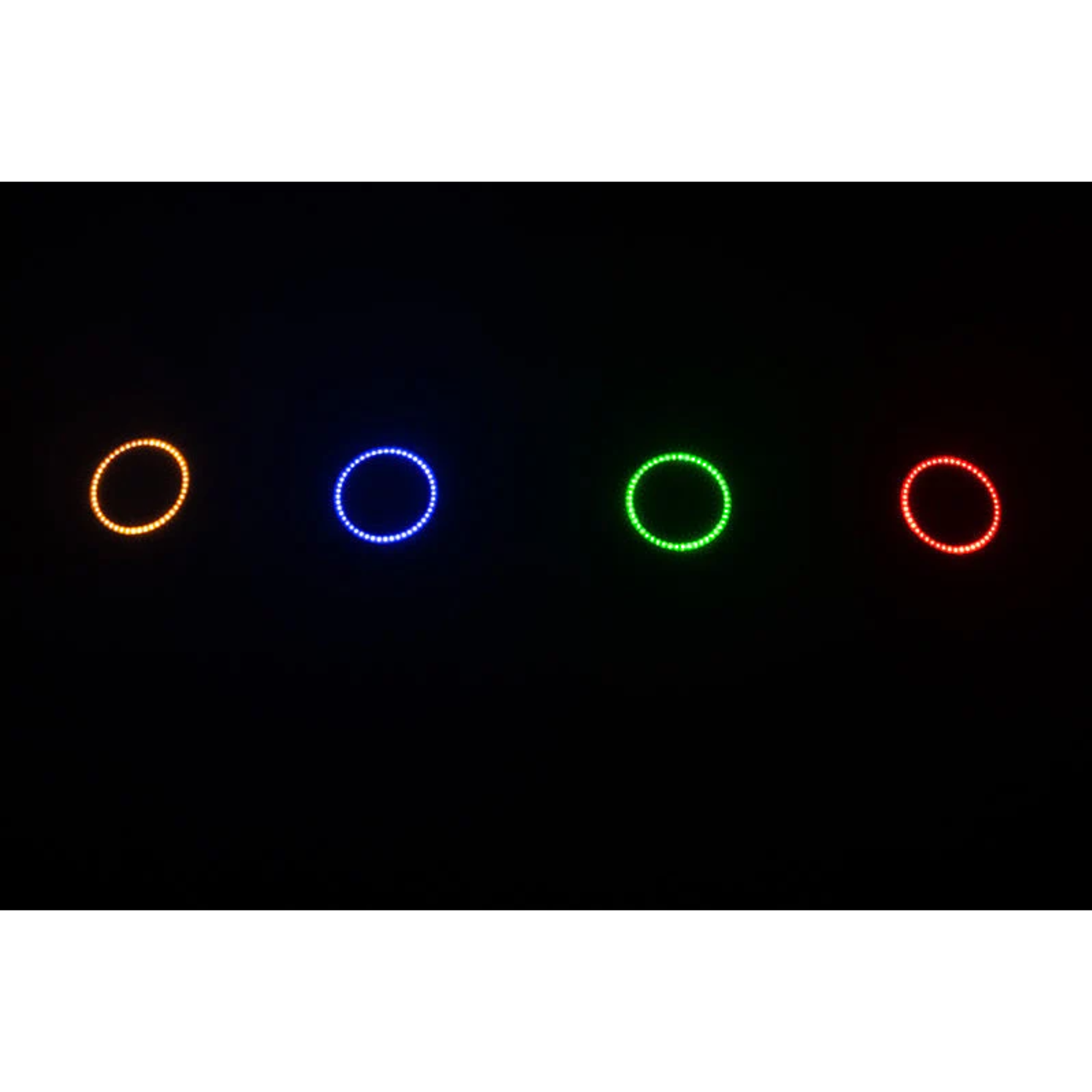

• 48-LED RGBL Halo Ring. Forty-eight 0.5W RGBL LEDs arranged in six independently controlled zones wrap the fixture face for layered motion and high-impact chase patterns.

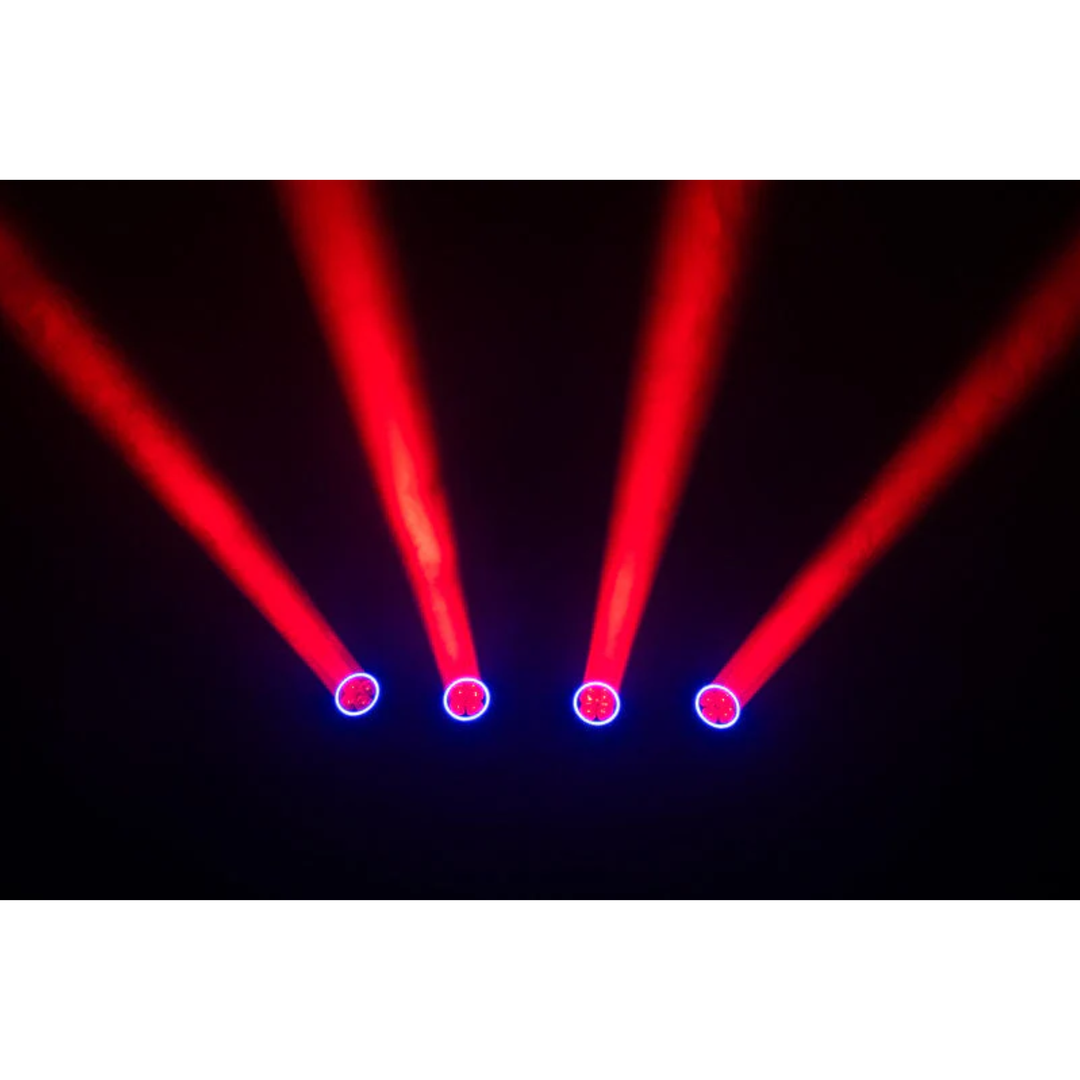

• 3°–45° Motorized Zoom. Wide zoom range transitions effortlessly from piercing beam to full wash, with ultra-fast 3-phase motors for rapid pan/tilt movement.
• 360° Continuous Rotation. Optional 360° continuous pan and tilt capability unlocks endless rotational effects and unique position programming.
• Multi-Protocol Wireless Control. Integrated Aria X2 wireless supports cable-free DMX, OTA firmware updates, and NFC setup, complementing wired DMX/RDM, sACN, ArtNet via 5-pin DMX and RJ45.

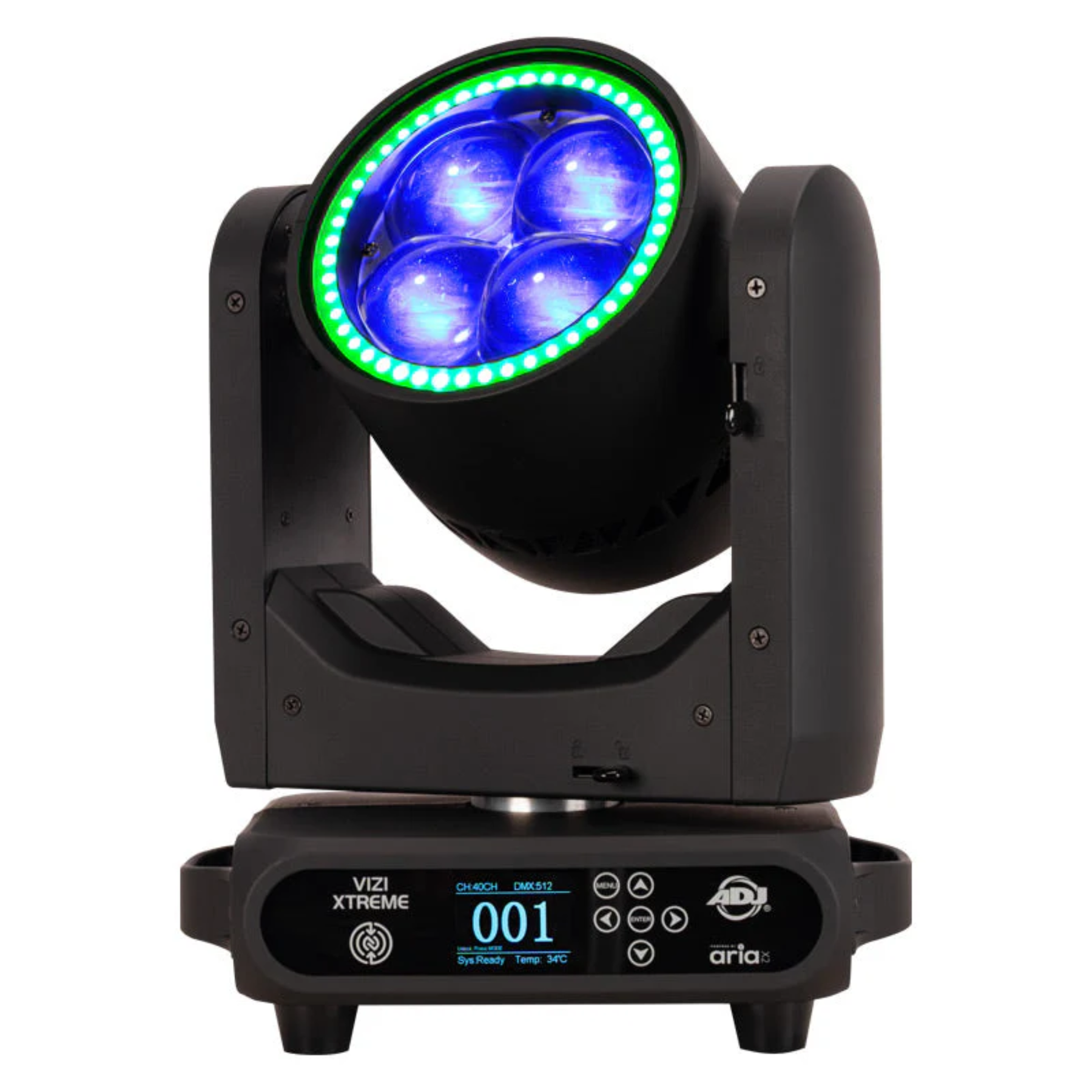

• Full-Color LCD Interface. A 180°-reversible full-color LCD display with 6-button touch panel provides intuitive on-board addressing and configuration in any hanging orientation.
• Compact & Lightweight. Weighing just 15.4 lbs (7 kg), the Vizi Xtreme is engineered for high-density touring arrays and smaller event rigs that demand professional output without the bulk.

Specifications:

• Type: 240W RGBL beam wash moving head.
• LEDs: 4 × 60W RGBL primary (2,700 lumens, CRI 60) and 48 × 0.5W RGBW ring in 6 independently controlled zones; 20,000-hour average LED life.
• Color Temperature: 2,700K – 10,000K tunable white.
• Zoom: Motorized 3° – 45°.
• Strobe: 1Hz – 10Hz electronic.
• Pan / Tilt: 540° pan / 270° tilt standard; optional 360° continuous rotation; 3-phase motors with 8/16-bit adjustable resolution; pan/tilt locks included.
• DMX Modes: 5 modes (Basic 28CH / Standard 40CH / Extended 73CH / Standard CMY 54CH / Extended CMY 63CH).
• Protocols: DMX512 with RDM, sACN, ArtNet; Aria X2 wireless with NFC setup and OTA firmware updates.

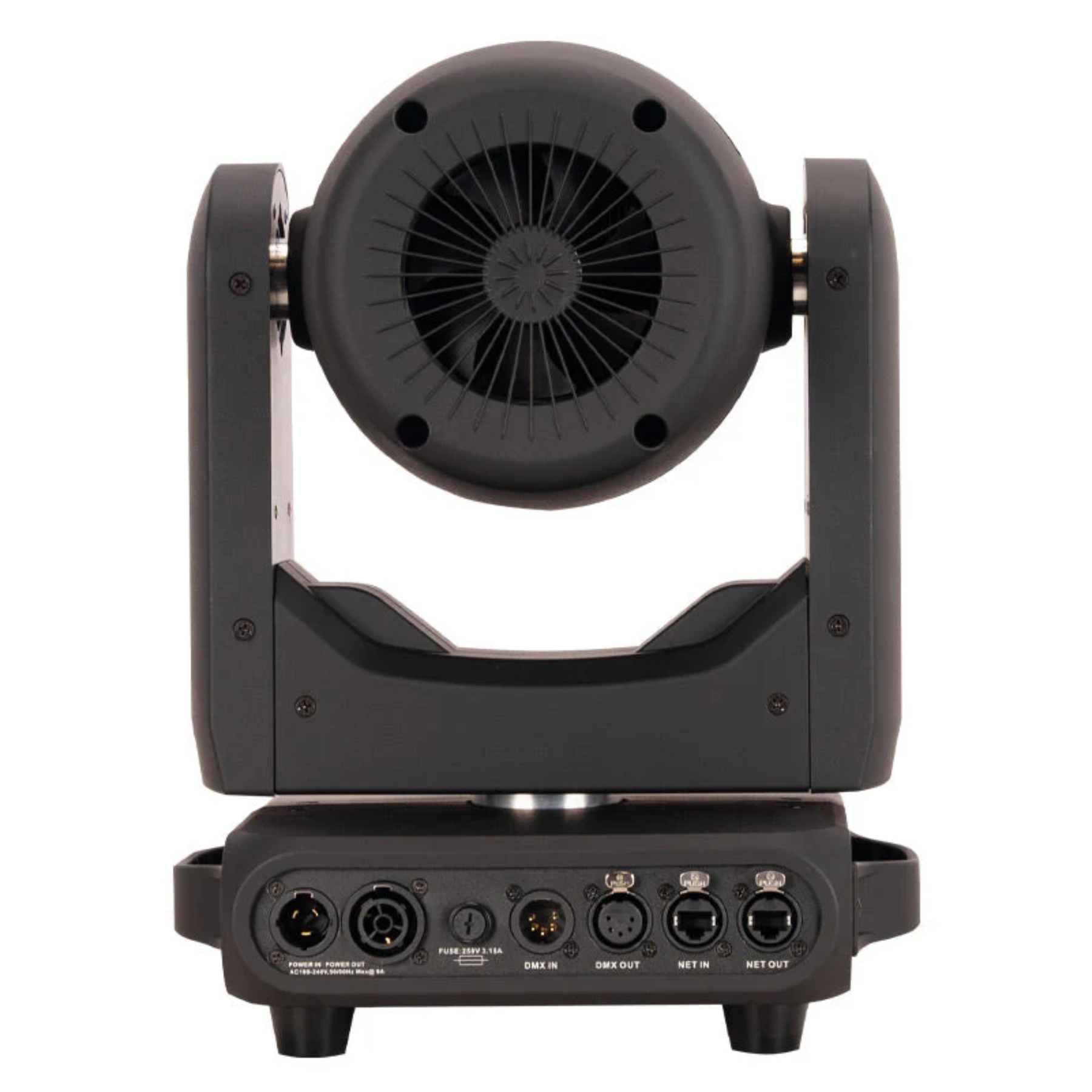

• Connections: IP20 5-pin XLR DMX In/Out; IP20 RJ45 network In/Out; IP65 locking power In/Out.
• Power: AC 100–240V, 50/60Hz; 316W max; power link 5 units @ 120V / 10 units @ 230V.
• Dimensions: 10.9″ × 7.87″ × 14.34″ (276 × 200 × 364.2 mm).
• Weight: 15.4 lbs. (7 kg).
• Certifications: CE, FCC, cETLus; IP20.
• Included: (1) outdoor locking power cable (6.5 ft.); (2) omega brackets (107 mm); (1) safety cable 3mm (1.97 ft.).
