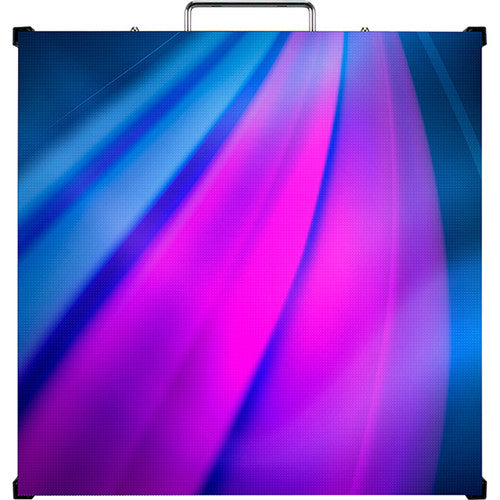

ADJ VS2 Vision Series High-Resolution 2.9mm LED Video Panel (19.68” x 19.68”)
VS2
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
SPECIFICATIONS:
• Pixel Pitch: 2.97mm (0.12”)
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 168x168; 112896 per square meter
• Size :19.68” x 19.68” x 2.74” / 500 x 500 x 69.6mm
• Module Quantity: 4
• Weight: 17 lbs. / 7.7kg.
FEATURES:
• Corner Protectors to protect the corners of the VS2 during transport, set-up and teardown

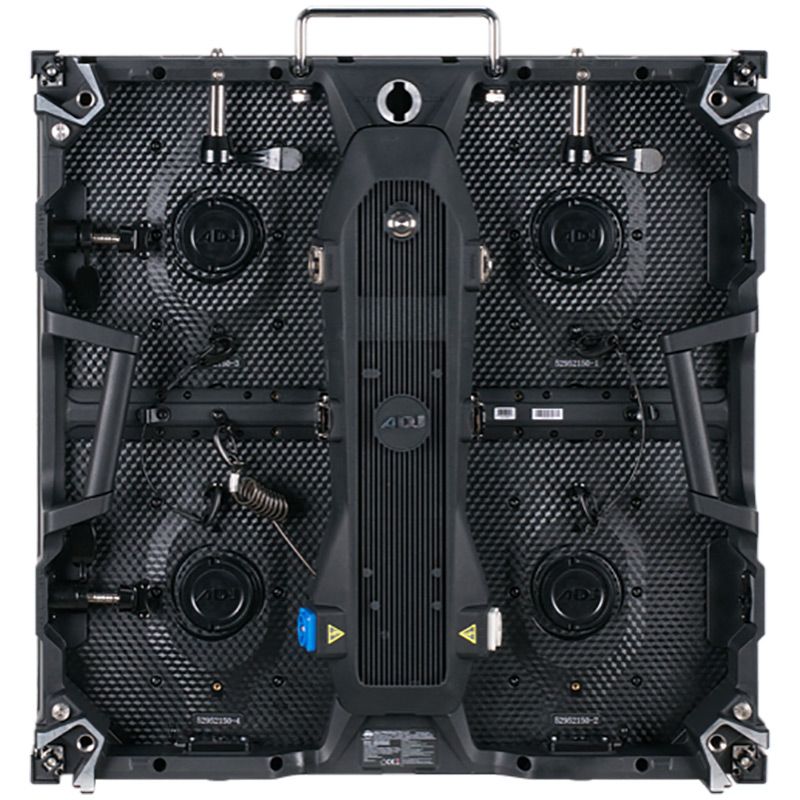

• Front and rear serviceable: 4 easy to replace video modules on each panel
• Magnets on top/bottom to temporarily connect panels before latching together allowing a single user to install an entire wall
MECHANICAL RATINGS:
• Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
• Brightness: 1000 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
• Gray Scale: ≥14-bit
• Display Color: 256
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Processing: 14-bit
POWER SUPPLY:
• Operation Power: 100~240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 68W/per panel
• Connections Power/Data: PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
• Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-75Hz
• Scan Mode: 1/21
• Refresh Rate: 3840Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <120m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
