ADJ VX400 LED Display Video Controller '- 1920×1200 60Hz (4 Ports)
VX400
Explore these payment options:
Payment plans from RBC Payplan, learn more
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day

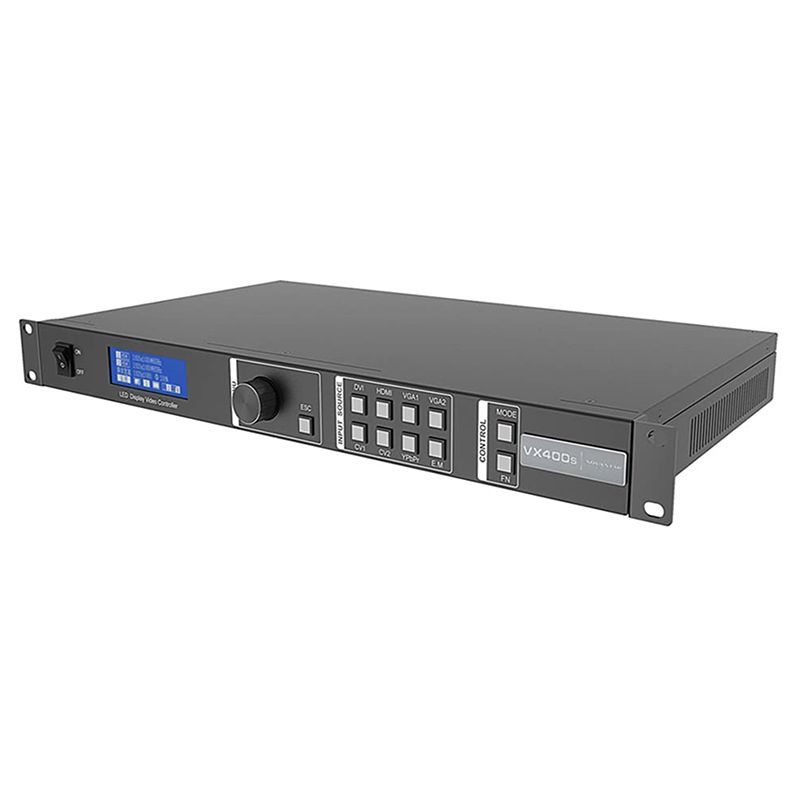

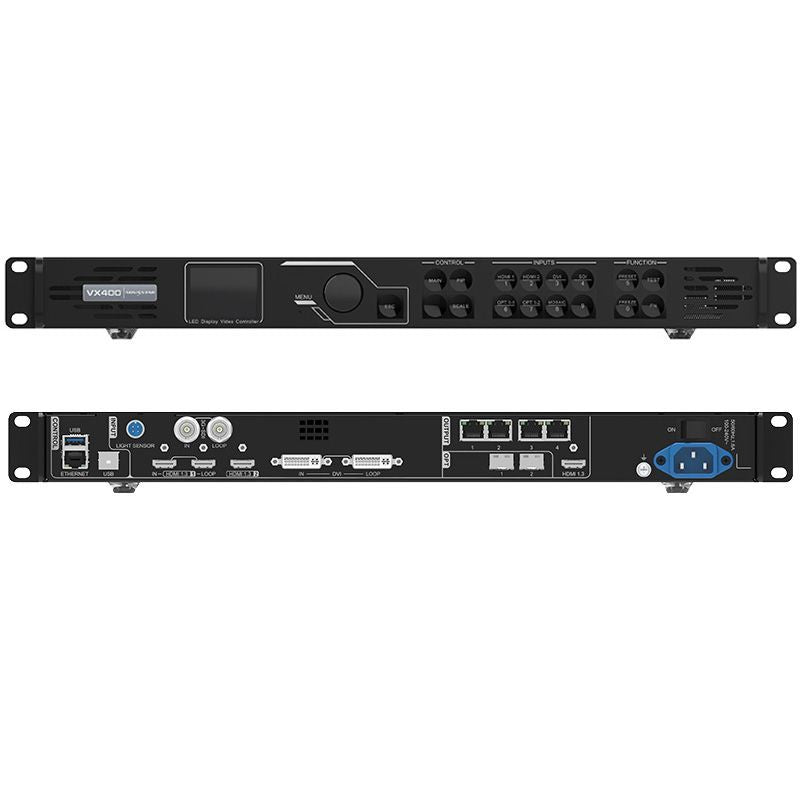

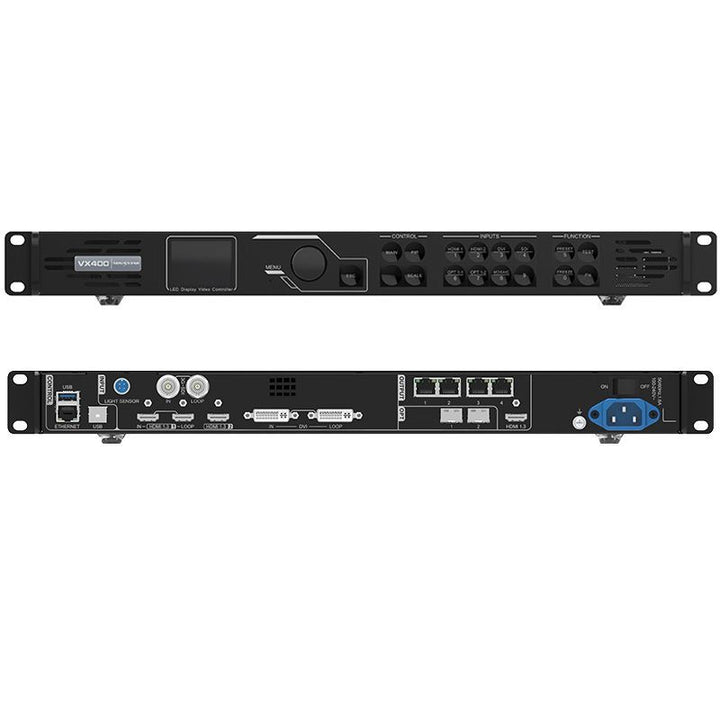

The VX400 is NovaStar's all-in-one controller integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
Input/Output Resolution: 1920x1200 at 60Hz
Video Interface: HDMI, DVI, VGA, and CVBS.
Supported LED Display Screens: Conventional screens, curved screens, and irregularly shaped screens.
Image Processing: Scaling, cropping, and frame rate conversion.
LED Control: The device supports a wide range of LED control protocols, including PWM, synchronous, and asynchronous.
Ethernet Control: The VX400 can be controlled remotely via Ethernet, allowing for easy configuration and operation.
User Interface: The device features a user-friendly interface with an LCD screen and buttons for easy control.
Power: 100-240V AC, 50/60Hz.
Dimensions: 482mm x 275mm x 44mm and weighs approximately 4kg.

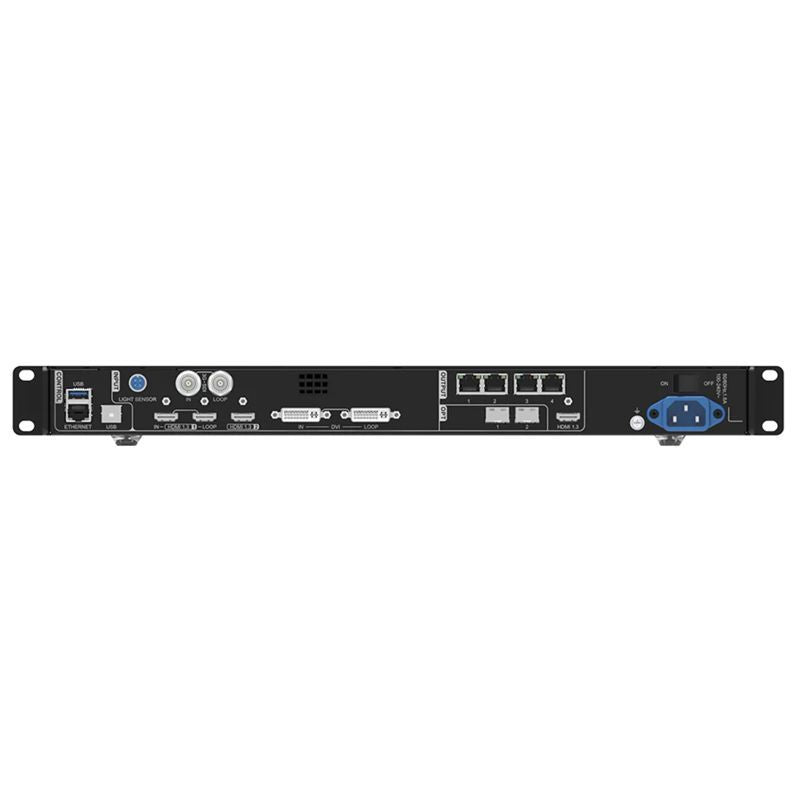

Input connectors:
1x HDMI 1.3 (IN & LOOP)
1x HDMI 1.3
1x DVI (IN & LOOP)
1x 3G-SDI (IN & LOOP)
1x optical fiber port (OPT1)
Output connectors:
4x Gigabit Ethernet ports. A single device unit drives up to 2.6 million with a maximum width of 10,240.
2x Fiber outputsOPT 1 copies the output on 4 Ethernet ports.OPT 2 copies or backs up the output on 4 Ethernet ports.
1x HDMI 1.3. For monitoring or video output.
Self-adaptive OPT 1 for either video input or sending card output. Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
Audio input and output
Audio input accompanied with HDMI input source
Audio output via a multifunction card
Output volume adjustment supported
Low Latency: Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
2x Layers:
Adjustable layer size and position
Adjustable layer priority
Powerful Video Processing
Based on SuperView III image quality processing technologies to provide stepless output scaling
One-click full screen display
Free input cropping
