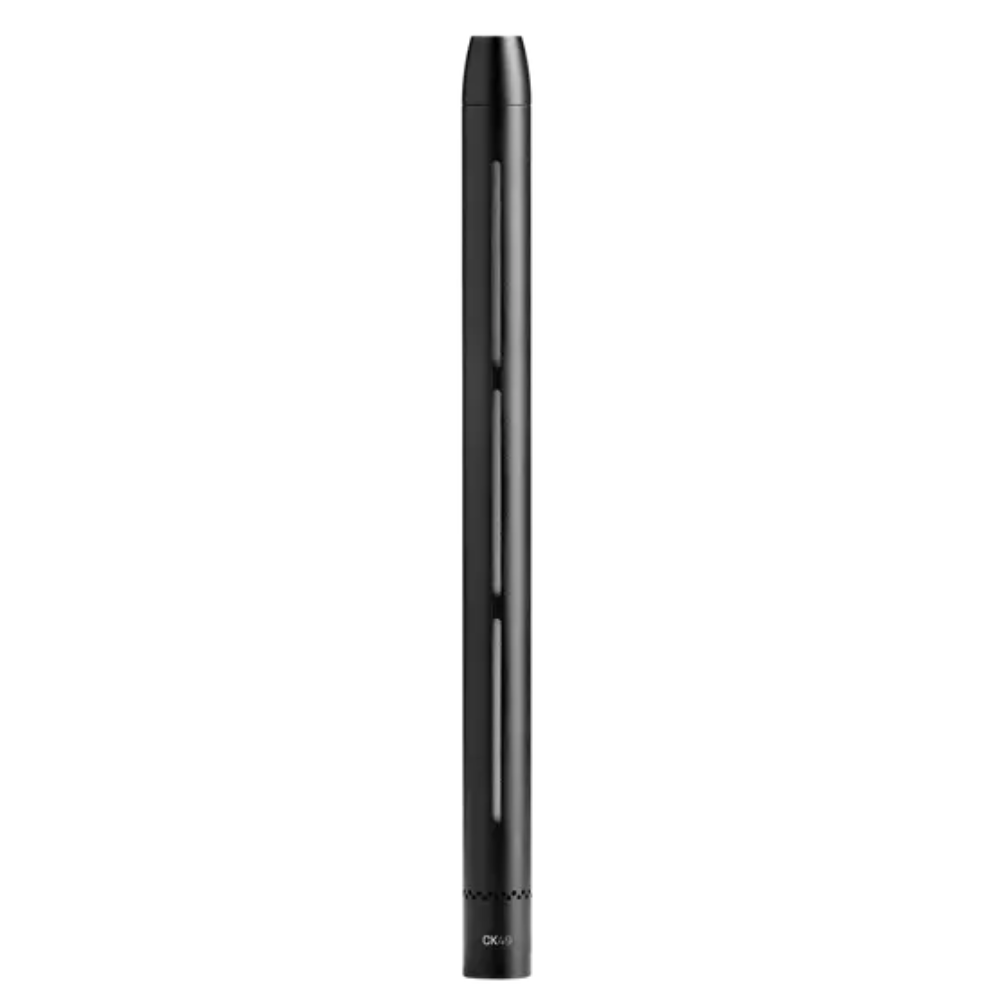

AKG CK-49 Reference shotgun condenser microphone capsule

Executive modularity

The CK49 is a reference shotgun condenser microphone capsule with an 80° pickup angle and clean off-axis response. It is an ideal tool for inexperienced speakers; when people talk into the microphone from greater distances it focuses on the voice, and when they talk into it from very short distances it reduces pop noise. Its special capsule is a further development of the legendary CK47 capsule. Like its predecessor, it has been designed using AKG's unique staple technology for brilliant studio-quality audio performance.

The CK49 capsule is integrated into an extremely slim and rugged metal housing. It fits all gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module. To prevent contact problems the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK49 comes complete with a windscreen that efficiently reduces wind and pop noise.

Key Features

• For Modular Plus Series Microphones
• Fits HM1000 M Hanging Module
• Tight Hypercardioid Polar Pattern
• For Studio-Quality Audio Performance
• Eliminates Off-Axis Noise
• 80° Pickup Angle
• Includes Windscreen

Specifications

Sound Field    Mono
Transducer      Condenser
Polar Pattern   Hypercardioid
Frequency Range          60 Hz to 20 kHz
Signal to Noise Ratio    64 dB A-Weighted
Equivalent Noise Level  30 dB A-Weighted
Sensitivity       10 mV/Pa

General

Length      0.79" / 20 mm
Diameter  0.35" / 9 mm
Weight     0.88 oz / 24.9 g
