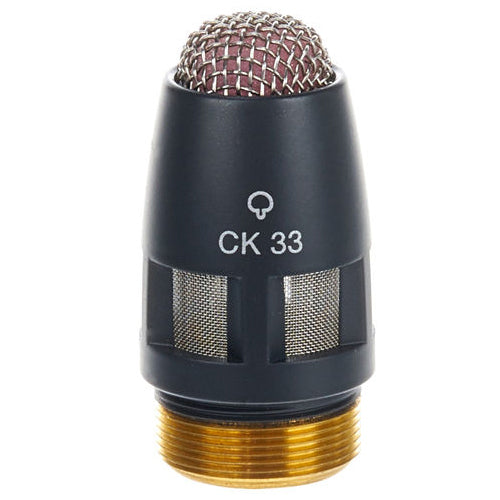

AKG CK33 High-Performance Hypercardioid Condenser Microphone Capsule

Proven reliability

The CK33 is a high-performance hypercardioid condenser microphone capsule and a good choice in situations when noise comes from the sides or people talk into the microphone from greater distances. The CK33 capsule is integrated into a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which reduces wind and pop noise.

Specifications:

Audio frequency bandwidth: 50 - 20000 Hz

Equivalent noise level: 21 dB-A

Sensitivity: 20 mV/Pa

Signal to Noise: 73 dB-A

Electrical impedance: 600 Ohms

Recommended load impedance: 2000 Ohms

Polar Pattern: Hypercardioid

Dimensions

• Height: 20mm
• Diameter: 13.5mm
• Net Weight: 5g

Dark grey matte finish

Audio Output Type: Modular Series Standard

Powering Interface

• Voltage: 9 to 52 V
• Current: 3 mA
