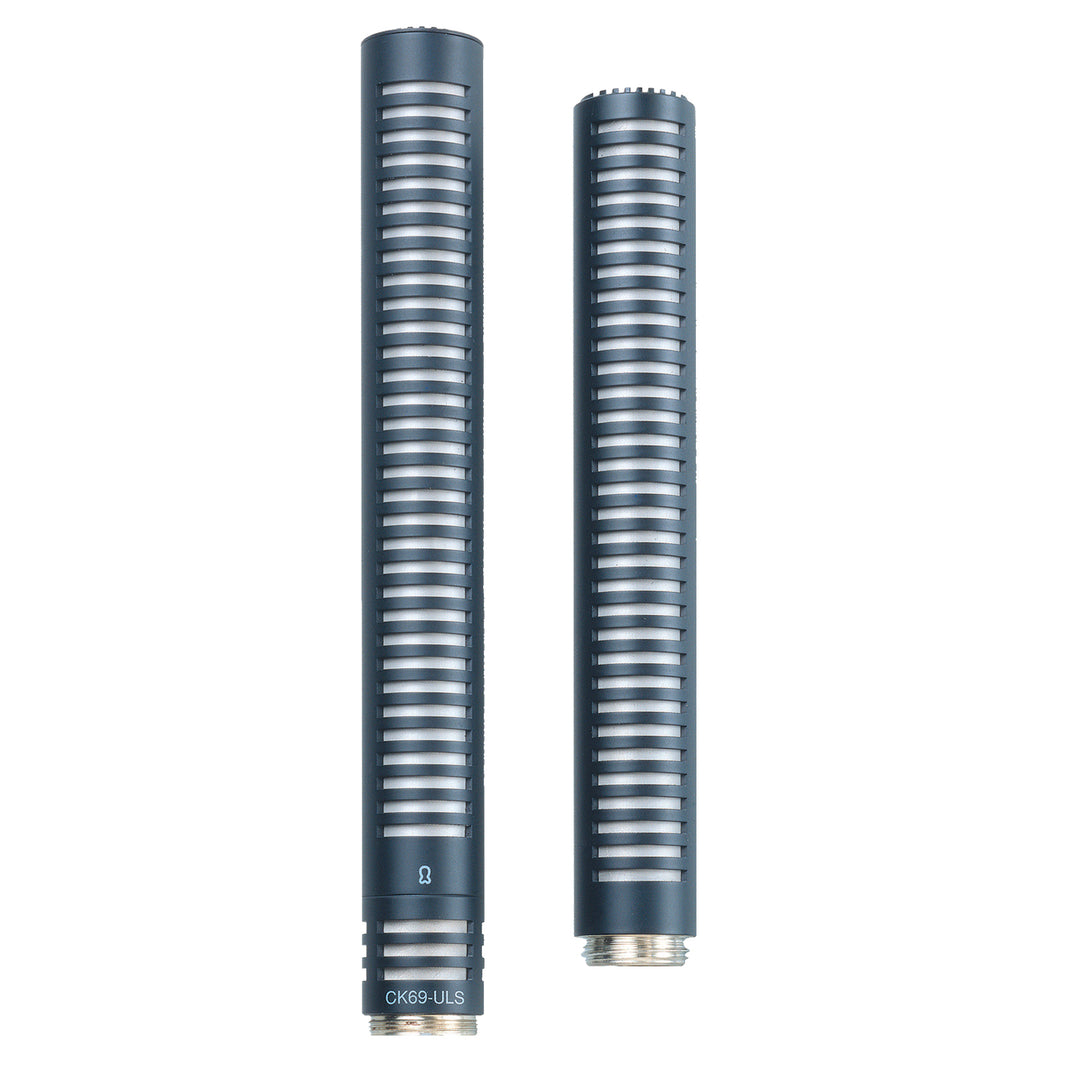

AKG CK69 ULS Reference Small Condenser Microphone Shotgun Capsule

Just pure sound

The CK69 ULS professional shotgun capsule delivers perfect results for film/TV outdoor applications or indoor front-of-stage recording. It has a unique two-shotgun-capsules-in-one-microphone design, which enables quick and easy conversion from long- to short-distance applications. It is also a perfect microphone for interviews in noisy environments. The CK69 ULS works exclusively with the C480 B pre-amp. To ensure an extra-long life and a reliable connection, the capsule is equipped with large-area, self-cleaning, gold-plated contacts. An eye for detail paired with the highest manufacturing standards makes the Ultra Linear Series capsules the choice of knowledgeable technicians worldwide.

Specifications:

Audio frequency bandwidth: 20 - 18000 Hz

Equivalent noise level: 9 dB-A

Sensitivity: 27 mV/Pa

Signal to Noise: 85 dB-A

Electrical impedance: 150 Ohms

Recommended load impedance: 2000 Ohms

Polar Pattern: Hypercardioid

Dimensions

• Height: 176/317 mm
• Diameter: 21 mm

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 48 to 48 V
• Current: 2 mA
