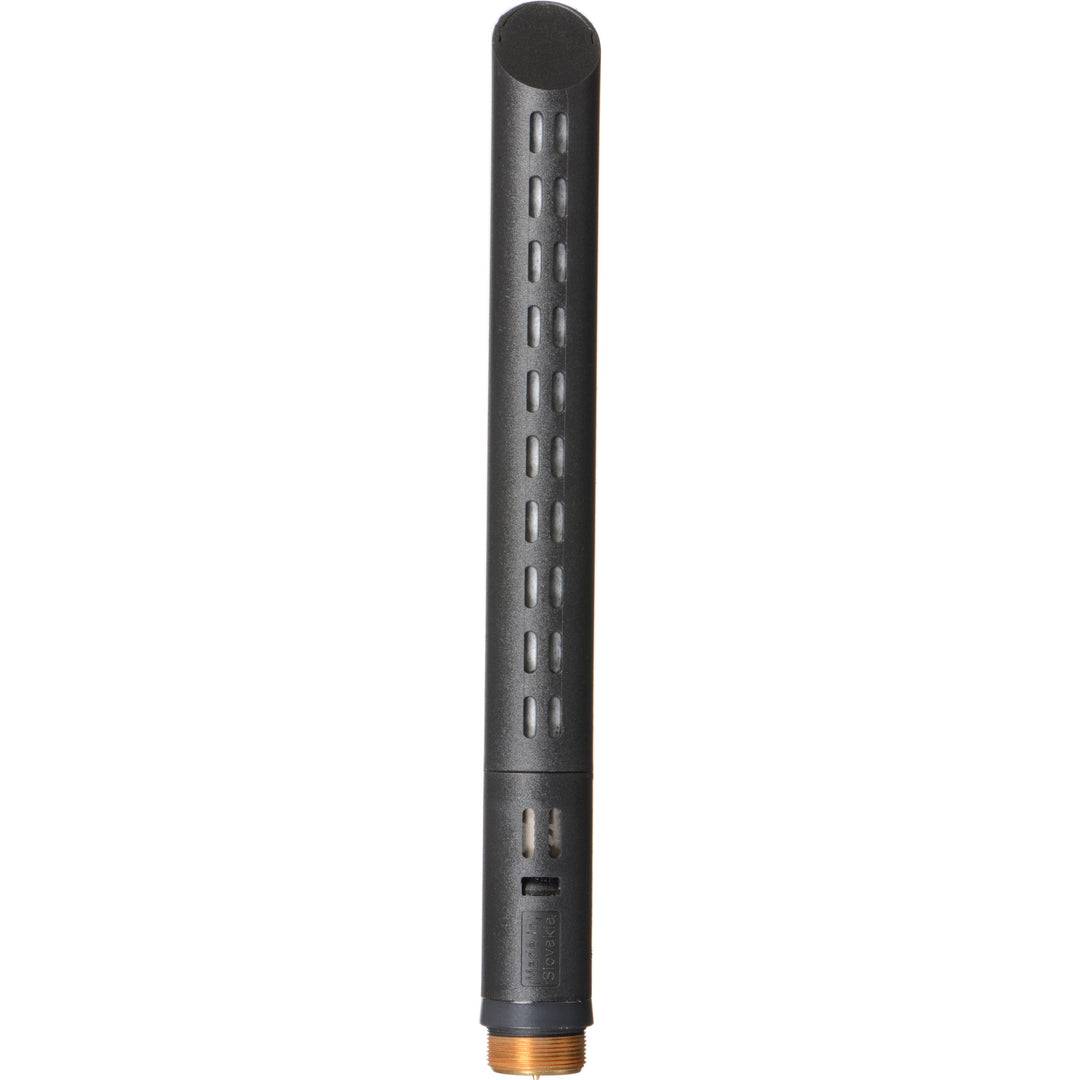

AKG CK80 High-Performance Shotgun Condenser Microphone Capsule
CK-80
Payment plans from Affirm, learn more
- AKG
- Shipping Calculated at checkout, most in stock products ship same day
Proven reliability
The CK80 high-performance shotgun microphone capsule provides an 80° pickup angle and offers a speech-optimized frequency response. It offers an unbeatable price/performance ratio and good speech intelligibility in acoustically critical applications. The CK80 capsule fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK80 comes complete with a professional windscreen that reduces wind and pop noise.
Specifications:
Audio frequency bandwidth: 60 - 15000 Hz
Equivalent noise level: 17 dB-A
Sensitivity: 30 mV/Pa
Signal to Noise: 77 dB-A
Electrical impedance: 600 Ohms
Recommended load impedance: 2000 Ohms
Polar Pattern: Hypercardioid
Dimensions
- Height: 146 mm
- Diameter: 13.5 mm
- Net Weight: 15 g
Matte dark grey finish
Audio Output Type: Modular Series Standard
Powering Interface
- Voltage: 9 to 52 V
- Current: 3 mA
