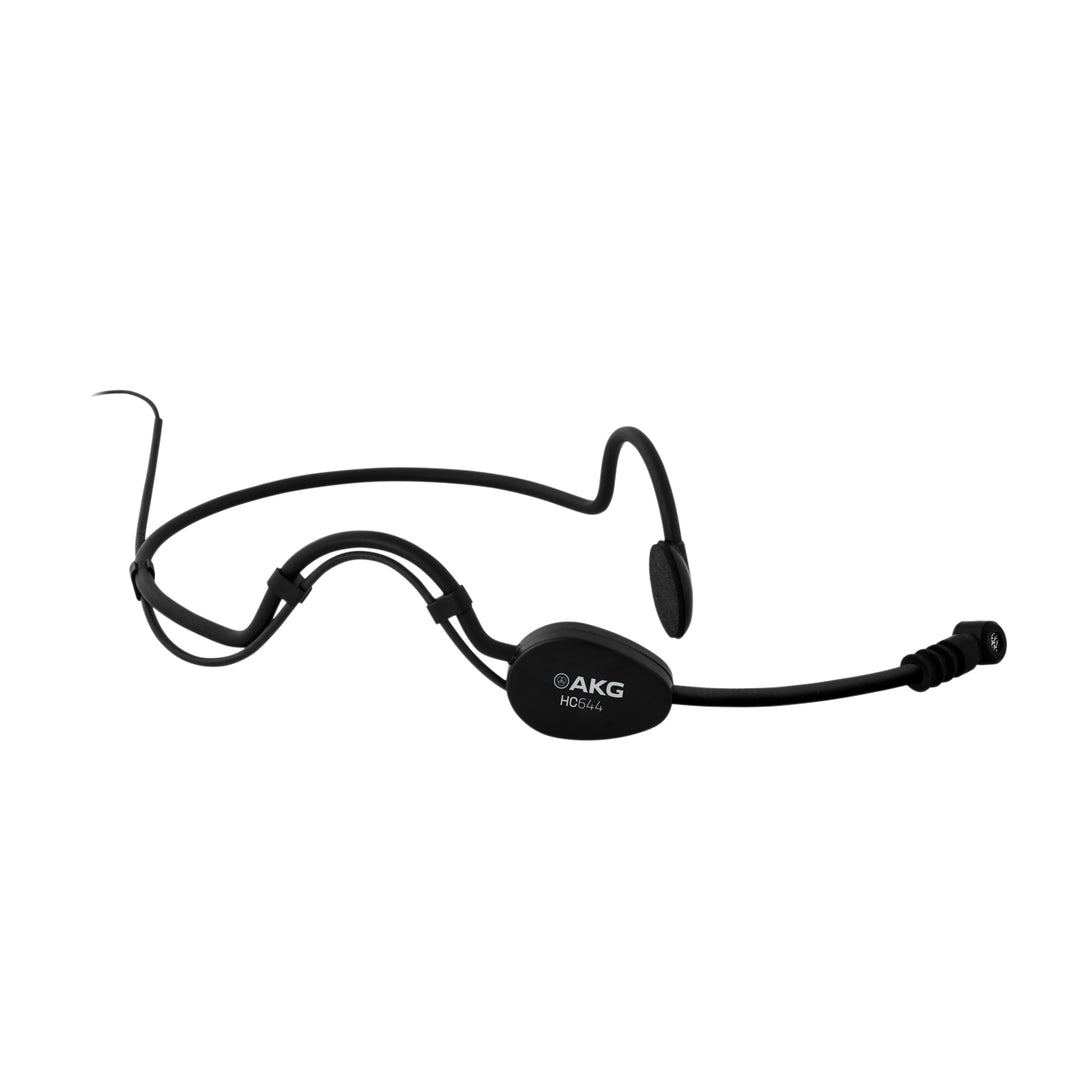

AKG HC644 MD Head-Worn Wireless Microphone

Stay smart and dry

Following up on the legendary performance of the C544 and C555, AKG has created the next generation of head-worn microphone, the new HC644 MD. This high-performance head-worn condenser microphone is the perfect tool for presenters in the corporate market but also ideal for sport applications like aerobics. More and more wireless systems in the low to mid-price range are based on 2.4 GHz technology causing nasty interference with microphones. The new HC644 MD is well protected against those problems. The main improvements of the new version are a smaller capsule design with a higher sensitivity, an exceptional RF shielding, a sweat-resistant design and the ability to fit to all major wireless systems on the market.

Specifications:

Type: Back-electret condenser

Polar Pattern: Cardioid

Sensitivity (1m): 20 mV/Pa (9V/18kOhms)

Audio frequency bandwidth: 100 - 15000 Hz (+/-3dB)

Electrical impedance: 200 Ohms

Recommended load impedance: 2000 Ohms

Equivalent noise level: 34 dBA

Signal to Noise (1Pa): 60 dBA

Max. SPL for 1 % THD: 135 dB

Temperature range: -20°C to +60°C (14°F - 140°F)

Dimensions (LxWxH): 200 mm x 130 mm x 35 mm

Net Weight: 30 g (including cable)

Audio Output Connector: 2-pin Microdot

Powering Interface

• Operation voltage: 9V (2V - 10V)
• Recommended serial impedance: 18kOhms (2kOhms - 18kOhms)
• Current Consumption: ≤ 500μA RL=2.2Kohms Vs=2.0VDC

Applications

• Sports / Fitness
• Assisted Listening
• Sound Reinforcement
• Presentation
• Retail
