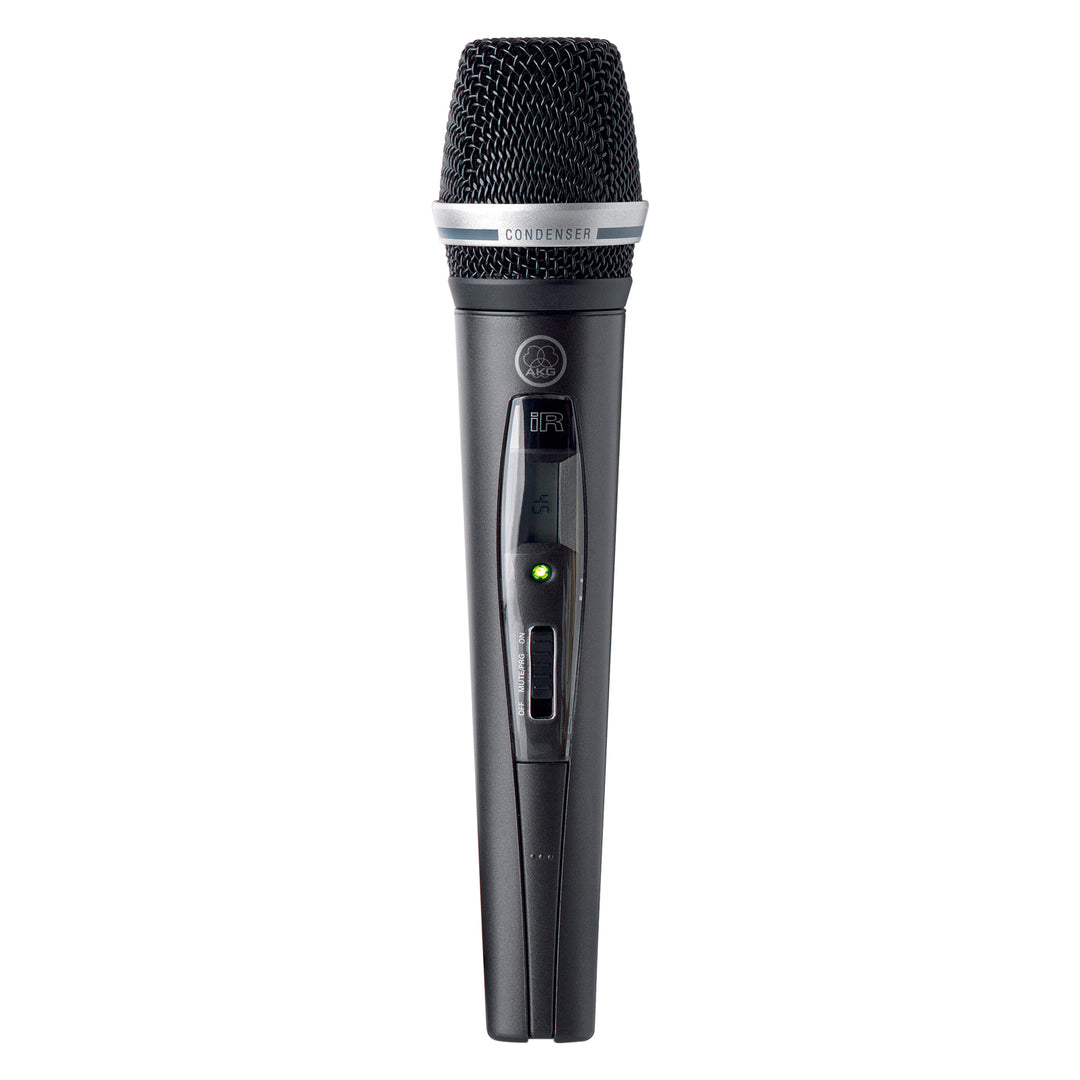

AKG HT470 C5 Band7 50mW Professional Wireless Handheld Transmitter

Flexible and expandable

The rugged HT470 is an analog professional wireless handheld transmitter with pilot tone transmission to prevent unexpected startup noise. It continuously sends transmitter data, including low-battery information, to the receiver. An infrared data link in conjunction with the automatic frequency setup makes the HT470 extremely simple to use. The unique dipole-antenna design ensures reliable transmission even when one pole of the antenna is covered completely by the user's hand. An enhanced battery identification automatically detects the used battery type and allows up to 14 hours of operation on one AA-size battery. The display shows the remaining operating time in hours.

Specifications:

Audio frequency bandwidth: 35 - 20000 Hz

Signal to Noise: 120 dB-A

THD at 1 kHz: 0.7 Prozent

Operating temperature range: -10 to 55 Celsius

Peak deviation: 48 kHz

Nominal deviation: 20 kHz

Radio Output Power (min/max): 10 to 50 mW

Switching bandwidth: 30 MHz

Recommended simultaneous channels: 24

Number of selectable frequencies: 1220 (selectable in 25kHz steps)

Frequency Selection: Selectable frequency in 25kHz steps

Radio range (Line of sight): 100m (depending on antenna system)

Modulation: FM (Frequency Modulation)

Switchable RF power: no

Pilot Tone: yes

Dimensions:

• Height: 237 mm
• Width: 51 mm
• Net Weight: 240 g

Battery 2

• Battery type: HR 6 AA (NiHM) rechargeable
• Number of batteries: 1
• Operating time: 8 h

Battery 1

• Battery type: LR6 AA alkaline
• Number of batteries: 1
• Operating time: 7 h
