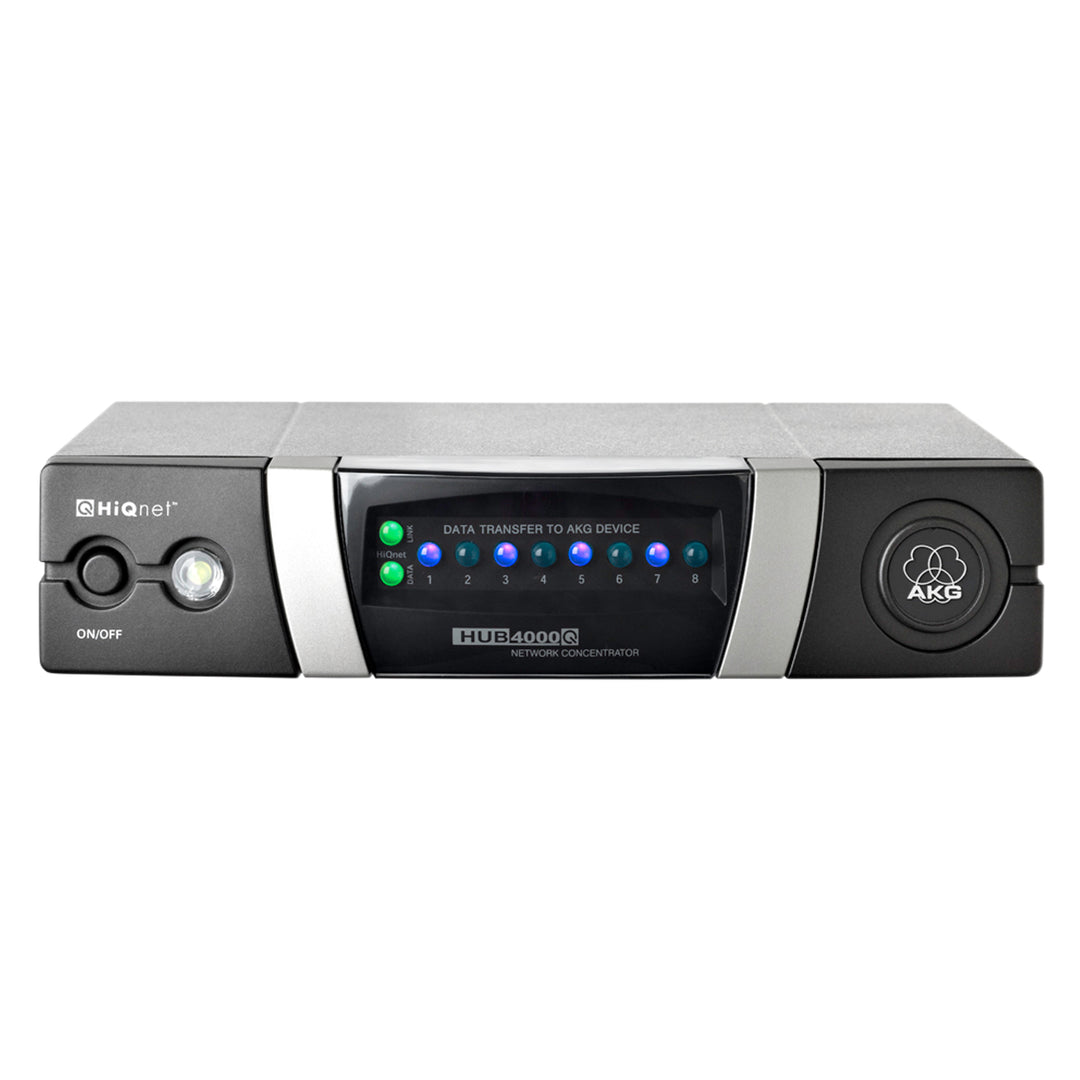

AKG HUB4000 Q - HIQNET Ethernet Interface
HUB4000-Q-NONE
Payment plans from Affirm, learn more
- AKG
- Shipping Calculated at checkout, most in stock products ship same day
Make the connection - supports DMS700, WMS4000/4500 and IVM4/4500
The HUB 4000 Q reference HiQnet® ethernet interface allows you to connect up to eight AKG wireless devices to a HiQnet network. HUB 4000 Q connects to the network via a standard CAT-5 cable. For large wireless systems, several HUB 4000 Qs can be cascaded using commercial Ethernet switches (or routers, wireless hubs, etc.), allowing you to configure and monitor complex systems from a single application. HUB 4000 Q connects the wireless system to the applications Harman Audio Architect, AKG Wireless app and VM2. The HUB 4000 Q comes in a rugged half-rack metal housing and provides 10 LEDs with information on the data transfer status as well as 4 DIP switches to set up the IP address. The HUB 4000 Q allows you to integrate DMS 700, WMS 4000/4500 professional wireless microphones, and an IVM 4 professional in-ear monitoring system into any HiQnet ® system.
Specifications:
Dimensions: 200 x 190 x 44 mm / 7.8 x 7.5 x 1.7 in
Weight: 970g / 2.2lbs
Current consumption: 200 mA max
Ambient temperature: -10°C to +60°C
Connectors for AKG devices: RJ11
Connector for network card: RJ45
