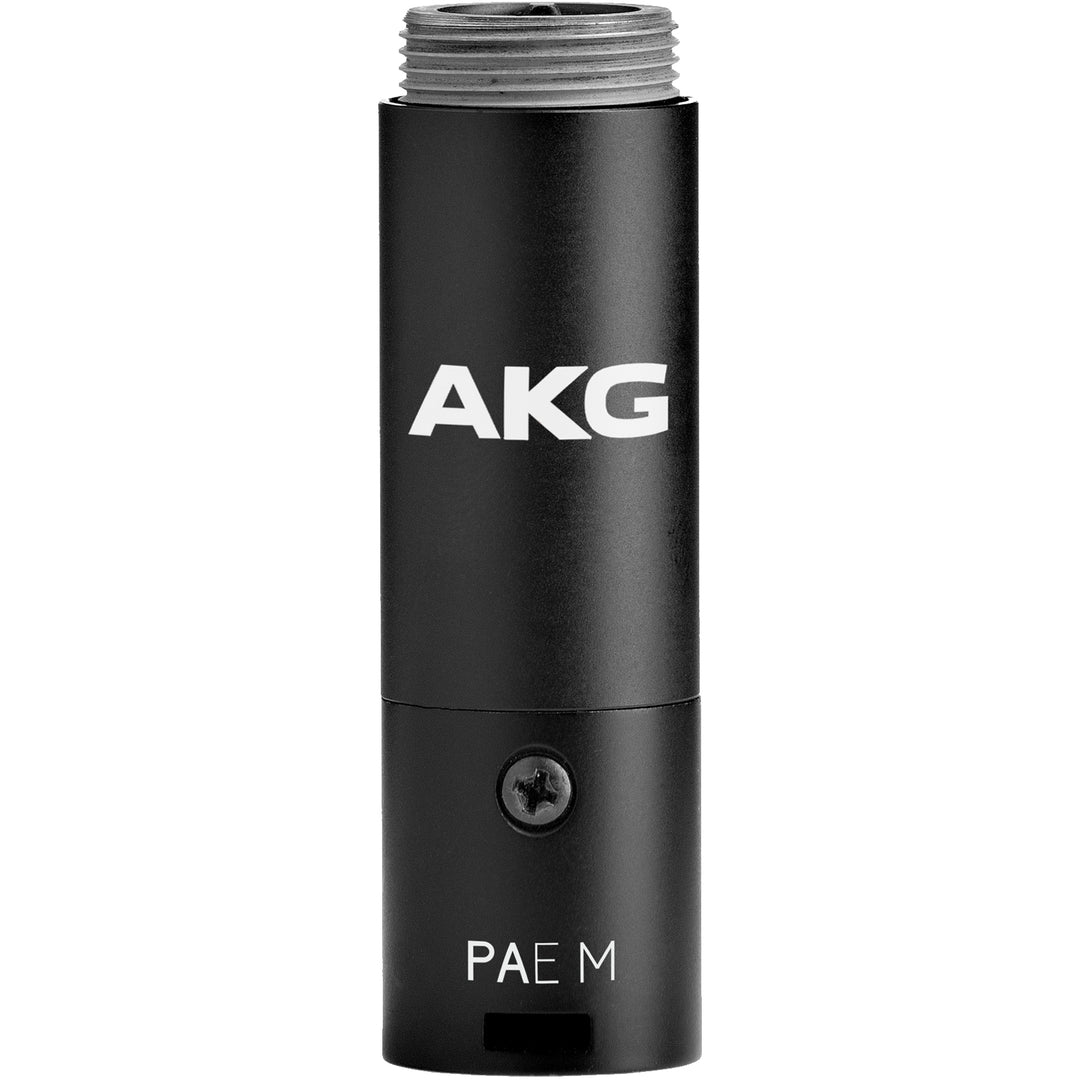

AKG Reference Phantom Power Module for DAM+ Series
PAE-M
Payment plans from Affirm, learn more
- AKG
- Shipping Calculated at checkout, most in stock products ship same day
The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise. The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
General Specifications
Audio frequency bandwidth: 20 - 20000 Hz
Bass cut filter: 150 Hz
Electrical impedance: < 600 Ohms
Recommended load impedance: > 2000 Ohms
Powering Interface
Voltage: 9 to 52 V
Current: 3.5 mA
Dimensions
Height: 65.5 mm (2.58 in)
Diameter: 19.1 mm (0.75 in)
Net Weight: 43 g (1.51 oz)
Audio Output
Type: Balanced XLR
Gender: Male
Contacts: 3-pin
