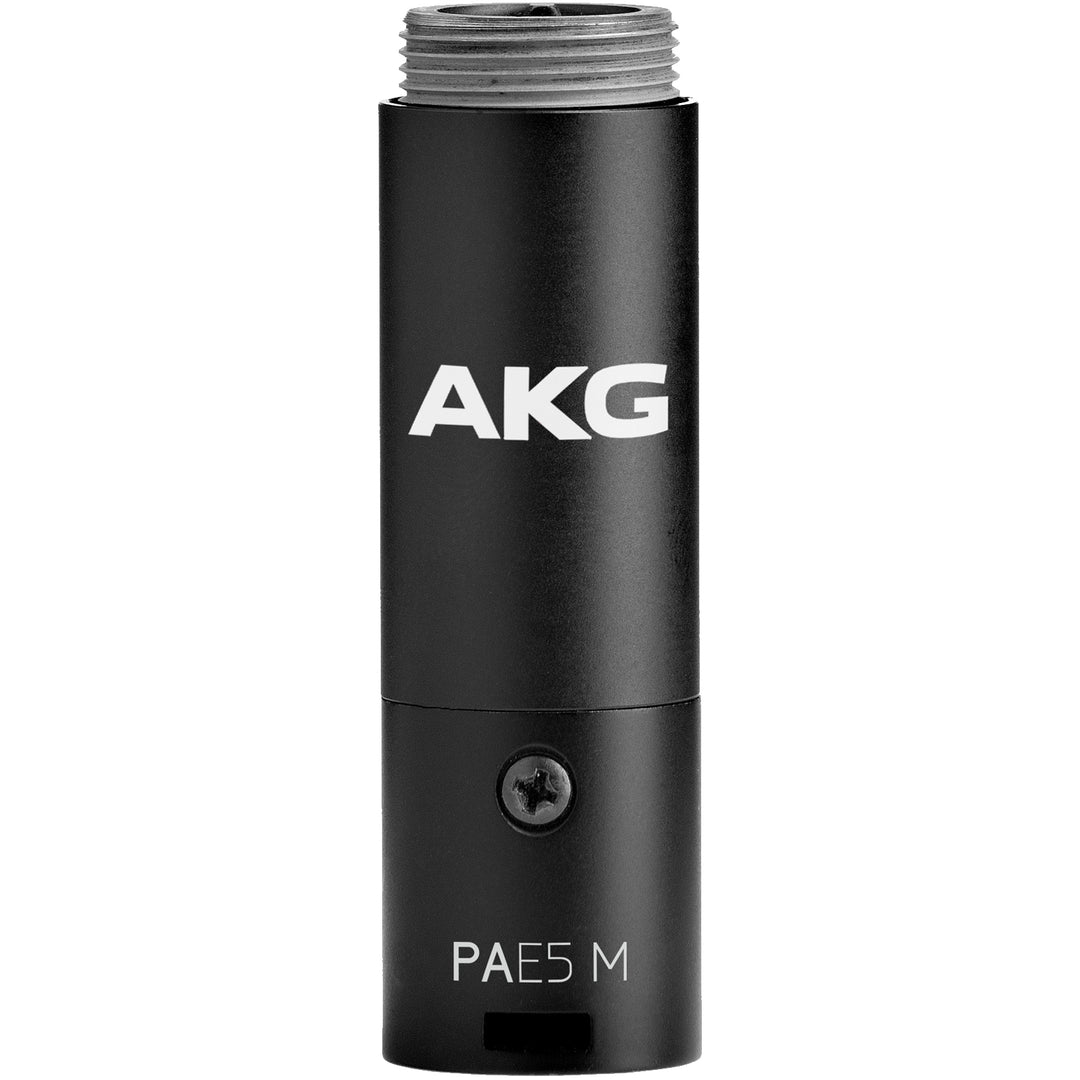

AKG PAE5 M Reference Phantom Power Module
PAE5-M
Payment plans from Affirm, learn more
- AKG
- Shipping Calculated at checkout, most in stock products ship same day
Executive modularity
The PAE5 M reference phantom power module for fixed and mobile installation provides a five-pin XLR connector that allows the audio signal and the control voltage for a LED ring to be fed separately. Thus, the LED ring can be activated remotely by a 9-52V logic output from any automatic mixer to show the mic on status. With its wide voltage range the module will fit most available microphone mixers. The PAE5 M features a bass roll off for reduction of structure-borne noise. Its integrated system connector with gold-plated contacts securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.
Specifications:
Audio frequency bandwidth: 20 - 20000 Hz
Bass cut filter: 150 H
zElectrical impedance: < 600 Ohms
Recommended load impedance: > 2000 Ohms
Dimensions
- Height: 65.5 mm (2.58 in)
- Diameter: 19.1 mm (0.75 in)
- Net Weight: 43 g (1.51 oz)
Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 5-pin
Powering Interface
- Voltage: 9 to 52 V
- Current: 3.5 mA
