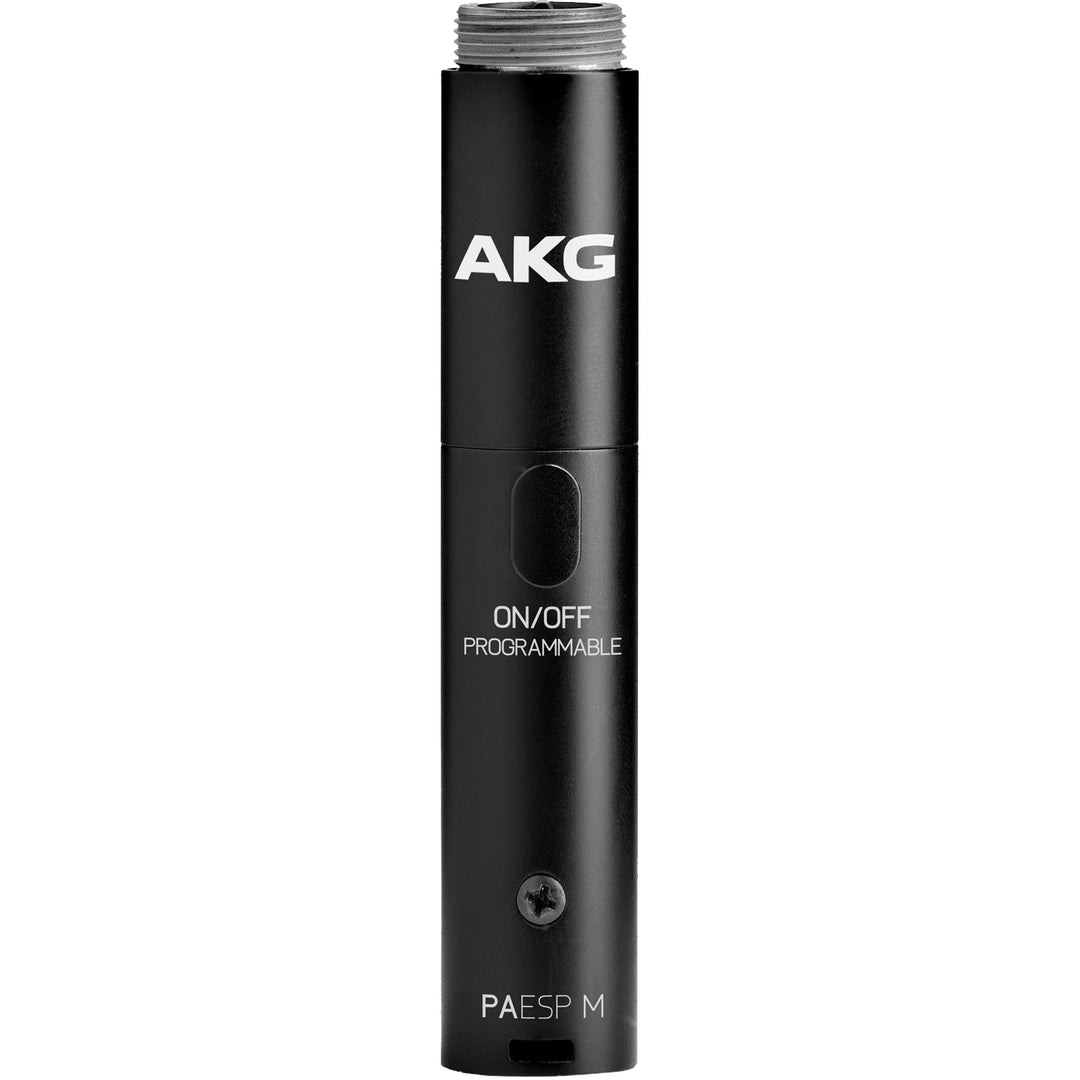

AKG PAESP M Programmable Phantom Power Module for DAM+ Series

Executive modularity

The DAM+ Series PAESP M is a programmable phantom power module for fixed and mobile installation. With its wide voltage range the module will fit most available microphone mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off, follow mic function) as well as the mic switch mode (push to mute, push to talk, push on - push off). The PAESP M features a completely noiseless microphone switch. Rather than actually disconnecting the signal, it reduces the level by 26dB, thus avoiding the irritating crackling sound when phantom powering is interrupted. The switch is inconspicuously placed but easily accessible for simple handling even by inexperienced talkers. The integrated system connector with gold-plated contacts securely fits all available mounting modules of the DAM+ Series.

Specifications:

Audio frequency bandwidth: 20 - 20000 Hz

Bass cut filter: 150 Hz

Electrical impedance: < 600 Ohms

Recommended load impedance: > 2000 Ohms

Dimensions

• Height: 100.5 mm (3.96 in)
• Diameter: 19.1 mm (0.75 in)
• Net Weight: 63 g (2.22 oz)

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 9 to 52 V
• Current: 4 mA
