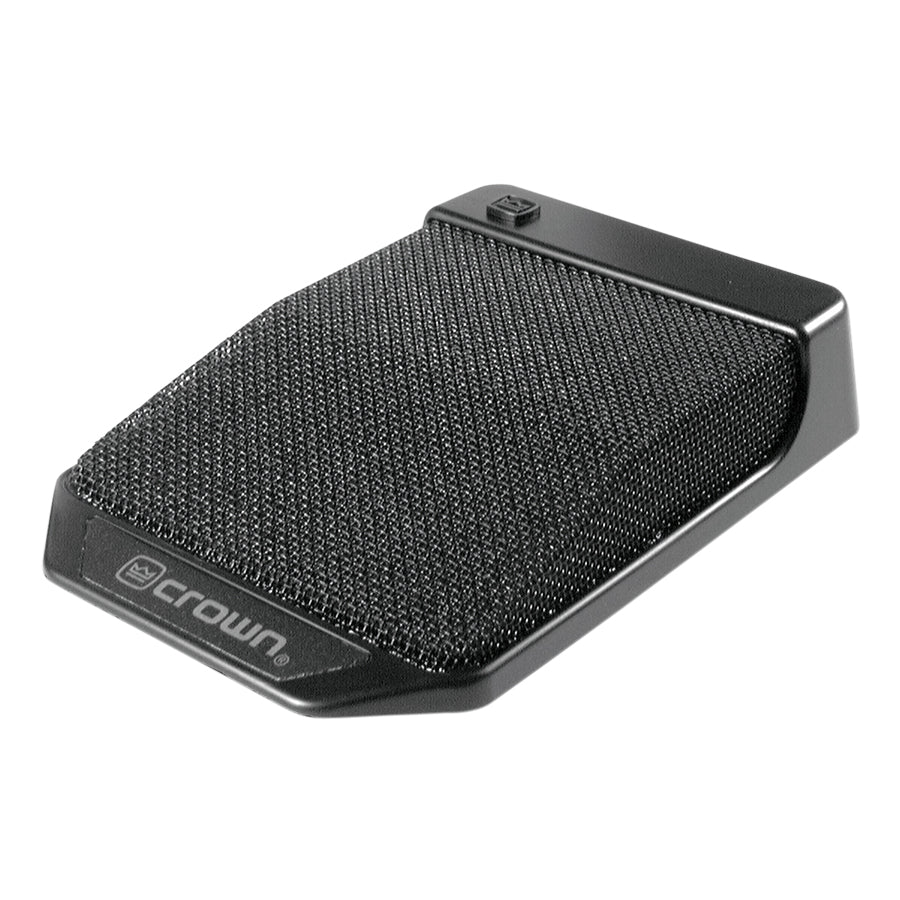

AKG Professional Boundary Layer Microphone

Taking care of business

The PCC170 is a professional boundary layer microphone with supercardioid polar pattern to minimize background noise and feedback. The microphone is designed for use on boardroom tables or lecterns. Providing a bass-tilt switch, allows the user to tailor the low-end response and reduce subsonic noise. The included RFI suppression ensures trouble-free operation even with active cell phones nearby. For easy installation, the PCC170 offers an XLR connector and a detachable cable.

Specifications:

Dimensions (LxWxH): 123mm x 86mm x 23mm)

Audio frequency bandwidth: 50 - 20000 Hz

Equivalent noise level: 22 dB-A

Sensitivity: 22 mV/Pa

Signal to Noise: 72 dB-A

Audio Output

• Type: Switchcraft TB3M
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 12 to 48 V
