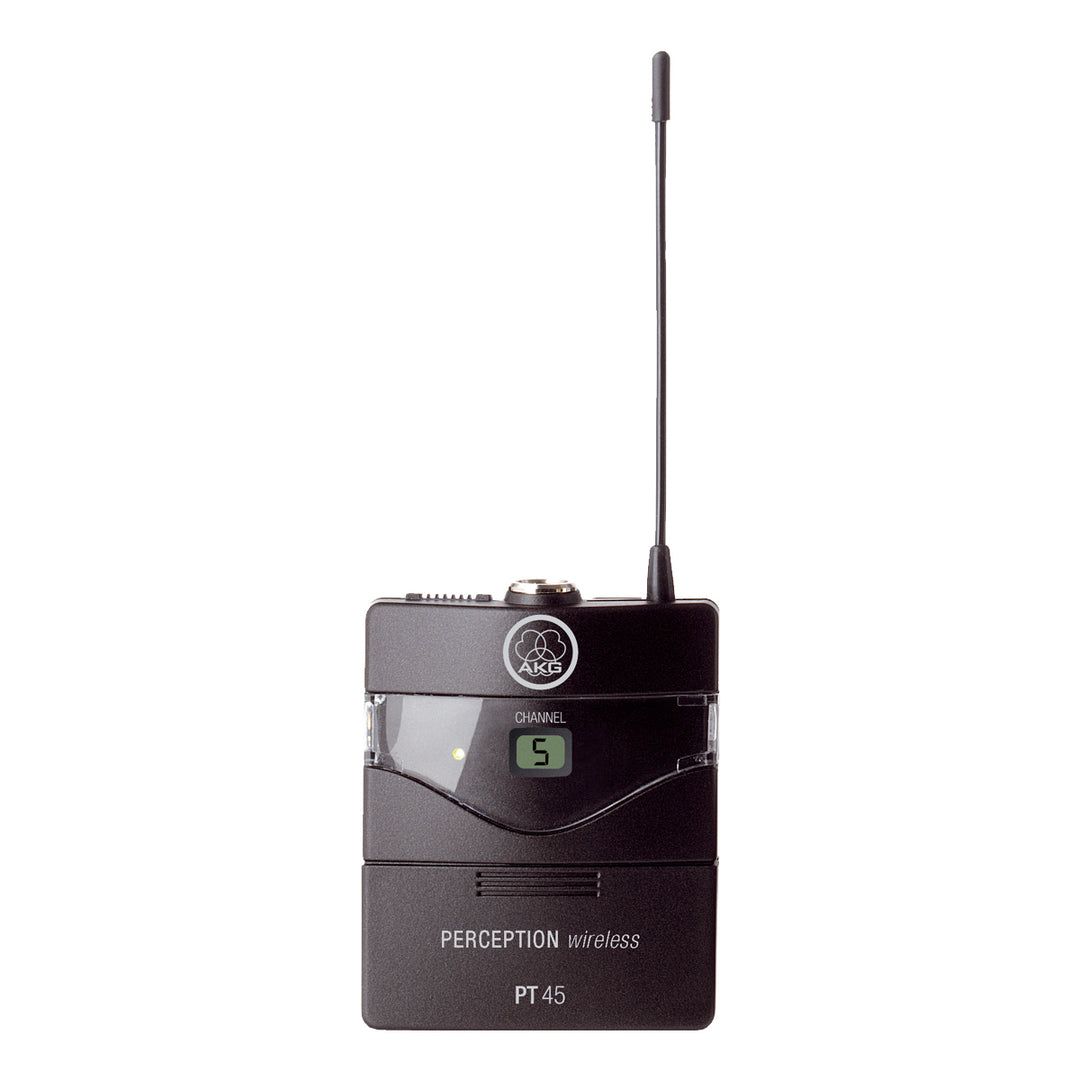

AKG PT45 Band-A High-Performance Wireless Body-Pack Transmitter

No more cables

The PT45 is an analog high-performance wireless body-pack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the body-pack compatible with all kinds of guitars, basses, instrumental pickups and headsets. It is designed for stress-free work on small stages, in houses of worship and in conference rooms. The PT45 provides a gain control for perfect adjustment of the input volume and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery goes dead, allowing the user full control of performance time. The package includes a rugged guitar cable.

Specifications:

Audio frequency bandwidth: 40 - 20000 Hz

Signal to Noise: 105 dB-A

THD at 1 kHz: 0.8 Prozent

Operating temperature range: -10 to 55 Celsius

Peak deviation: 45 kHz

Nominal deviation: 15 kHz

Transmitter Synchronization: Manual

Switching bandwidth: 30 MHz

Recommended simultaneous channels: 5

Number of selectable frequencies: 8 Fixed frequencies

Frequency Selection: Fixed frequency

Radio range (Line of sight): 30m

Switchable RF power: no

Modulation: FM (Frequency Modulation)

Encryption: No encryption

Pilot Tone: no

Dimensions (LxWxH): 60 mm x 30mm x 75.5mm

Audio Input

• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin
• Maximum audio level: 12 dB
• Rated Impedance: 1 Ohms

Battery

• Number of batteries: 1
• Operating time: 14 h

Battery 2

• Number of batteries: 1
• Operating time: 8 h

Battery 1

• Battery type: LR6 AA alkaline Battery
• Number of batteries: 1
• Operating time: 8 h
