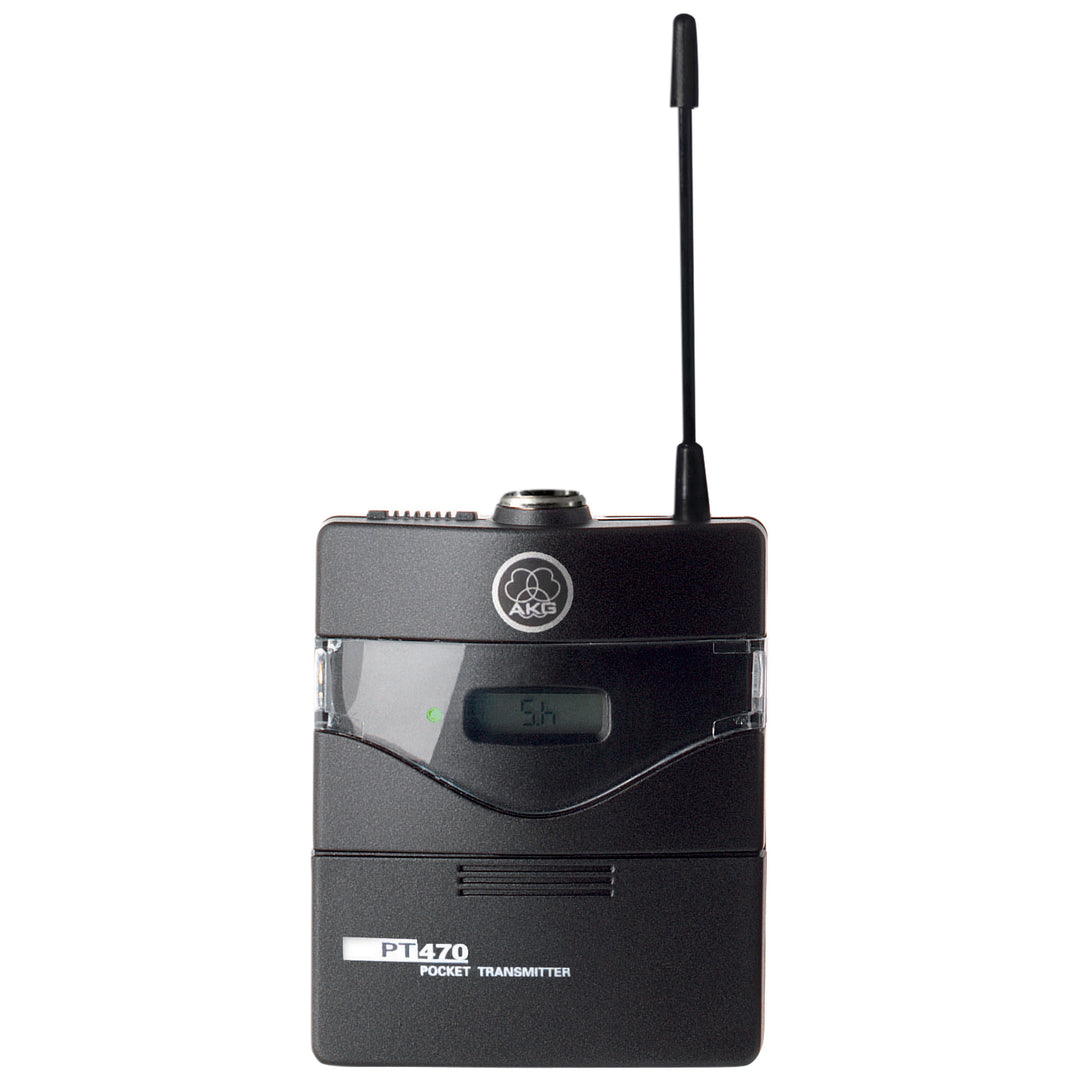

AKG PT470 Band8 50mW Professional Wireless Body-Pack Transmitter

Flexible and expandable

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter. An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

Specifications:

Audio frequency bandwidth: 35 - 20000 Hz

Signal to Noise: 120 dB-A

THD at 1 kHz: 0.7 Prozent

Peak deviation: 48 kHz

Nominal deviation: 20 kHz

Radio Output Power (min/max): 10 to 50 mW

Transmitter Synchronization: Infrared

Mute Switch Type: Jack Mono (1/4")

Mute Switch Gender: Female

Switching bandwidth: 30 MHz

Recommended simultaneous channels: 24

Number of selectable frequencies: 1220 (selectable in 25kHz steps)

Frequency Selection: Selectable frequency in 25kHz steps

Radio range (Line of sight): 100m (depending on antenna system)

Switchable RF power: no

Pilot Tone: yes

Dimensions (LxWxH): 30mm x 60mm x73.5mm

Audio Input

• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin
• Maximum audio level: 12 dB

Battery

• Battery type: FR 6 AA lithium battery
• Number of batteries: 1
• Operating time: 14h

Battery 2

• Battery type: HR 6 AA (NiHM) rechargeable battery
• Compatible Charging System: CU400
• Number of batteries: 1
• Operating time: 8h

Battery 1

• Battery type: LR6 AA alkaline Battery
• Number of batteries: 1
• Operating time: 7h
