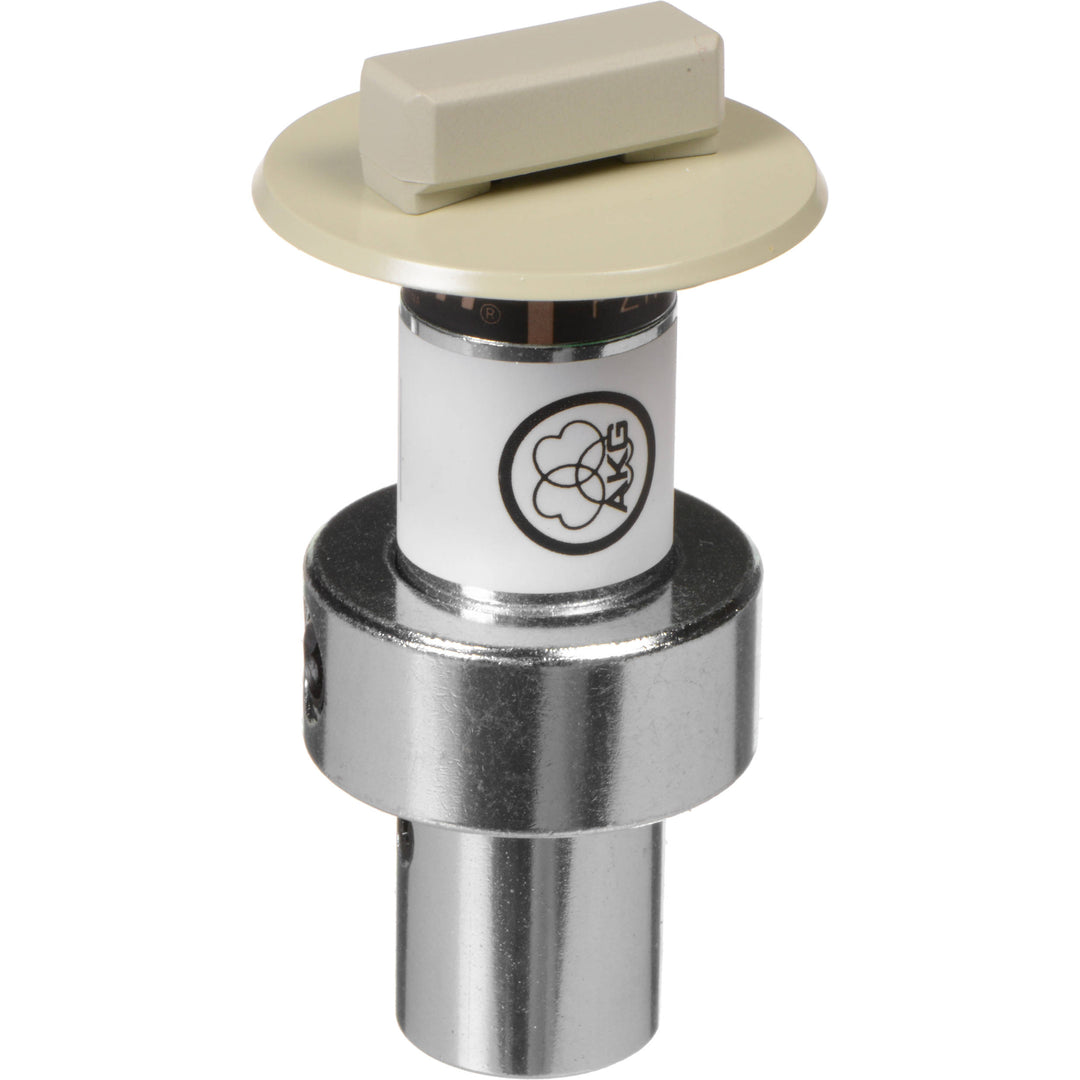

AKG PZM10 Professional Flush-Mount Boundary Layer Microphone

Inconspicuous assistant

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously. Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Specifications:

Audio frequency bandwidth: 80 - 20000 Hz

Equivalent noise level: 26 dB-A

Sensitivity: 2.5 mV/Pa

Signal to Noise: 68 dB-A

Recommended load impedance: 2000 Ohms

Dimensions

• Height: 72 mm
• Diameter: 39 mm
• Net Weight: 74 g

Off-white finish

Audio Output

• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Powering Interface

• Voltage: 12 to 48 V
