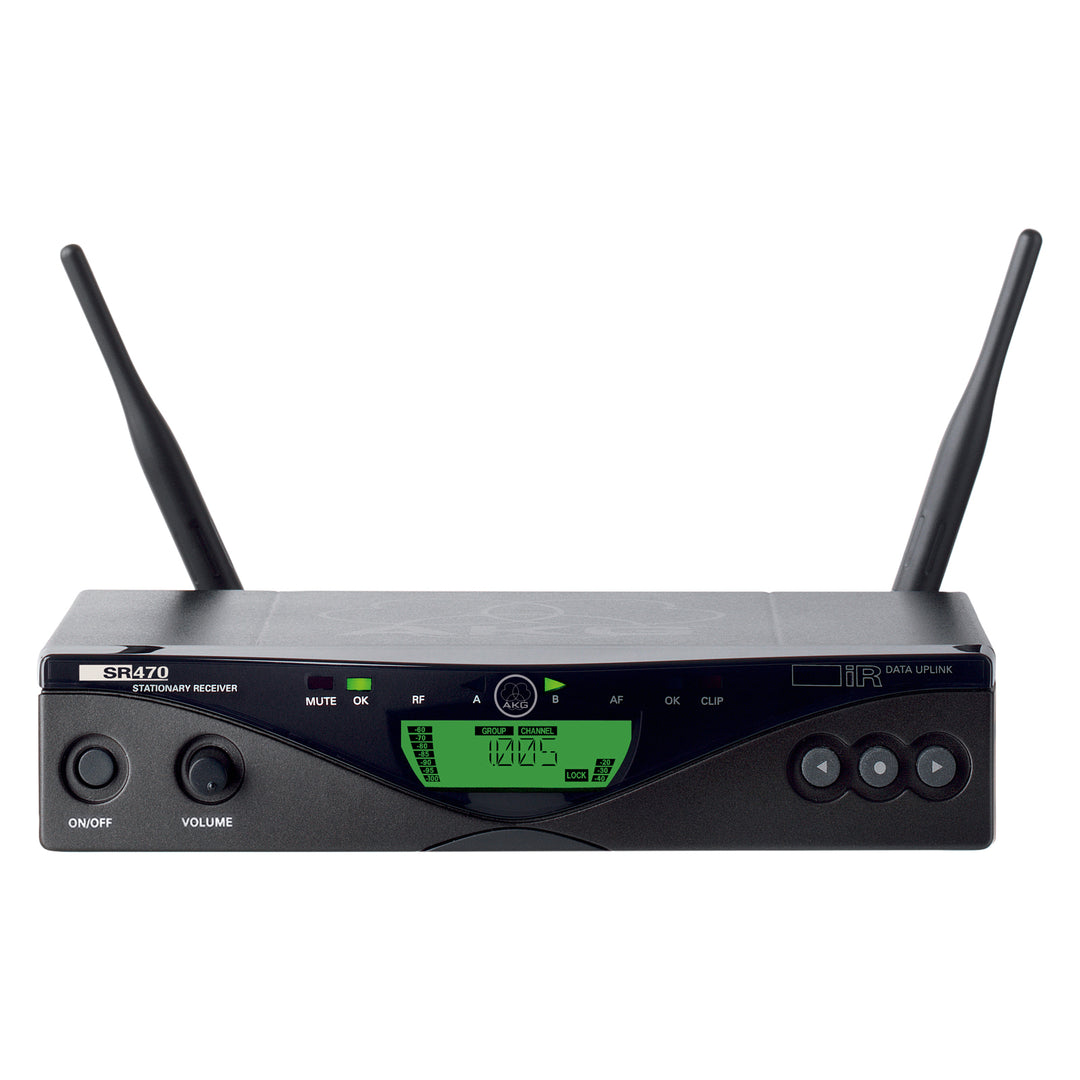

AKG SR470 Band7 Professional Wireless Stationary Receiver

Flexible and expandable

SR470 analog space diversity professional wireless receiver comes in a rugged half-rack metal housing. The enhanced Auto Setup, Environment Scan and Rehearsal mode allows a very quick and easy system setup. The programmable backlight changes color to warn the user of critical operating conditions e.g. transmitter low battery information, audio peaks, or low radio signal strength. A wide range of professional antenna splitters, power supplies, and high quality remote antennas are available to handle complex antenna systems and up to 48 simultaneous wireless channels, even with large covering area.

Specifications:

Switching bandwidth: 30.5 MHz (depending on local regulations)

Modulation: FM

Sensitivity: 6 dBµV / -100 dBm

Receiver type: Super heterodyne

Diversity system: µC controlled space diversity

Audio bandwidth: 35 to 20,000 Hz

THD at 1 kHz: <0.3%

Signal-to-noise: 120 dB(A)

Audio outputs: balanced XLR, switchable to -30 or 0 dBm ; unbalanced TS 1/4" jack

Audio output level: +9 dBu (max.)

Antenna inputs: 2x 50-ohm BNC female connectors

Transmitter battery indication: low battery

Power supply: 12 V / 500 mA DC

Dimensions: 200 x 44 x 190 mm (7.8 x 1.7 x 7.4 in.)

Weight: 972 g (2.2 lbs.)
