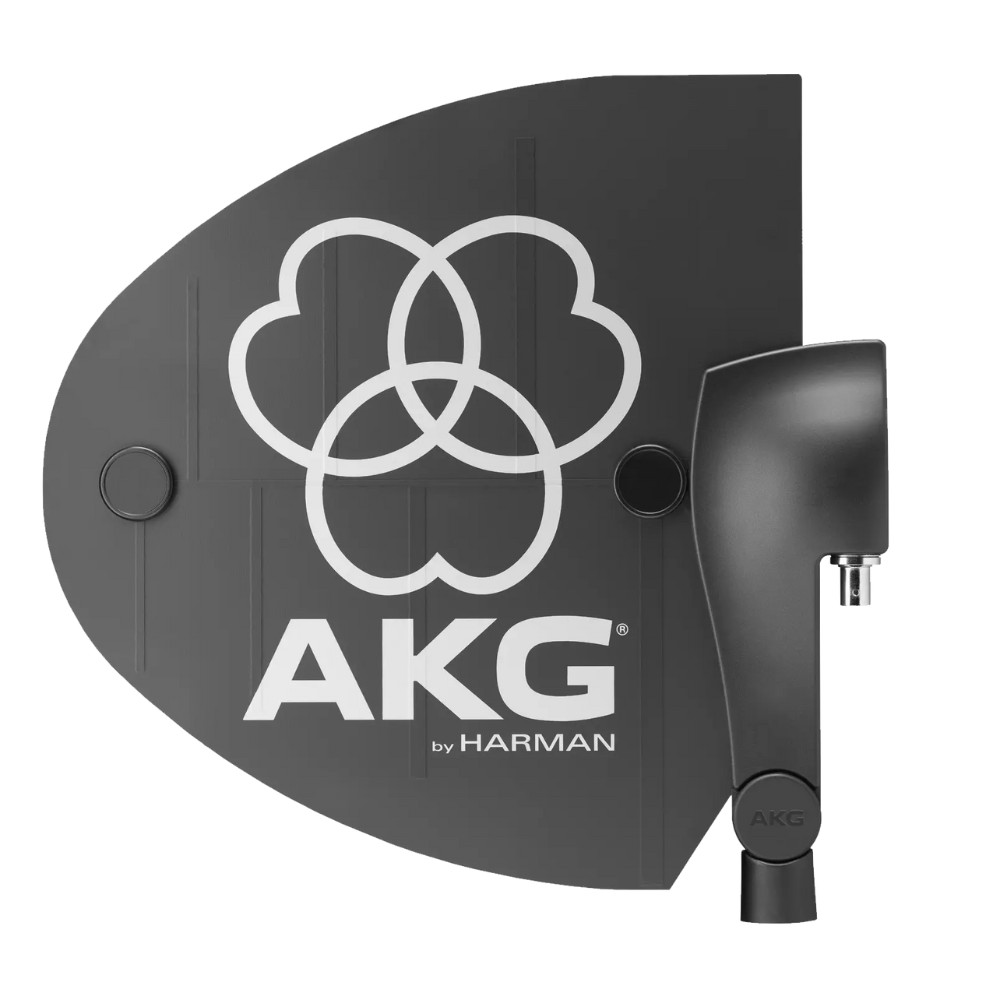

Overview of AKG SRA2-EW Passive Directional Wide-Band UHF Antenna (470 to 952 MHz)
Universal directivity
The SRA2 EW is a passive directional wide-band UHF antenna that can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470MHz to 952MHz and provides a covering angle of 70° and an antenna gain of 6dB. The SRA2 EW is built in a passive technology and requires no powering. It works for short cable lengths up to 10m and supports a professional BNC connector.
Key Features
- Works as a transmitting and receiving antenna for wireless mics and in-ear monitoring
- Passive technology requires no powering
- For short cable lengths up to 33'
- Operates in ultra-wide frequency range from 470 to 952 MHz for universal use
- 70° covering angle to reduce unwanted radio signals
- 6 dB antenna gain for long-distance applications
- Water-resistant construction to withstand extreme weather conditions
- Includes universal thread adapter to mount on floor stands with 3/8" or 5/8" screws
The antenna has a waterproof construction and can be used for indoor and outdoor applications. With the included universal thread adapter, it can be mounted on floor stands with 3/8" or 5/8" screws.
AKG SRA2 EW Specs
General
Switching Bandwidth (From/To): 470 to 952 MHz
Antenna Gain: 4.5 dBi
Covering Angle: 70°
Antenna Output
Amount: 1
Type: BNC
Gender: Female
Note: RF output (50 Ohms)
Recommended Load Impedance: 50 Ohms
Design
Body: Plastic
Finish: Black
Dimensions
9.4 x 9.1 x 1.0" / 240.0 x 230.0 x 26.0 mm
Weight
8.8 oz / 250.0 g
